Nordson Asymtek Spectrum Series Installation, Operation & Maintenance Manual page 91

8. In the Main Window, click on the

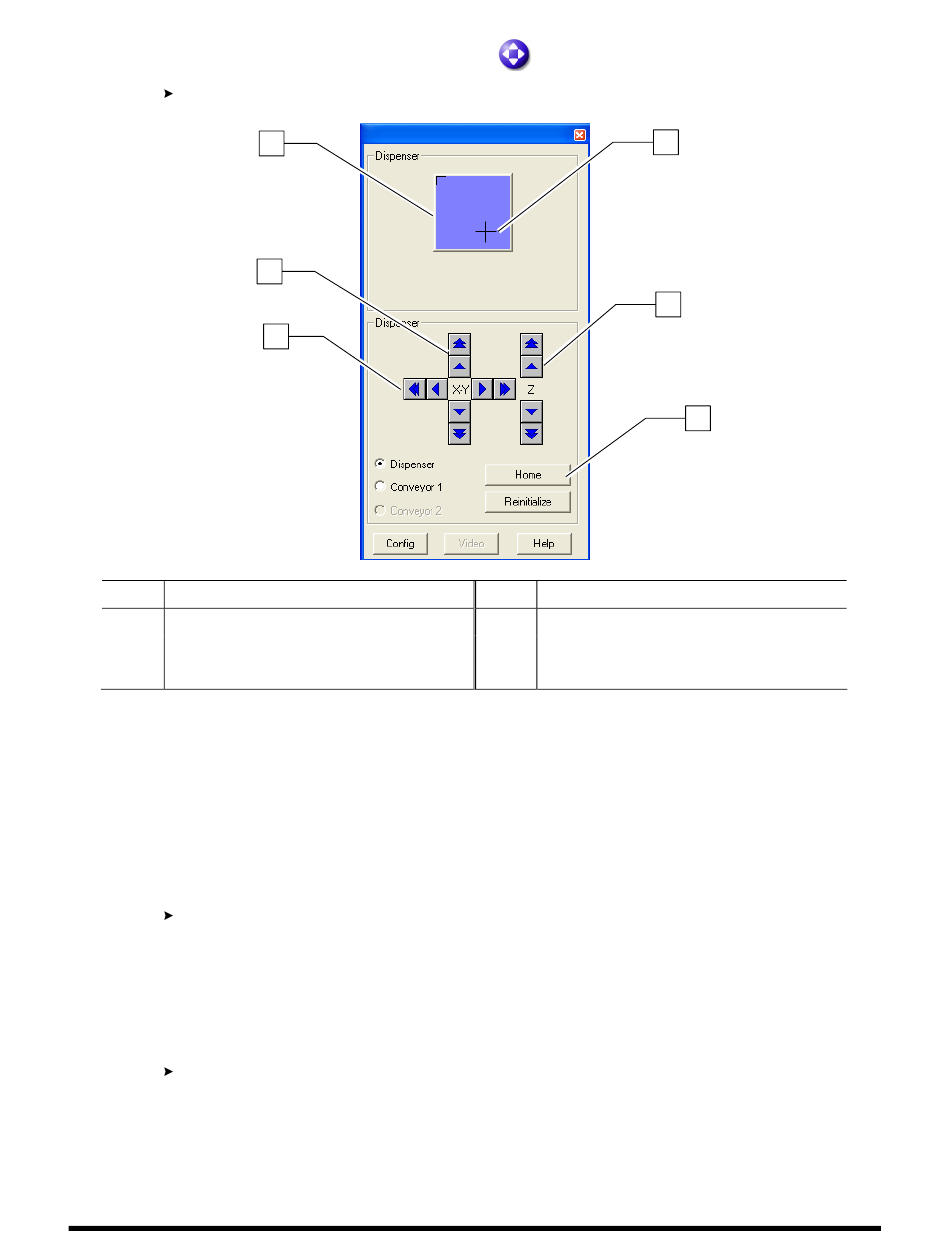

The Jog Window (Figure 4-17) opens.
Item
1 XYZ Position Indicator
2 Z-Axis Controls
3 Home Button
9. In the Jog Commands dialog box, click on
10. Using the position controls, move the height sensor probe just above the sample production
workpiece that is clamped in the dispense station.
11. Using the X- and Y-axis position controls only, move the dispensing head around the
dispensing chamber.
The dispensing valve needle tip and height sensor probe should not contact any board
sensor, stop pin, electrical line, or pneumatic line in the dispensing chamber.
12. Close the Jog Commands dialog box.
13. To retract the height sensor, repeat Steps 7.a through 7.c above and then click the button next
to
HS_PROBE_EXTEND
The height sensor probe should be in the retracted position.
Power-Up and Testing
Jog
6
5
4
Description
Figure 4-17 FmXP Jog Window
to toggle the bit
icon
.
Item
4 X-Axis Controls
5 Y-Axis Controls
6 Target Box
Dispenser.
( ).
OFF 0
1
2
3
Description
4-25
