1.10.8 Rear Panel Connections

Item Name
1 SMEMA 1 Upstream
SMEMA 1
2
Downstream
3 Loader Upstream
4 Loader Downstream
5 Network
6 SMEMA 2 Upstream
SMEMA 3
7
Downstream
1-18
1
2
Allows for SMEMA communication between the dispensing system and
an upstream machine such as a loader.
Allows for SMEMA communication between the dispensing system
and a downstream machine such as an unloader.
Allows the dispensing system to communicate with an upstream loader
for programming purposes only.
Allows the dispensing system to communicate with a downstream
unloader for programming purposes only.
Allows the dispensing system to communicate with a host computer on a
local area network. Necessary for SECS/GEM functionality.
Allows for SMEMA communication between the dispensing system and a
second upstream machine such as a loader.
Allows for SMEMA communication between the dispensing system
and a second downstream machine such as an unloader.

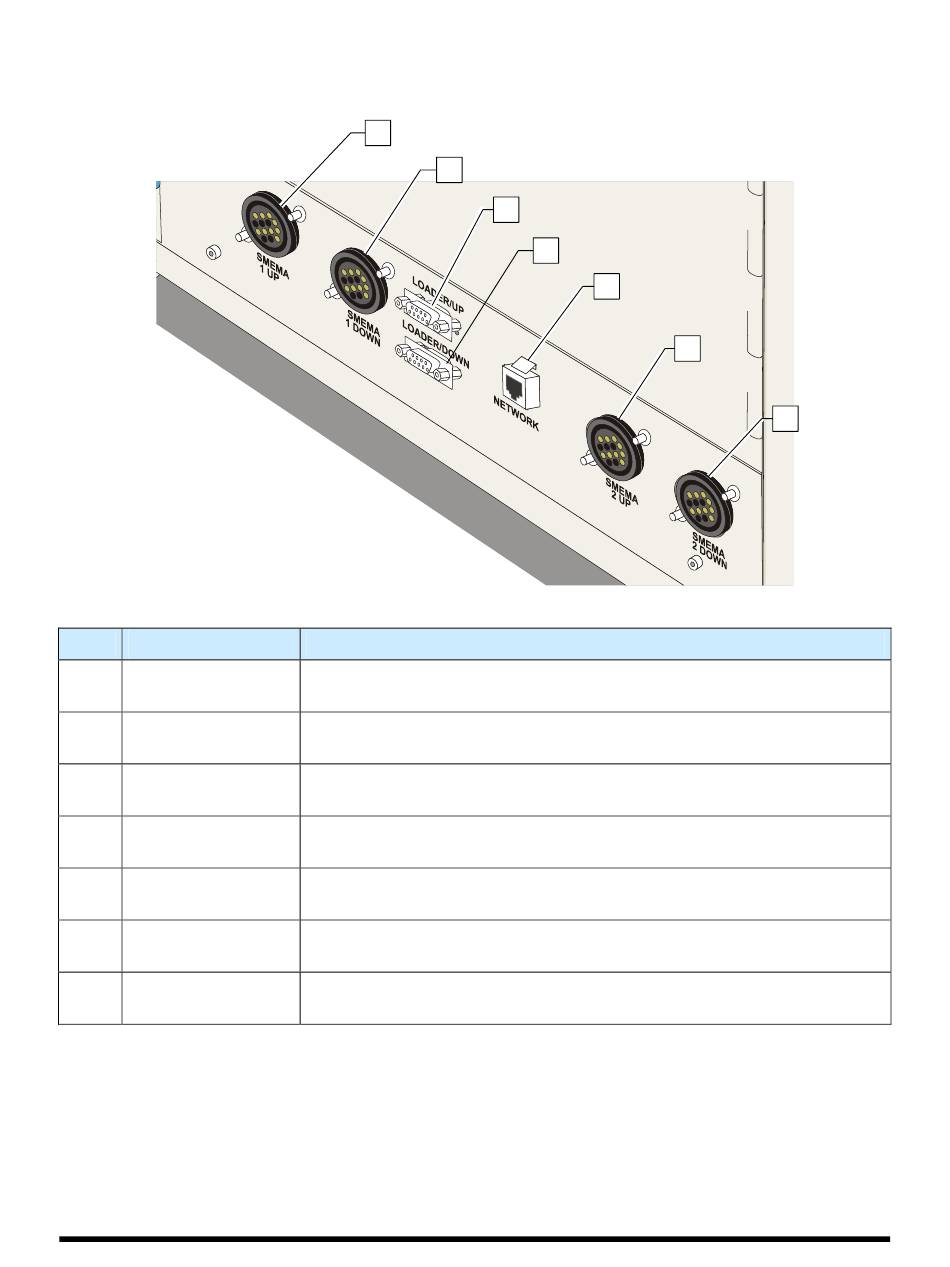

Figure 1-10 Rear Panel Connections

3
4
5
Description
6
7
Introduction
