6.5.2

Adjusting the Cooling/Coaxial, Valve, and Fluid Air Pressure

1. Locate the Cooling/Coaxial, Valve, and Fluid Pressure Regulator adjustment knobs in the
front cabinet (Figure 6-4).
TIP For accurate pressure adjustment, lower the pressure below the desired level and
2. Rotate the adjustment knob counterclockwise until the gauge registers 0 psi.
3. Rotate the adjustment knob clockwise until the associated gauge registers the air pressure
value (psi or kPa) required by your dispensing application.
NOTE Pressure settings depend on the fluid being dispensed and dispensing valve being
4. Monitor the pressure gauge on the front panel to make sure that pressure builds at a steady
rate. A drop in air pressure can indicate an air leak.
If there is an air leak, identify the source, shut off the facility air, and fix the leak before
proceeding.
2
1
Item
1 Vacuum Control Regulator
2 Cooling/Coaxial Air Regulator

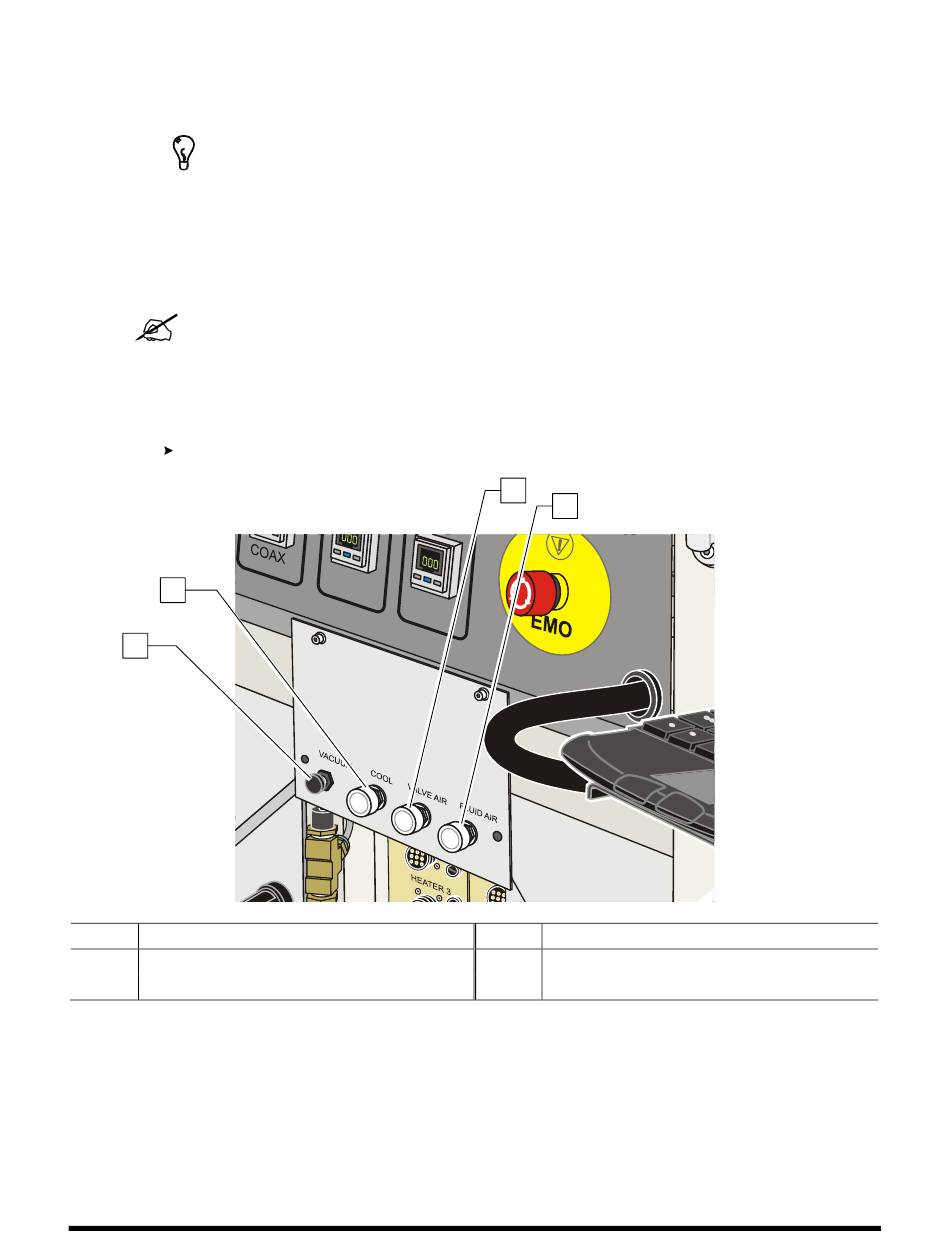

Figure 6-4 Adjusting the Valve and Fluid Pressure Regulators
Operation
then increase to the desired pressure.
used. Refer to the applicable dispensing valve manual for additional information.
Description
3
4
Item Description
3 Valve Air Regulator
4 Fluid Air Regulator
6-5
