4. Place the box level between the front and rear conveyor rails along the Y-axis (Figure 3-10).
5. Observe the position of the bubble within the level's window.
The bubble should be centered, indicating dispensing system is level from front-to-back.
6. If necessary, adjust the levelers (Figure 3-9) of the dispensing system as follows:
a. Loosen the 1 1/2-inch lock nut on the leveler.
b. Turn the 1 1/2-inch post nut in the desired direction until the level's bubble is centered,
indicating that the system is level from front-to-back.
Turning the post nut clockwise raises the dispensing system. Turning the post nut
counterclockwise lowers the dispensing system.
c. Tighten the 1 1/2-inch lock nut on the leveler.
7. Check the system for stability by putting your hands on top of the dispensing system in one
corner and pressing down. If one leveler is lower or higher than the others, the dispensing
system will rock back and forth. Adjust the levelers so that they are all bearing the weight
equally.
8. Re-level the dispensing system from side-to-side and from front-to-back, if necessary.
CAUTION!
Installation

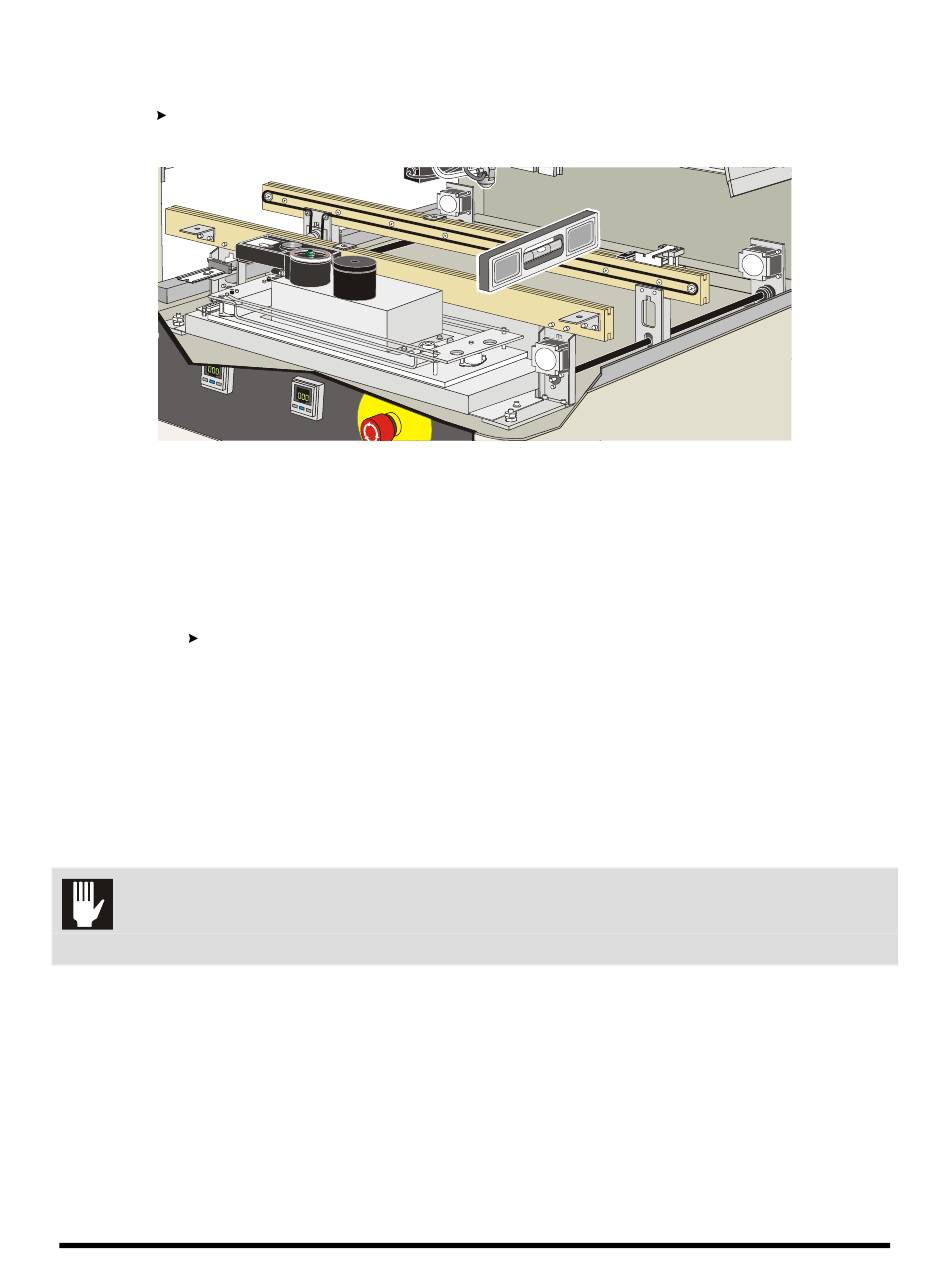

Figure 3-10 Leveling the Dispensing System – Y-Axis
The scale stem is extremely sensitive. Be careful not to hit or apply pressure to
the scale stem (Figure 3-7).
3-9
