7.10 Tensioning the Conveyor Belts

To tension the conveyor belts:
1. Perform a service shutdown as specified in
2. Loosen the belt tensioner screws (Figure 7-10).
3. Move the Motor Mount Tensioner up and down until the desired tension is obtained.
4. Tighten the tensioner screws.
5. Repeat Steps 1-3 for the other belt.
1
Item
1 Motor Mount Tensioner - Rear Rail
2 Conveyor Belt
3 Belt Drive Pulley
NOTE If the conveyor belts need to be replaced, refer to
7-14
Description

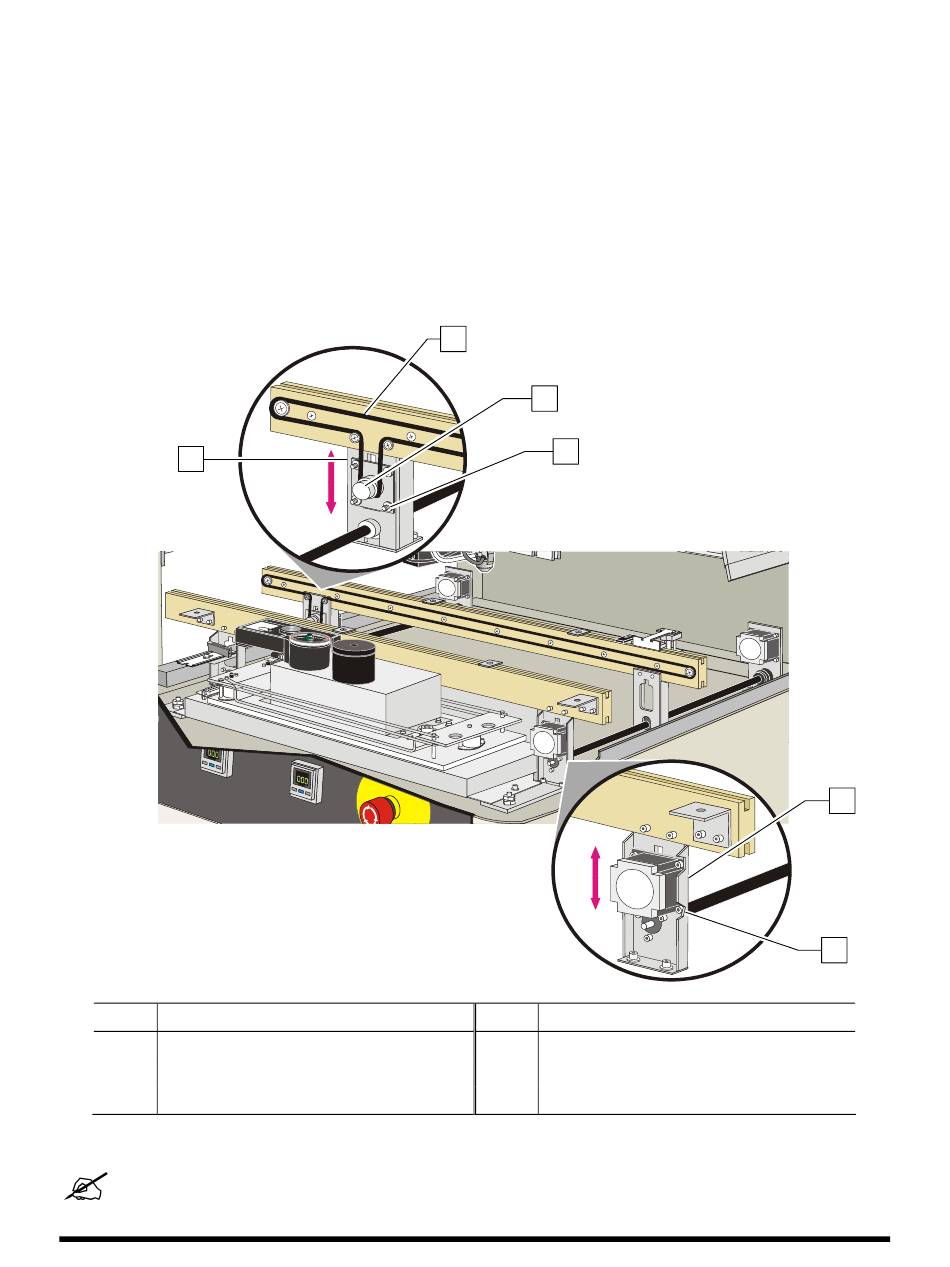

Figure 7-10 Tensioning the Conveyor Belts
2.11 Service Shutdown.
2
3
4
Item
4 Belt Tensioner Screws - Rear Rail (4)
5 Motor Mount Tensioner - Front Rail
6 Belt Tensioner Screws - Front Rail (4)
9.7 Replacing the Conveyor Belts.
Description
Maintenance
5
