5.4.3 Attaching the Support Rails

The rear panel has four holes for attaching support rails.
To attach the support rails:
1. Identify the four holes in the rear panel for the support rails (see the following figure).
2. Attach a support rail to the rear panel and fasten with a hex screw using an appropriate hex wrench.
3. Repeat Step 2 for the other three support rails.

5.4.4 Installing the 19" Vertical Extrusions

Two 19" vertical extrusions are attached to the support rails for the installation of equipment and
accessories.
To install the 19" vertical extrusions:
1. Place the extrusion at a distance of 104 mm (approx.) from the support rail edge.
2. Attach the extrusion to the upper and lower support rails with two hex screws.
ECI Telecom Ltd. Proprietary

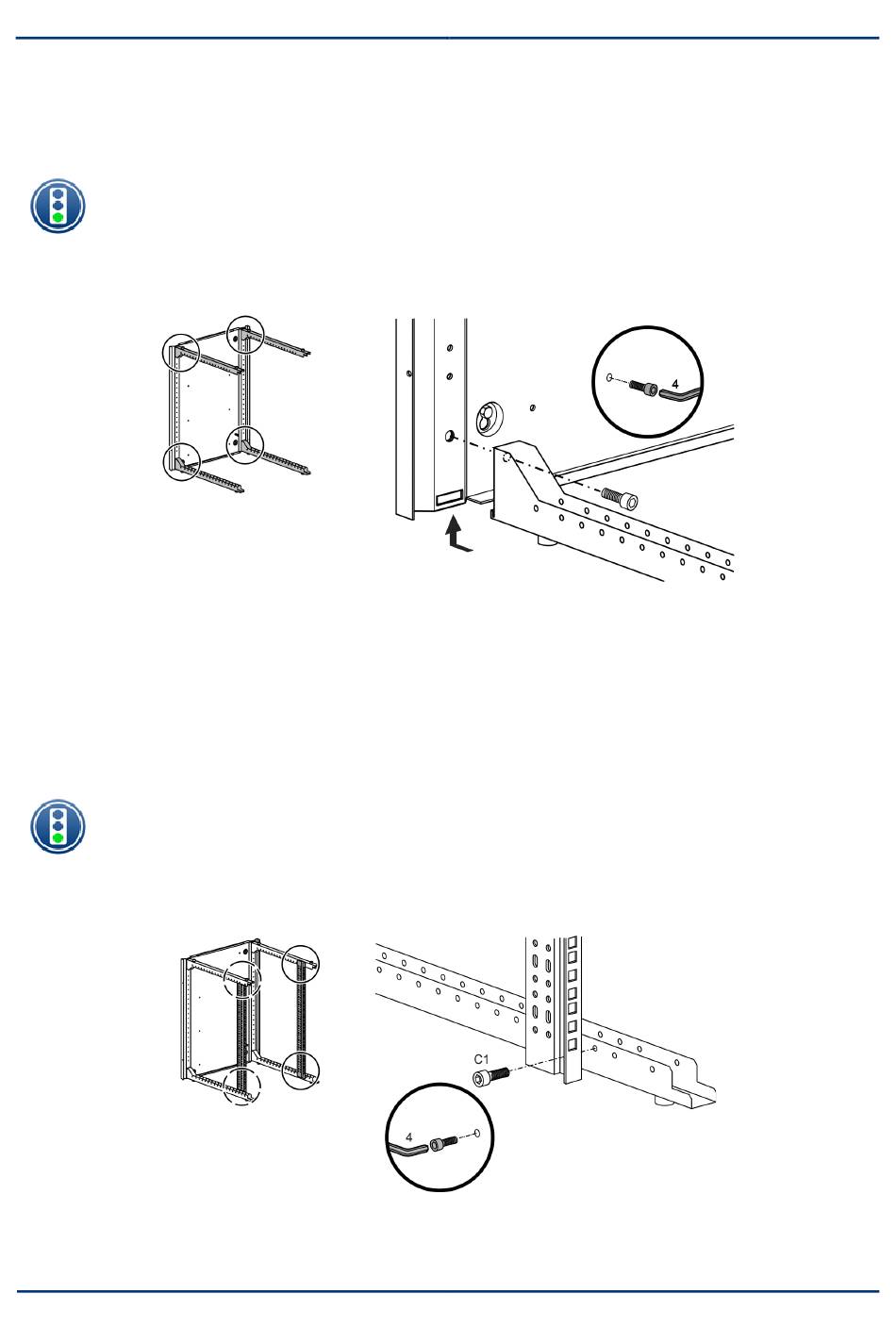

Figure 5-6: Installing the support rails

Figure 5-7: Installing the 19" vertical extrusions
