NPT-1020 Installation and Maintenance Manual
To ground the NPT-1020 shelf:
NPT-1020 shelf grounding is achieved by connecting the shelf to the rack using rack mounting

brackets. Grounding is provided by contact when the unit is fastened to the rack.

4.7.4 Installing Power Modules in the NPT-1020

Each NPT-1020 shelf must have a power module/modules installed in the power module slot(s). The power
module slots are identifies as PSA and PSB. There are several options to install power modules in these slots
as follows:
Installing an INF-B1U in slot PSA and a second one in slot PSB. This configuration supports DC power

redundancy for the NPT-1020 by connecting each module to a separate power source.
Installing an INF-B1U-24V in slot PSA and a second one in slot PSB. This configuration supports DC

power redundancy for the NPT-1020 by connecting each module to a separate power source.
Installing one INF-B1U-D module. This module occupies both PAS and PSB slots. DC power

redundancy is supported by connecting each input power connector on the INF-B1U-D to a separate
source.
Installing one AC_PS-B1U module. This module occupies both PAS and PSB slots and provides AC input

power support.
The following sections describe the installation procedures for each of the options.
The NPT-1020 is always shipped with power module/modules installed. The procedure described in this
section is therefore only relevant when you want to replace the power module.
4.7.4.1 Installing an INF-B1U
For DC power redundancy, the NPT-1020 platform must have two INF-1BU modules installed in the power
module slots, and is always shipped with power modules already installed. The following procedure
therefore describes replacing the power module.
ECI Telecom Ltd. Proprietary

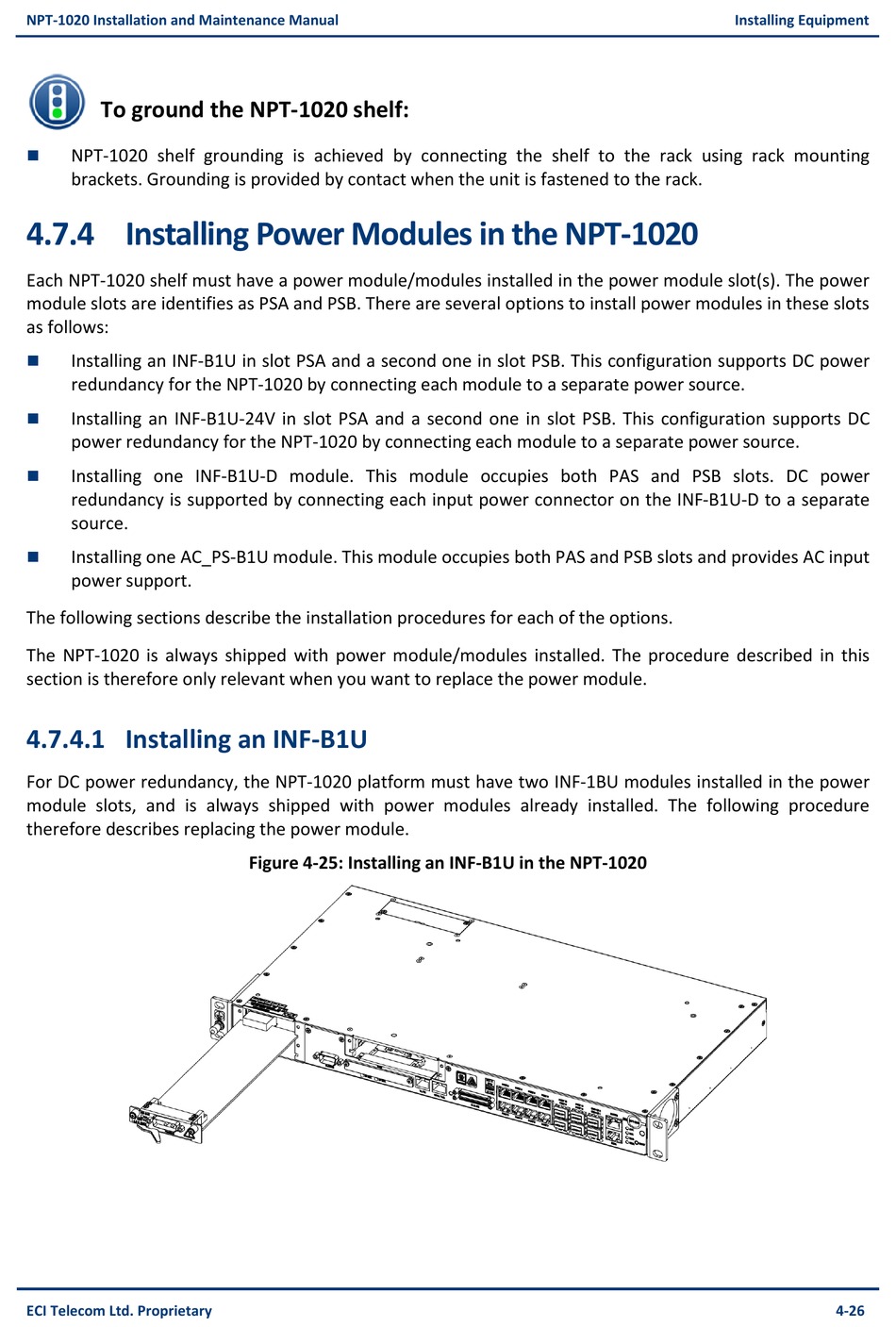

Figure 4-25: Installing an INF-B1U in the NPT-1020

Installing Equipment
4-26
