NPT-1020 Installation and Maintenance Manual

5.14.2 Attaching the Fiber Guide Tube

The fiber guide tube facilitates fiber routing in the frame. It is attached to the right side of the frame and
fastened to the cable supports.
To attach the fiber guide tube:
1. Identify the fiber guide tube attachment points according to the following figure.
2. Attach one end of the fiber guide tube with a cable tie to the lower cable support near the front of
the frame.
3. Shape the tube as shown in the figure, and attach it to the lower cable support (near the rear of the
frame) with a cable tie.
4. Attach the tube to the upper cable support (near the rear of the frame) with a cable tie.

5.14.3 Preparing Installation Holes

The wall-mounted frame needs four installation holes.
To prepare the installation holes:
1. Place the wall-mounted frame on the prescribed location on the wall. Make sure that the wall surface
is flat and even.
2. Use the frame as a template and mark the required holes through the frame.
You can use the dimensions (in mm) in the following figure as reference.
3. Drill four holes in the wall according to the markings.
ECI Telecom Ltd. Proprietary

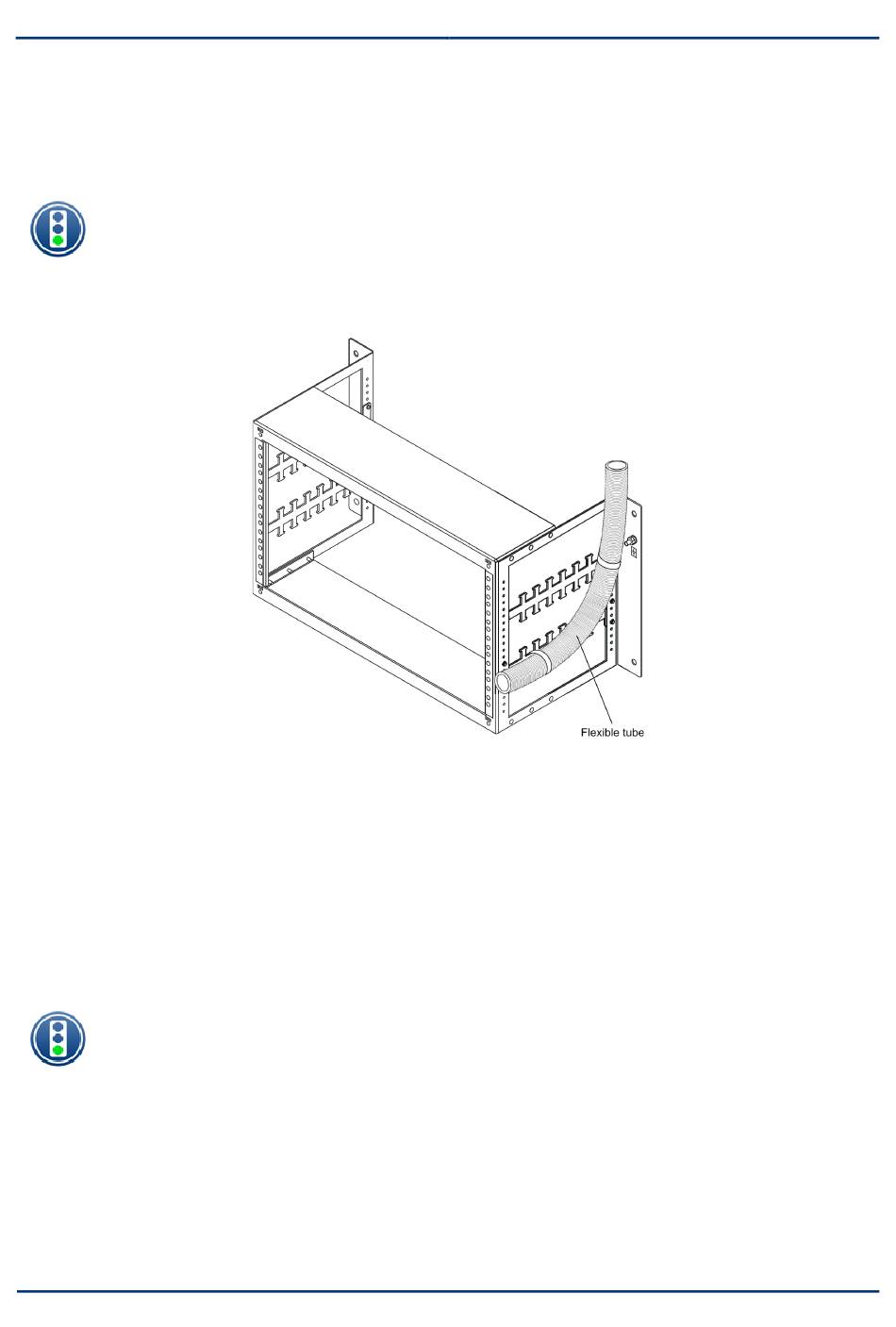

Figure 5-27: Attaching the fiber guide tube

NPT-1020 Wall-Mounted Installations
5-31
