NPT-1020 Installation and Maintenance Manual
W
ARNING: To reduce the risk of exposure to hazardous radiation, note the following:
When performing maintenance and other activities on equipment using lasers, it is

recommended that you use protection goggles for the wavelength range of 1300 nm to
1600 nm.
Only authorized personnel must carry out hot insertion or swapping of an optical module

or optical interface module.
To prevent irremediable damage to your eyes, avoid looking into the fiber when

hot-removing and/or inserting a fiber termination.
Place plastic covers on module fiber ports and fiber terminations that are not currently in

use.
Do not operate controls, make adjustments, or perform procedures associated with the

laser device other than those specified herein.
It is strictly forbidden to interfere with any protective devices and interlocks that are used to
prevent direct exposure to the laser beam.

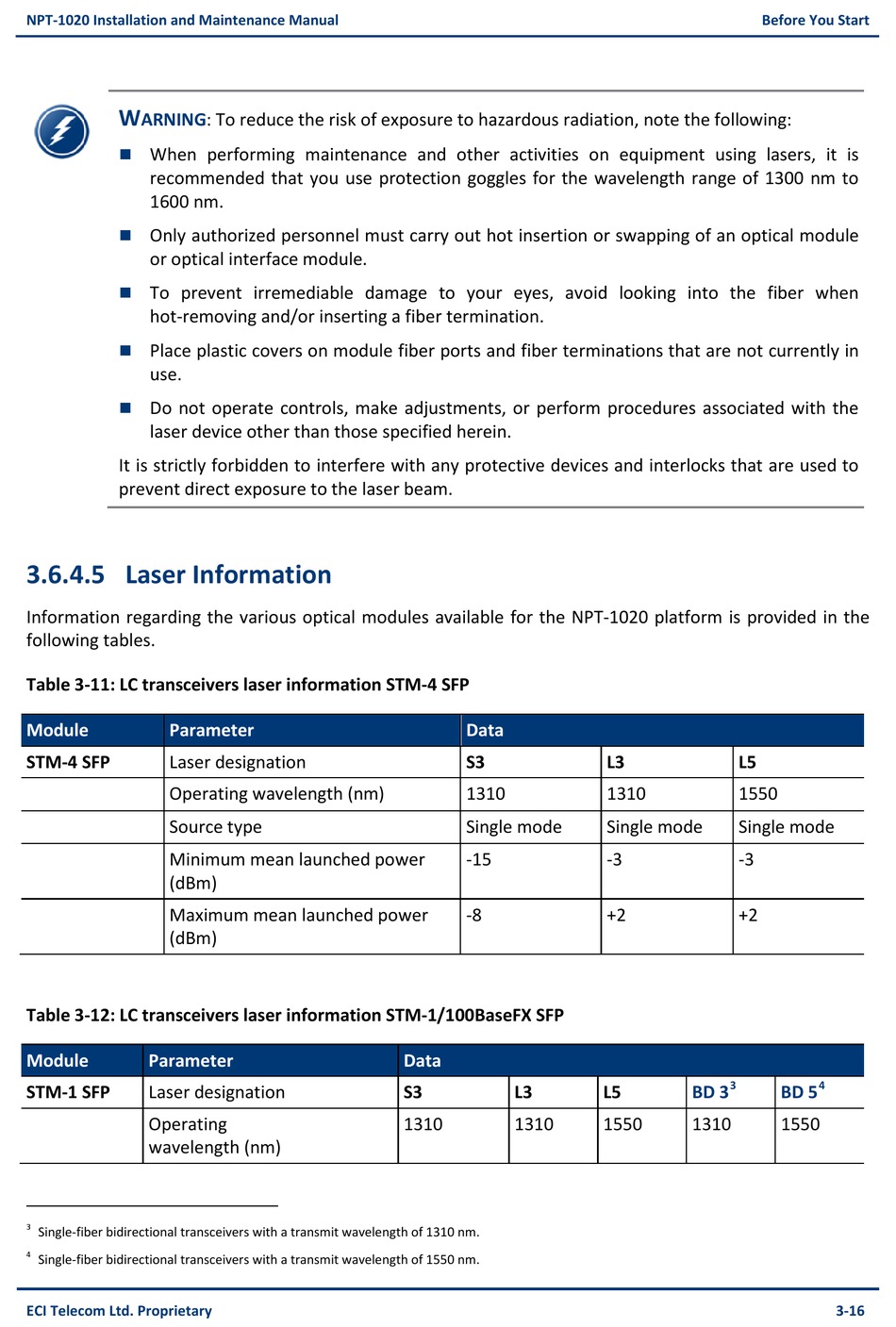

3.6.4.5 Laser Information
Information regarding the various optical modules available for the NPT-1020 platform is provided in the
following tables.

Table 3-11: LC transceivers laser information STM-4 SFP

Module Parameter
STM-4 SFP Laser designation
Operating wavelength (nm)
Source type
Minimum mean launched power
(dBm)
Maximum mean launched power
(dBm)

Table 3-12: LC transceivers laser information STM-1/100BaseFX SFP

Module Parameter
STM-1 SFP Laser designation
Operating
wavelength (nm)
3
Single-fiber bidirectional transceivers with a transmit wavelength of 1310 nm.
4
Single-fiber bidirectional transceivers with a transmit wavelength of 1550 nm.
ECI Telecom Ltd. Proprietary
Data
S3
1310
Single mode
-15
-8
Data
S3 L3
1310 1310
Before You Start
L3 L5
1310 1550
Single mode Single mode
-3 -3
+2 +2
3
L5 BD 3
1550 1310
4
BD 5
1550
3-16
