The wall-mounted cabinet interior components are shown in the following figure.

5.4.1 Preparing the Rear Panel Holes

To prepare the rear panel holes:
1. Identify the prescribed location of the rear panel on the wall.
N
OTE: Make sure that the wall surface on which the cabinet is mounted is completely flat, so
that the front door opens and closes properly.
ECI Telecom Ltd. Proprietary

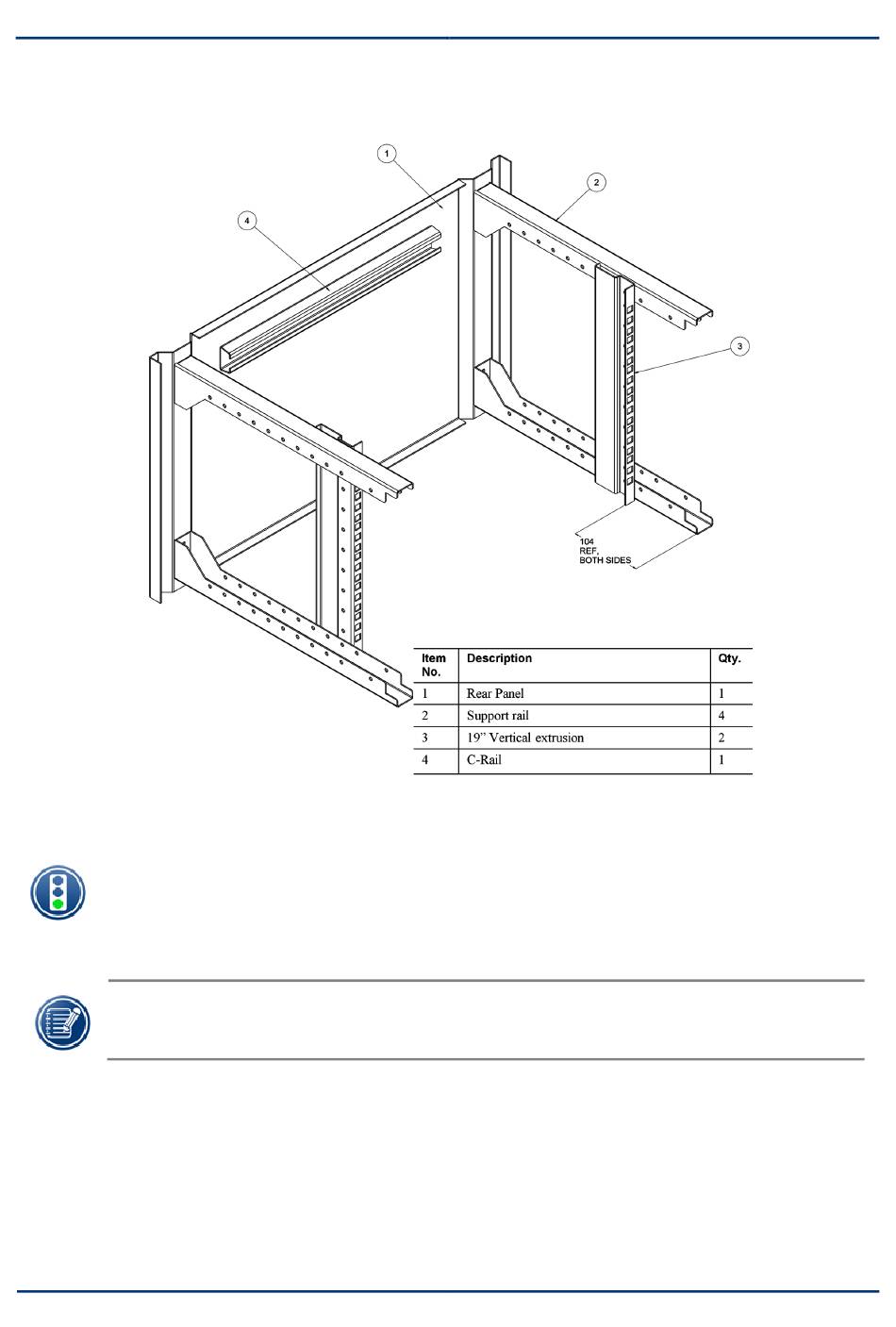

Figure 5-2: Wall-mounted cabinet interior components

NPT-1020 Wall-Mounted Installations
