4.7.4.4 Installing an AC_PS-B1U
The PSA and PSB slots in the NPT-1020 can be used to install an AC_PS-B1U module to support AC power
feed. When delivered with an AC_PS-B1U module these slots are empty (covered by blank panels) and the
module must therefore be installed in the field according to the site installation plan.
To install an AC_PS-B1U in the NPT-1020 platform:
1. Check that the module has not been physically damaged during shipment, and that the antistatic
protection bag of the original packaging is sealed.
2. Remove the module from its antistatic protection packaging and perform a visual inspection to detect
damage during shipping. Report any problems.
3. Hold the AC_PS-B1U module extractor and insert the rear end of the module into the card guides.
4. Push the module in until the panel at the front of the module is flush with the front of the NPT-1020
platform. If resistance is felt before the connectors are flush, pull the module out and repeat the
procedure.
5. Secure the module in place by tightening its two captive screws.

4.7.5 Installing Tslot Modules

This section describes the installation process for Tslot modules. For a list of available Tslot modules and
their technical descriptions, refer to the NPT Product Line Reference Manual.
The NPT-1020 is shipped with the Tslot covered by a blank panel. You will have to remove this cover to
install a module in it.
ECI Telecom Ltd. Proprietary

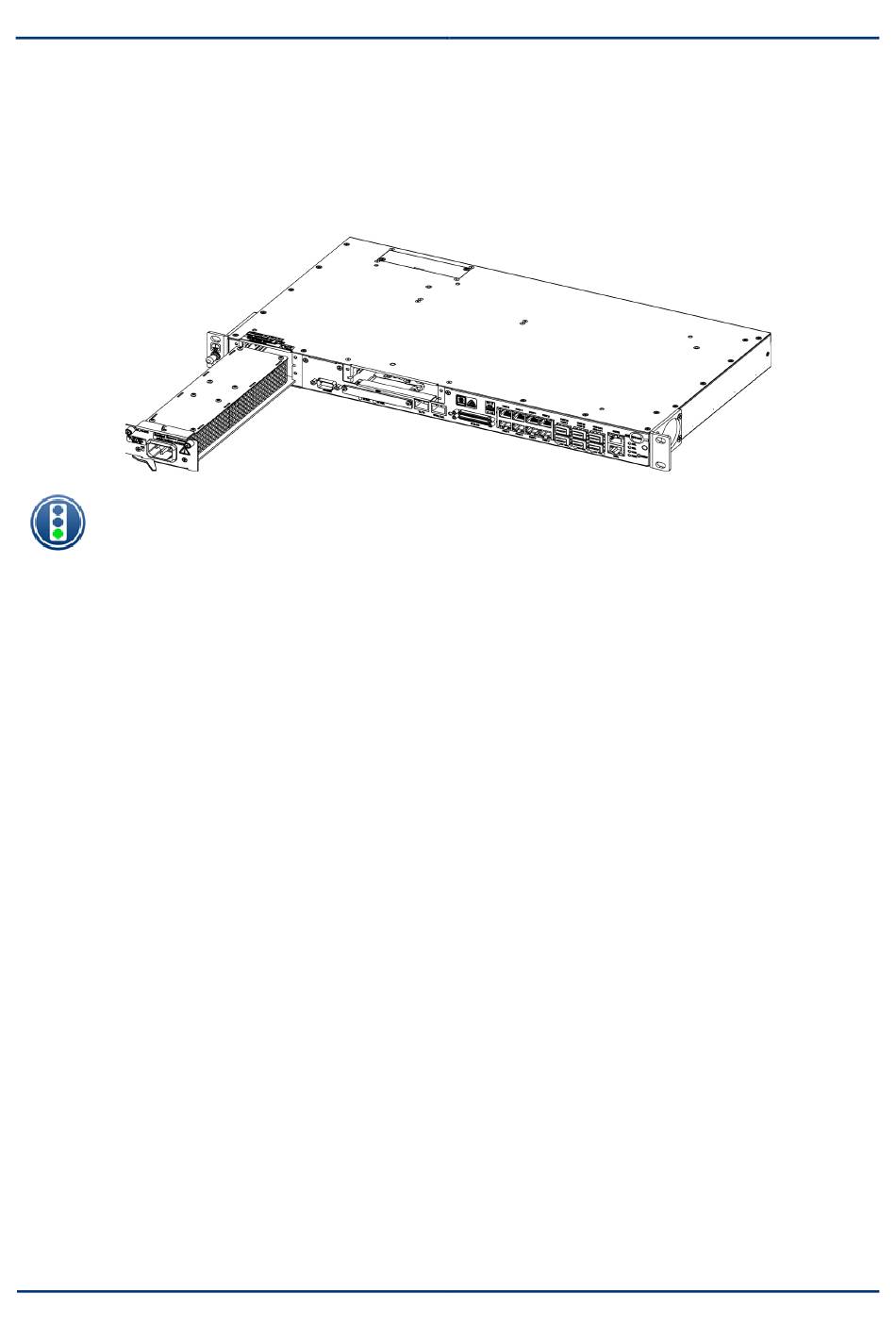

Figure 4-28: Installing an AC_PS-B1U in the NPT-1020
