NPT-1020 Installation and Maintenance Manual
3. Fasten the extrusion with the screws using a hex wrench.
4. Repeat Steps 2 and 3 for the second extrusion.

5.4.5 Installing the C-Rail

A C-rail (so called because of its C shape) is attached to the upper side of the rear panel. The C-Rail helps
support various cabling accessories.
To install the C-rail:
1. Identify the two holes for mounting the C-rail on the rear panel.
2. Place the C-rail on the rear panel. Insert a flat washer and a hex screw in the appropriate hole and
fasten the C-rail.
3. Repeat Step 2 for the second hole of the C-rail.
5.5

Installing Cabling Accessories

Several accessories are installed inside the cabinet to facilitate cable and fiber routing and to ground it.
They include:
Cable guides

Cable clamping bars

Fiber optic protective tube

Grounding cables

ECI Telecom Ltd. Proprietary

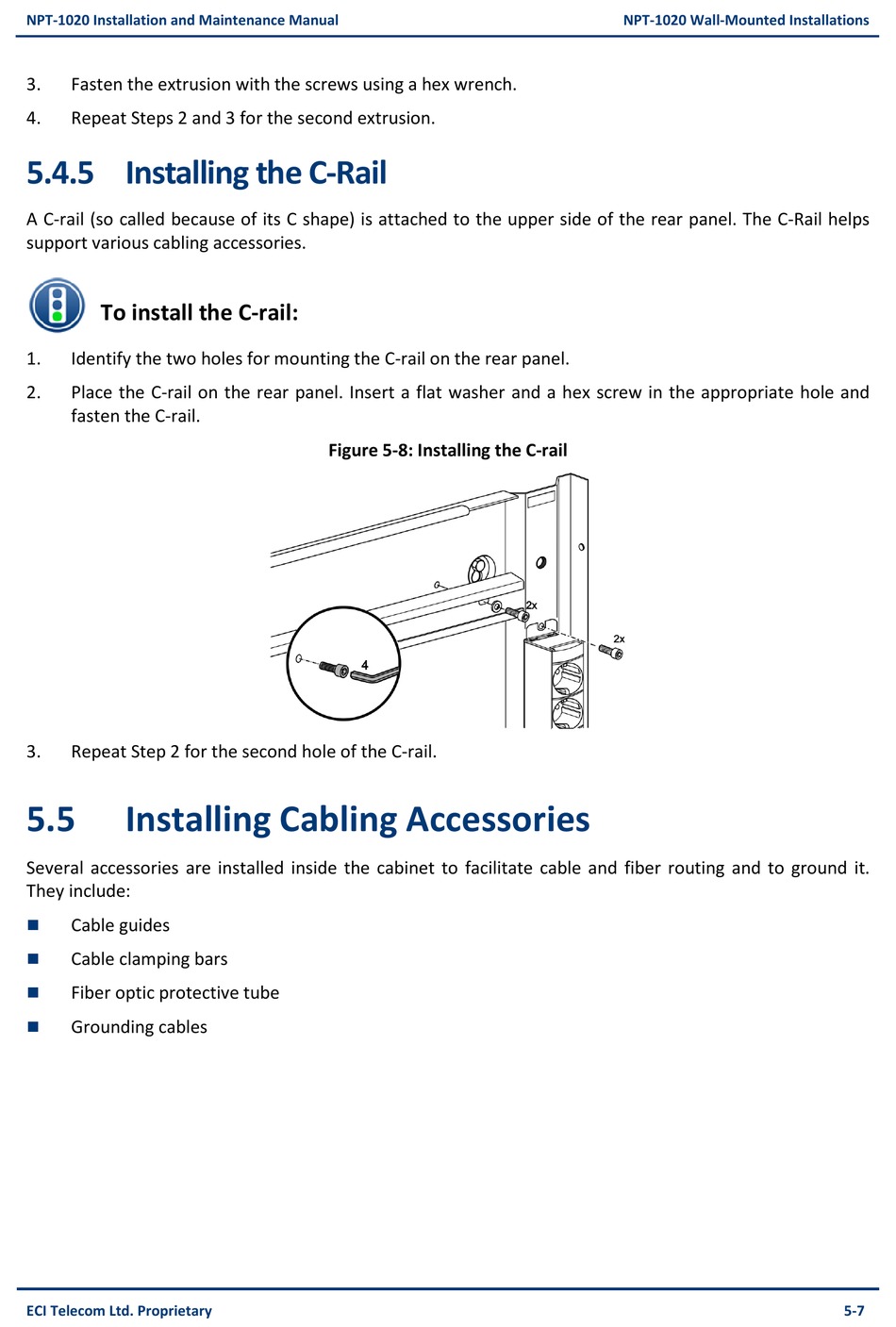

Figure 5-8: Installing the C-rail

NPT-1020 Wall-Mounted Installations
5-7
