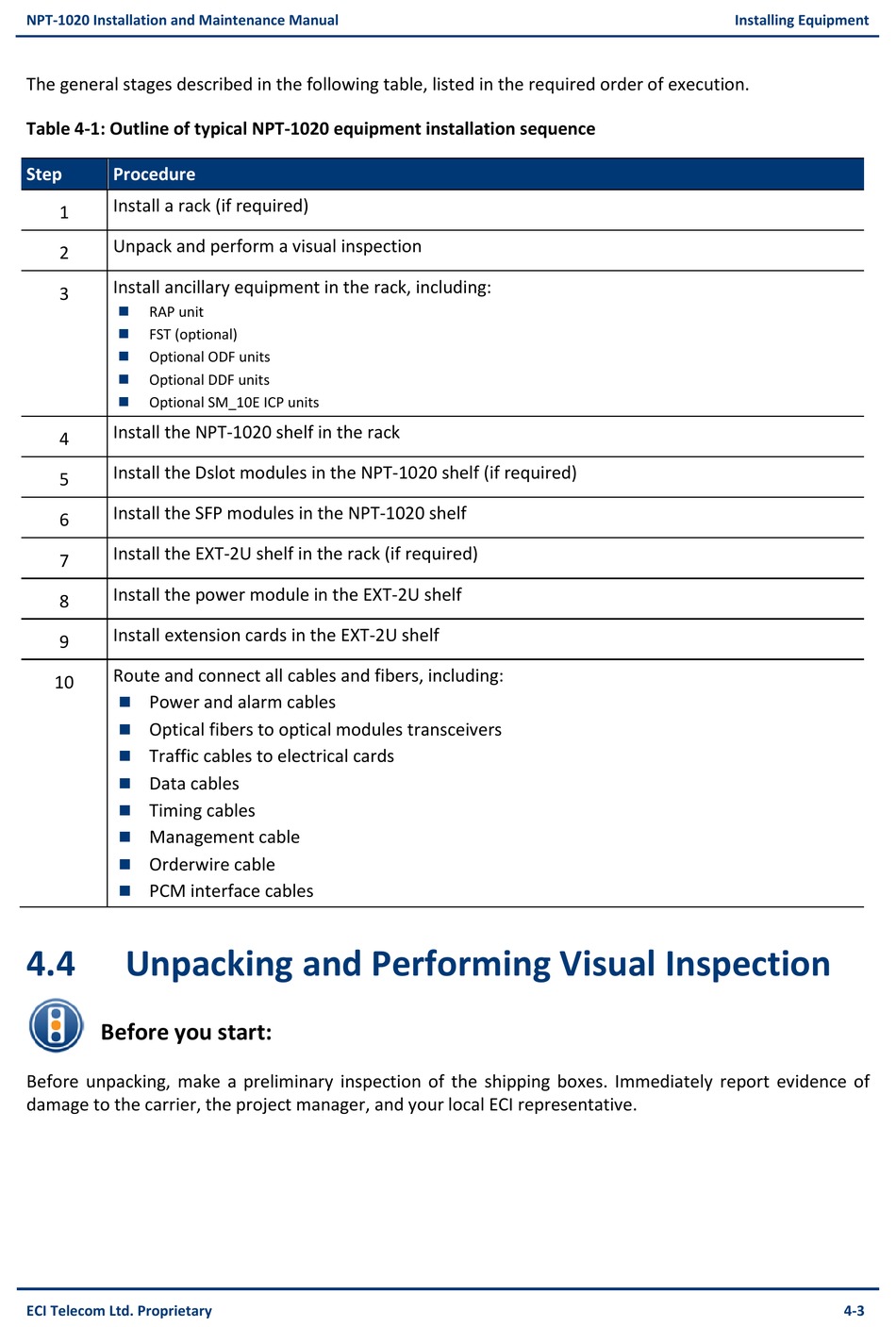

The general stages described in the following table, listed in the required order of execution.

Table 4-1: Outline of typical NPT-1020 equipment installation sequence

Step Procedure
Install a rack (if required)
1
Unpack and perform a visual inspection
2
Install ancillary equipment in the rack, including:
3
RAP unit

FST (optional)

Optional ODF units

Optional DDF units

Optional SM_10E ICP units

Install the NPT-1020 shelf in the rack
4
Install the Dslot modules in the NPT-1020 shelf (if required)
5
Install the SFP modules in the NPT-1020 shelf
6
Install the EXT-2U shelf in the rack (if required)
7
Install the power module in the EXT-2U shelf
8
Install extension cards in the EXT-2U shelf
9
Route and connect all cables and fibers, including:
10
Power and alarm cables

Optical fibers to optical modules transceivers

Traffic cables to electrical cards

Data cables

Timing cables

Management cable

Orderwire cable

PCM interface cables

4.4

Unpacking and Performing Visual Inspection

Before you start:
Before unpacking, make a preliminary inspection of the shipping boxes. Immediately report evidence of
damage to the carrier, the project manager, and your local ECI representative.
