NPT-1020 Installation and Maintenance Manual
To install the left side cover:
1. Slide the left side cover into place while inserting the two protrusions on the cover into the opposite
housing on the rear panel (see the figure
2. Fasten the left side cover to the top and bottom covers with two Phillips screws (J2), one on each
side.
3. Attach the corresponding grounding cable snap lug to the left side cover.

5.12.3 Installing the Front Door

To install the front door:
1. Slide the door upper hinge into the corresponding slot in the top cover (see the following figure).
2. Align the door lower hinge into the corresponding slot in the bottom cover.
3. Adjust the door to open and close freely.
4. Fasten the upper and lower hex screws with a hex wrench.
5. Attach the corresponding grounding cable snap lug to the door (see the following figure).
ECI Telecom Ltd. Proprietary

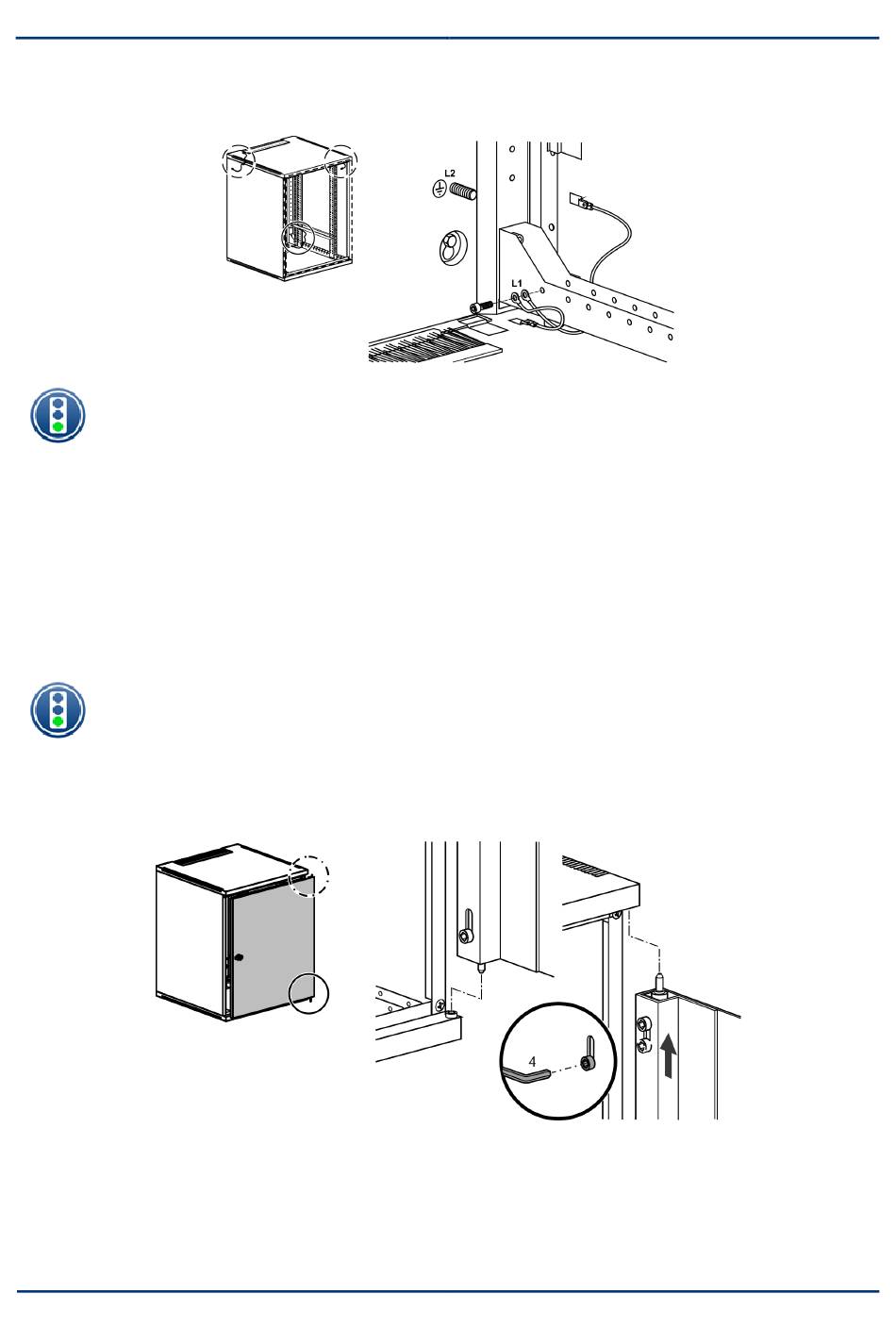

Figure 5-23: Connecting grounding cables

Installing side

Figure 5-24: Installing the front door

NPT-1020 Wall-Mounted Installations
covers).
5-28
