NPT-1020 Installation and Maintenance Manual
To install the top cover:
1. Slide the top cover while inserting the two protrusions on the cover into the opposite housing on the
rear panel (see the figure
2. Fasten the top cover to the upper support rails with four self-tapping screws (F2) (two on each side).
3. Attach the corresponding grounding cable snap lug to the top cover.

5.12.2 Installing the Side Covers

To install the right side cover:
1. Slide the right side cover into place while inserting the two protrusions on the cover into the opposite
housing on the rear panel (marked J1 in the following figure).
2. Fasten the right side cover to the top and bottom covers with two Phillips screws (J2), one on each
side.
3. Attach the corresponding grounding cable snap lug to the right side cover (see the following figure).
ECI Telecom Ltd. Proprietary

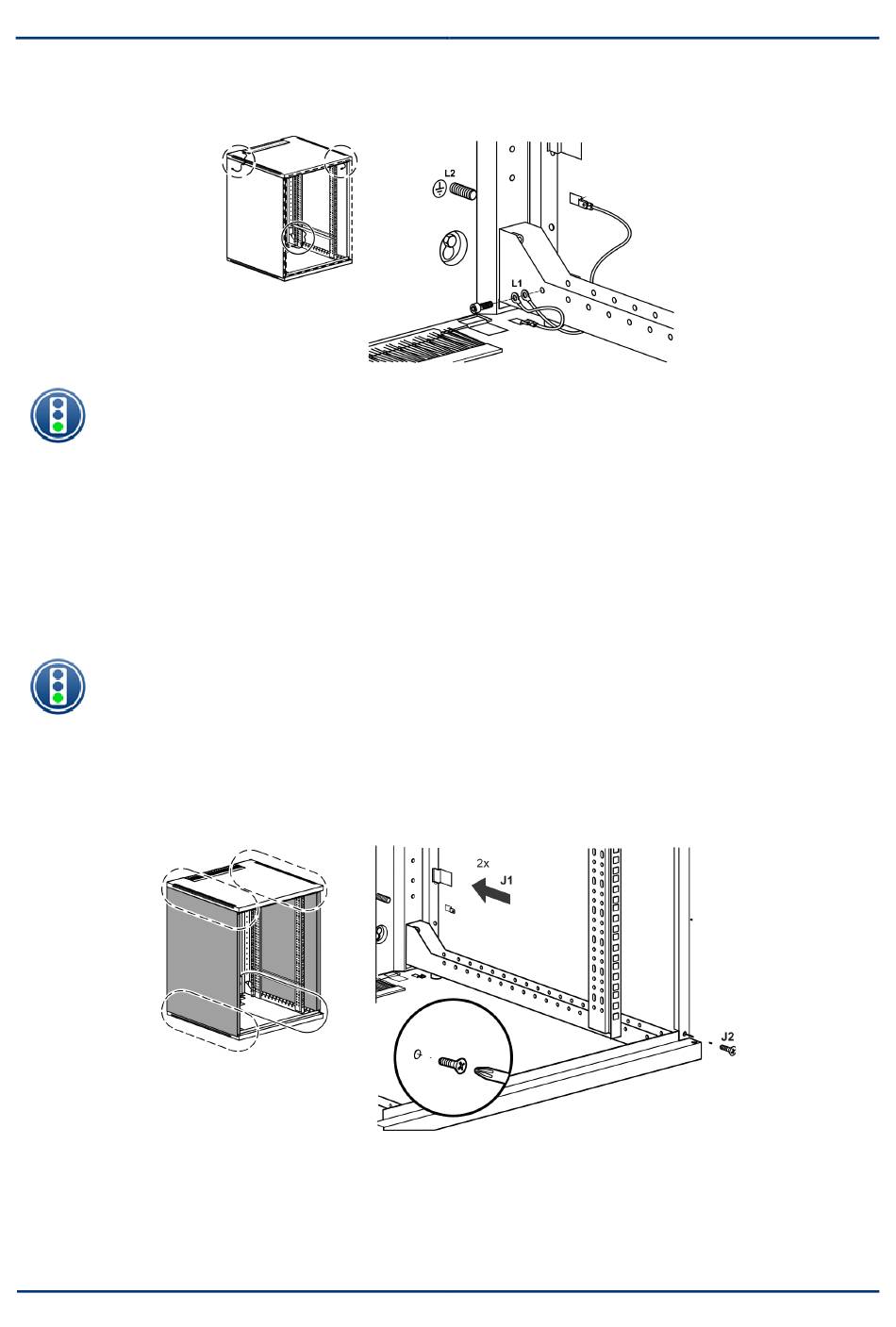

Figure 5-21: Connecting grounding cables

Installing top and bottom

Figure 5-22: Installing side covers

NPT-1020 Wall-Mounted Installations
covers).
5-27
