NPT-1020 Installation and Maintenance Manual
The following sections provide detailed descriptions of cable and fiber connection and routing.

5.10.1 Connecting Power Cables

The power cables are connected to the corresponding connectors on the NPT-1020 platform.
N
OTE: To facilitate power cable routing, it is recommended to start from the NPT-1020
platform towards the power source.
To connect power cables:
1. Connect the connector at the end of the power cable to the power connector on the NPT-1020, and
fasten it with its two screws.
2. Grasp the connector at the other end of the power cable, and thread it through the space beneath
the platform.
ECI Telecom Ltd. Proprietary

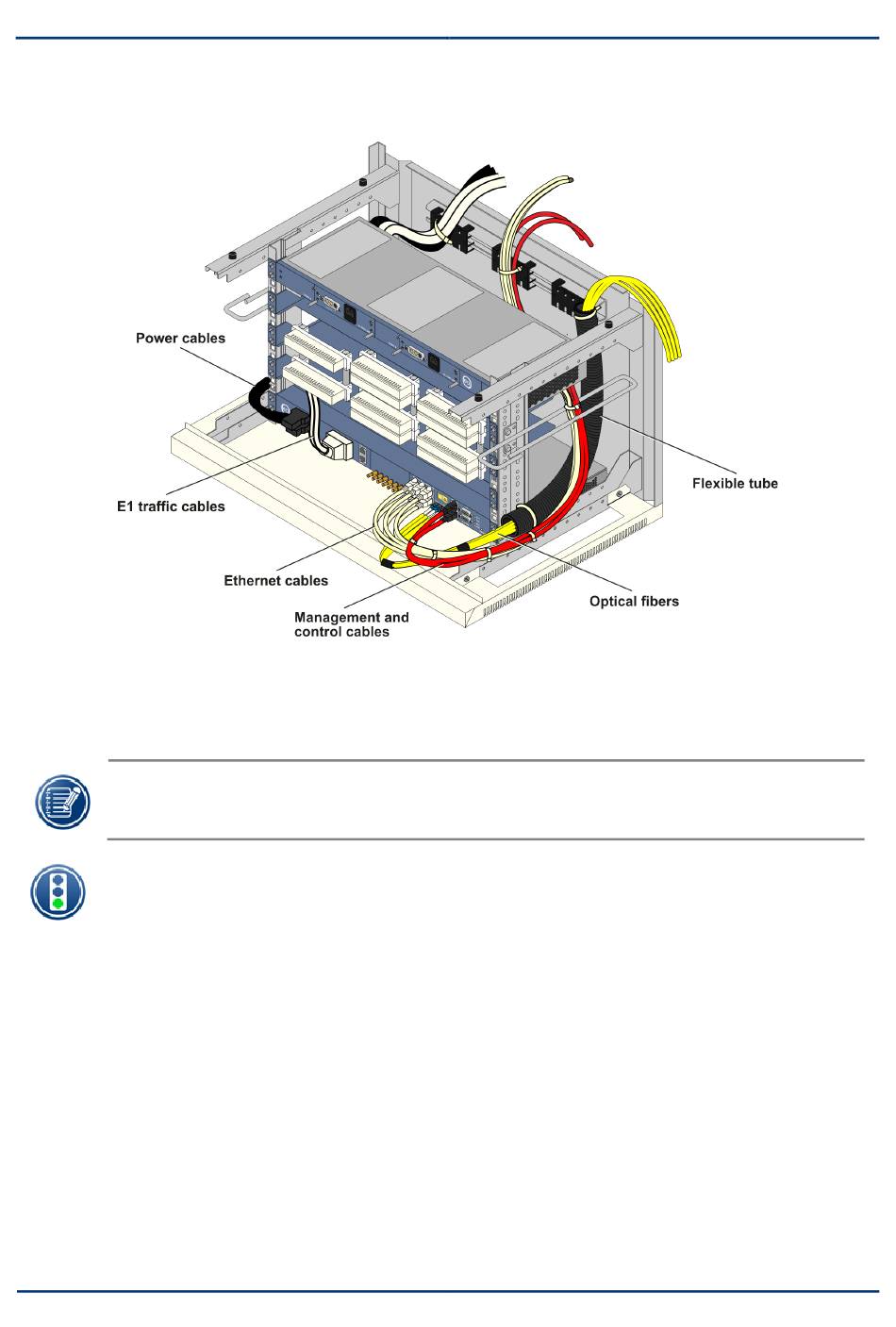

Figure 5-17: Wall-mounted cabinet cabling

NPT-1020 Wall-Mounted Installations
5-20
