NPT-1020 Installation and Maintenance Manual
3. Connect the lug at one end of the grounding lead to the RAP-4B grounding studs, using spring
washers and nuts.
4. Connect the two-hole lug at the other end of the grounding lead to the rack's grounding bar.
To connect DC input power cables to the RAP-4B:
1. Before starting, identify the openings used to route power cables to the RAP-4B, as shown in the
following figure.
2. Open the two captive screws fastening the RAP-4B front cover and remove it.
ECI Telecom Ltd. Proprietary

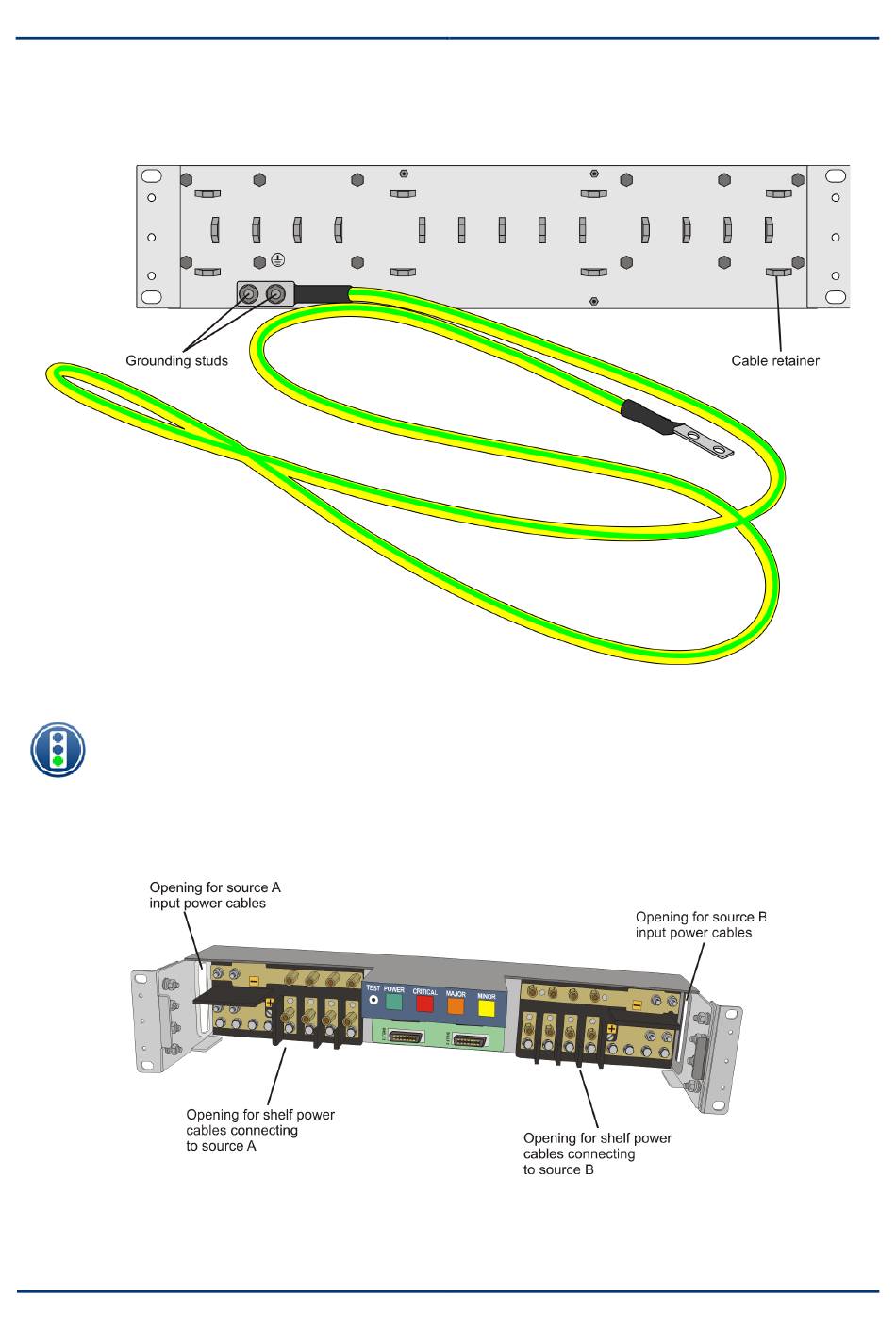

Figure 4-11: RAP-4B with grounding cable

Figure 4-12: Identifying RAP-4B cable routes

Installing Equipment
4-14
