NPT-1020 Installation and Maintenance Manual

4.6.4 Installing the ODF

Identify the prescribed ODF locations in the rack before performing the following procedures.
The ODF is supplied with two sets of rack mounting brackets: one for 19" and ETSI racks (for both ETSI A
and B), and the other for 23" 7-foot bay racks.
To attach the rack mounting brackets to the ODF:
Refer to the following figure to identify the required set of rack mounting brackets, and attach each

bracket to the corresponding ODF side panel with three screws.
To connect optical fibers to the ODF:
1. Push the release button on the ODF front panel to the left to release the latch and pull it towards you.
The cover opens downwards.
ECI Telecom Ltd. Proprietary

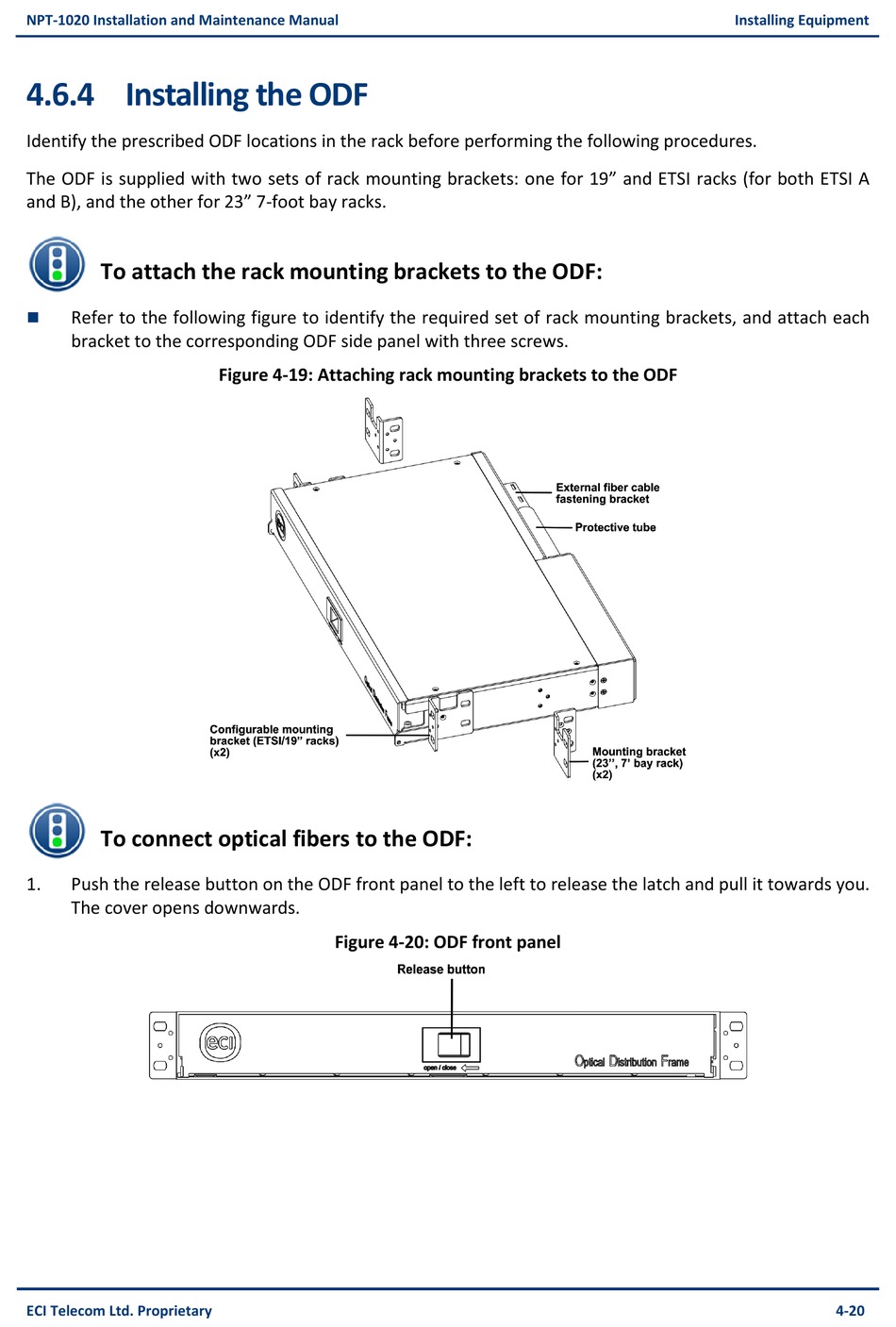

Figure 4-19: Attaching rack mounting brackets to the ODF

Figure 4-20: ODF front panel

Installing Equipment
4-20
