NPT-1020 Installation and Maintenance Manual
3.
Repeat Steps 1 and 2 for the second power cable to be connected to the corresponding connector on
the platform.
4.
Bend the cables and thread them through the left cable guide of the cabinet.
5.
Route the cable near the left cable clamp on the C-rail.
6.
Use cable ties as required to fasten the cables to the cable guide and to the cable clamp.
ECI Telecom Ltd. Proprietary

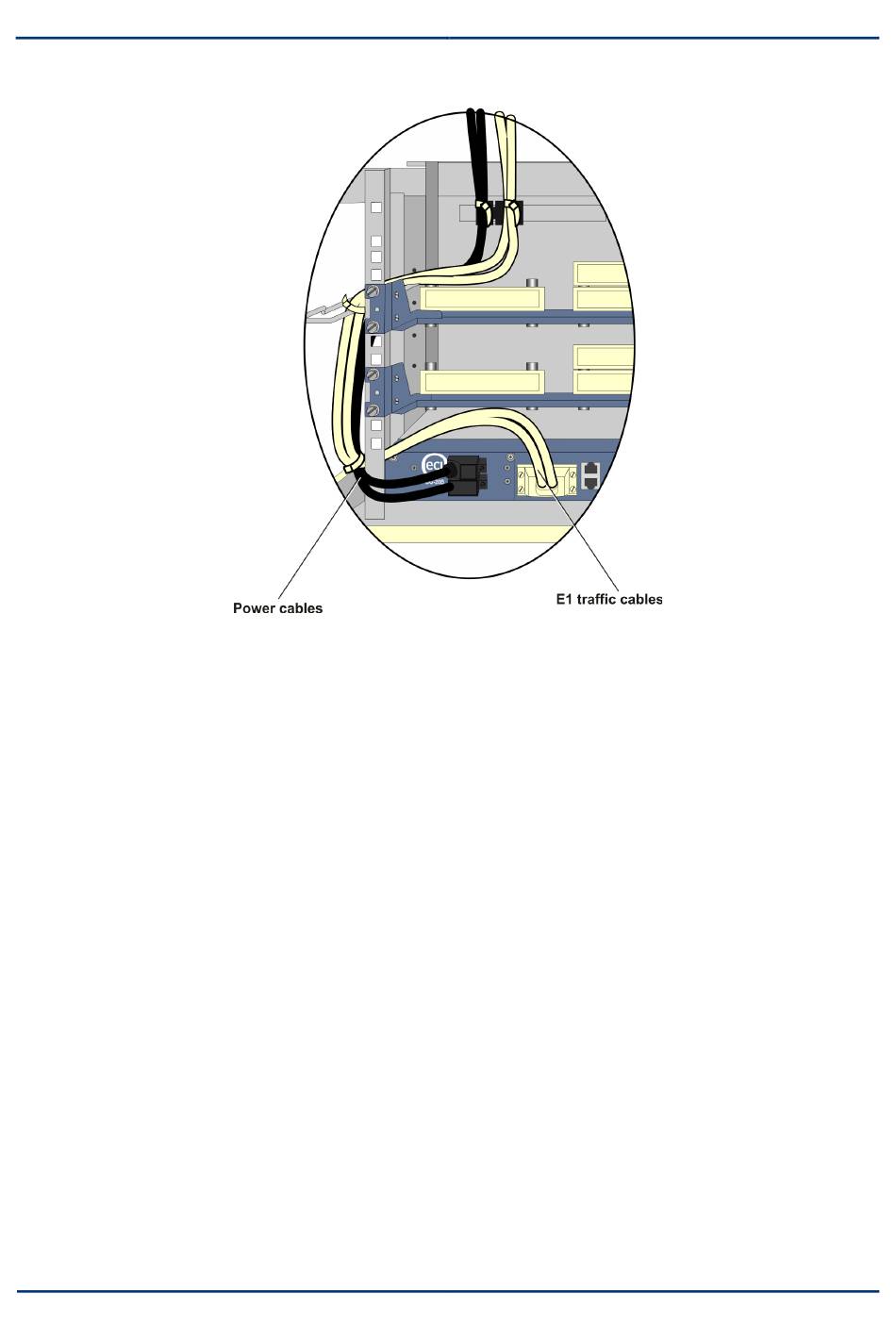

Figure 5-18: Wall-mounted cabinet cables routing front view
NPT-1020 Wall-Mounted Installations
5-21
