5.15.1 Installing the NPT-1020 and Three DDFs (Option 1)

To install the NPT-1020:
1. Identify the prescribed position of the NPT-1020 in the wall-mounted frame.
2. Attach the NPT-1020 to the frame with four M6 Phill. screws and flat washers.
3. Fasten the NPT-1020 to the frame.
To install the three DDFs:
1. Identify the prescribed position of the lower DDF in the wall-mounted frame.
2. Attach the DDF to the frame using four M6 Phill. screws and flat washers.
3. Fasten the DDF to the frame.
4. Repeat Steps 1 to 3 for installing the other two DDFs.
ECI Telecom Ltd. Proprietary

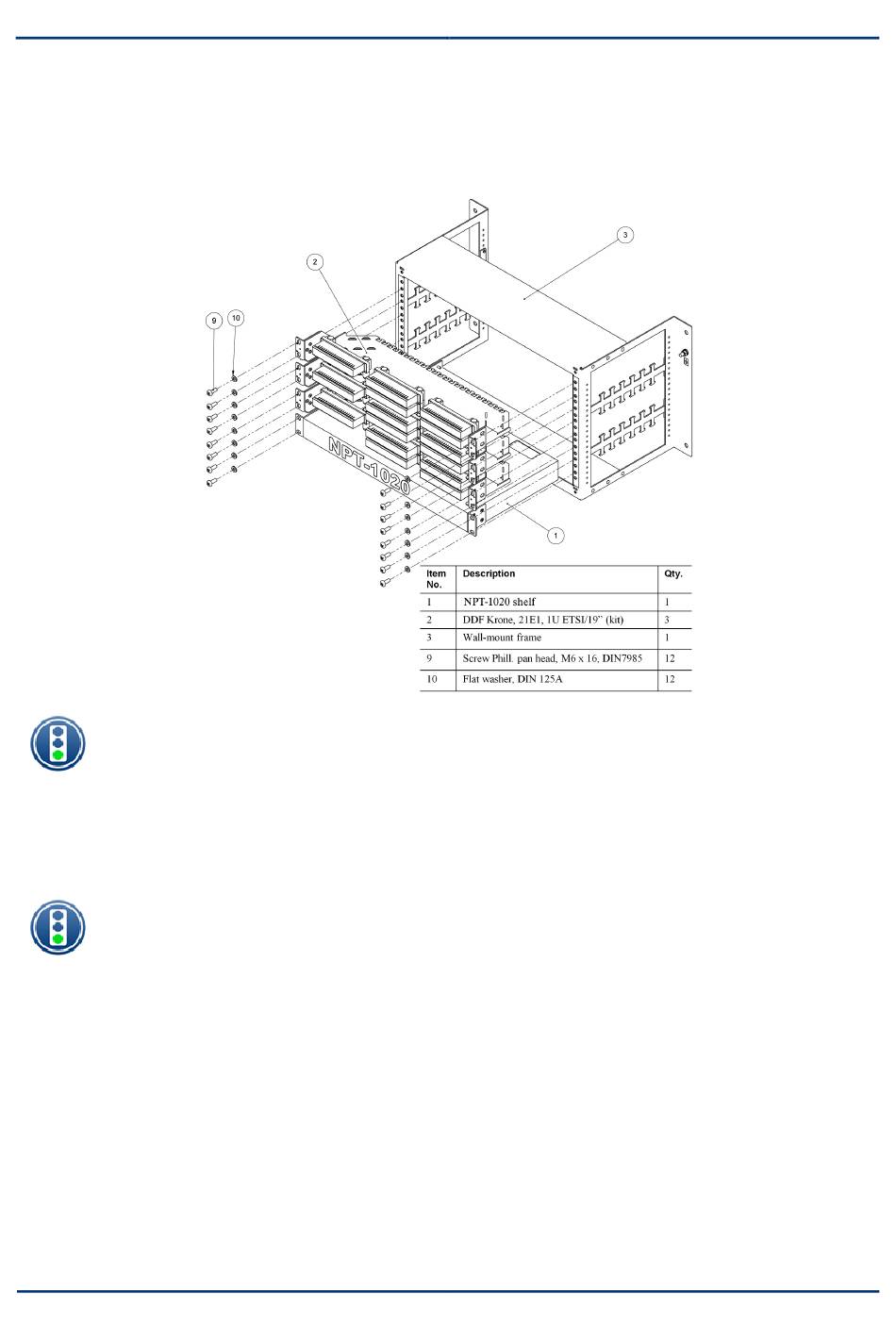

Figure 5-28: Installing a NPT-1020 and three DDFs

NPT-1020 Wall-Mounted Installations
5-33
