NPT-1020 Installation and Maintenance Manual
The lower cable support is attached to the frame side in holes 5 and 8 from the bottom as shown in
the figure above.
2.
Attach the lower cable support to the frame with four M3 Phill. screws, spring washers, and flat
washers.
3.
Fasten the cable support to the frame.
4.
Repeat Steps 1 to 3 for attaching the upper cable support to the frame. (The upper cable support is
attached to the frame side in holes 5 and 8 from the top as shown in the figure above.)
5.
Repeat Steps 1 to 4 for installing two cable supports on the other side of the frame.
ECI Telecom Ltd. Proprietary

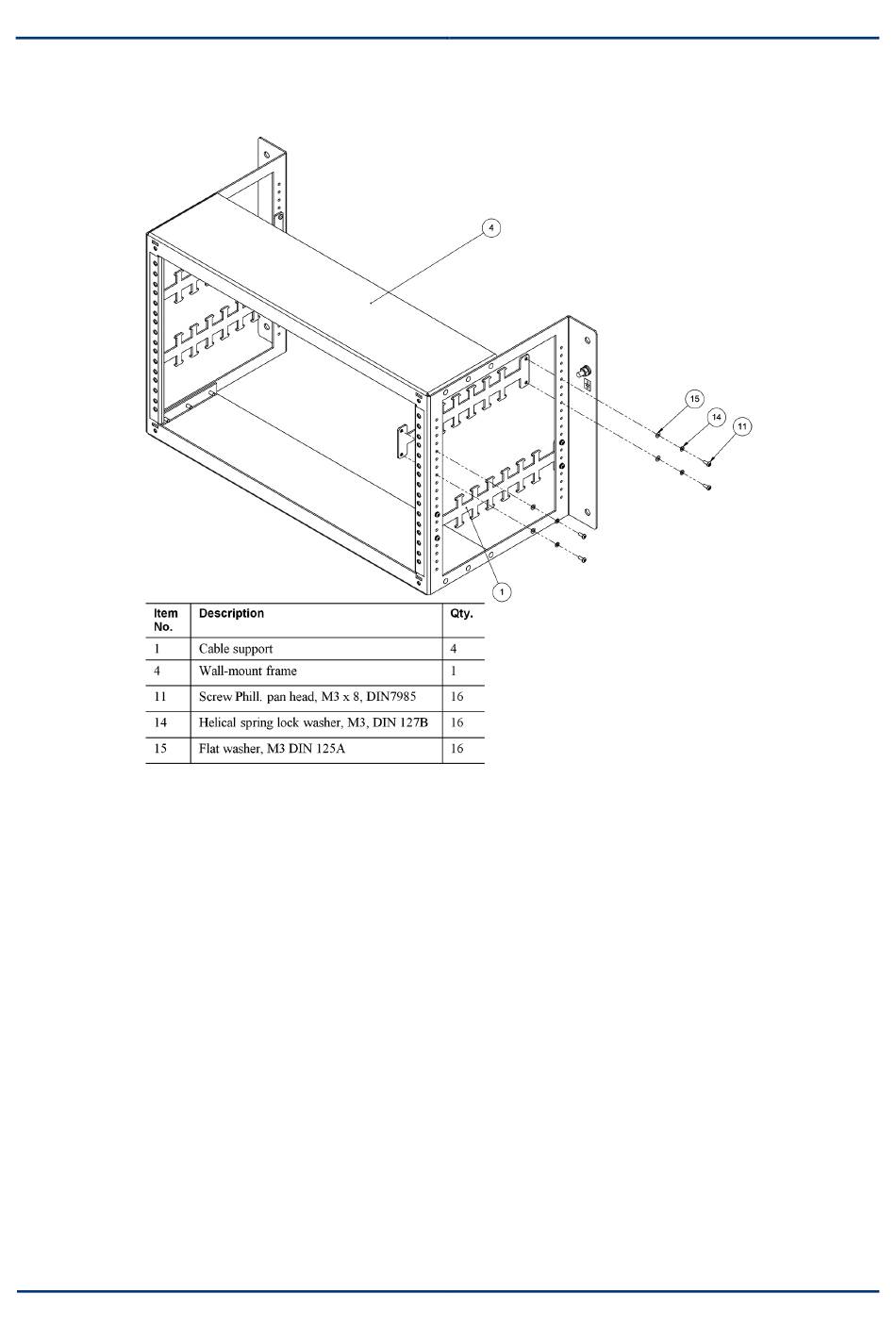

Figure 5-26: Wall-mounted frame installation
