NPT-1020 Installation and Maintenance Manual
9.1.4 Installing the Rack on Floating (Suspended) Floors
To install the rack on a floating (suspended) floor:
1.
Drill the required mounting holes in the suspended floor, in accordance with the appropriate
template.
2.
Position the rack over the mounting holes.
3.

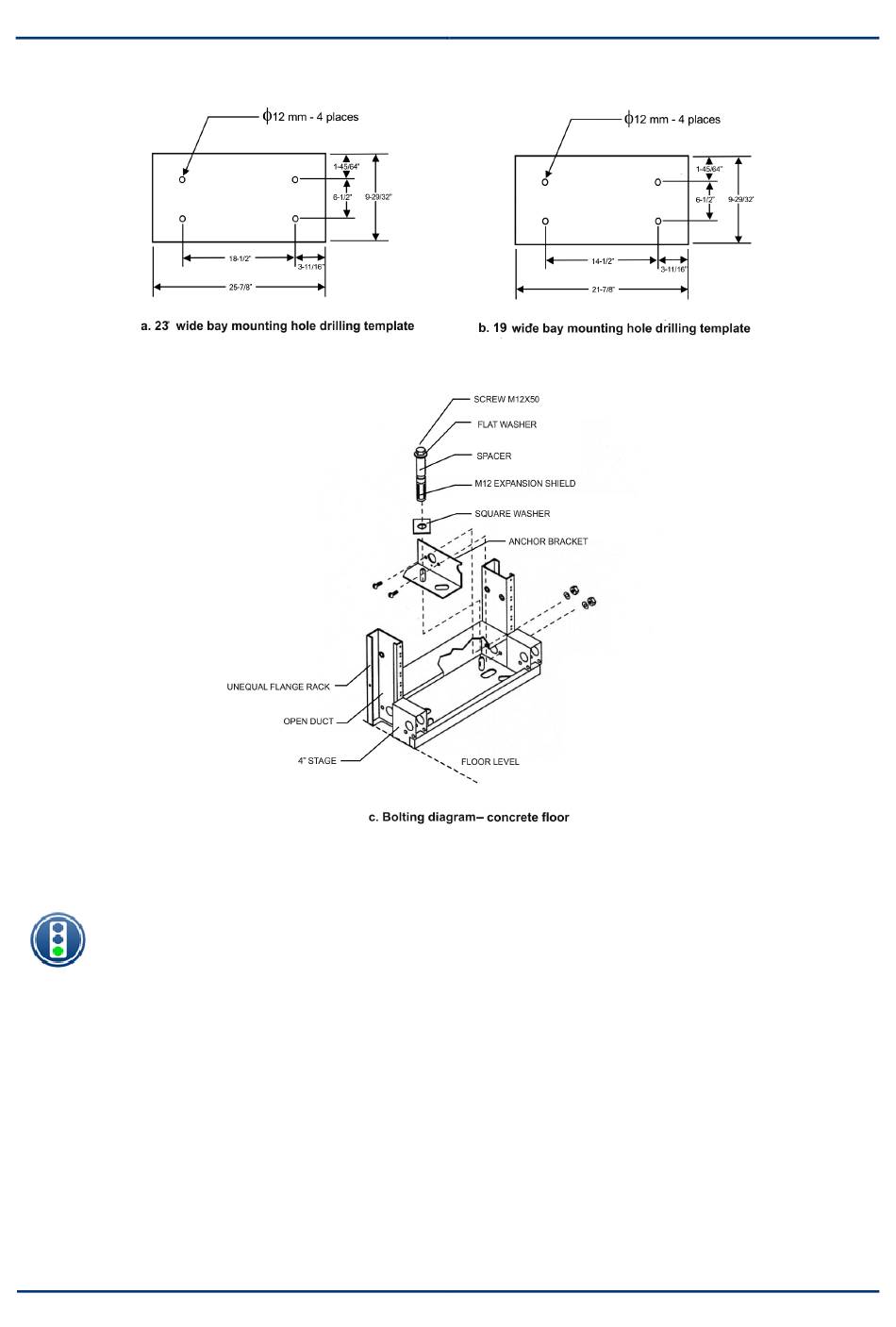

Secure the rack to the floor in accordance with diagram c. in the figure "Mounting diagrams for ETSI
racks"
(Rack Installation on Wooden
ECI Telecom Ltd. Proprietary
Figure 9-2: Mounting diagrams for 19" and 23" racks
Floors).
