To install an SM_10E/EM_10E ICP:
1. Identify the prescribed position of the ICP in the rack in accordance with the rack installation plan.
2. Place the ICP in the prescribed position using the two stabilizing pins to hold it temporarily in place,
and then fasten the platform to the rack side rails with four M6 screws, washers, and nuts.

4.6.7 Installing the AC_CONV_UNIT

The AC_CONV_UNIT is an AC power platform that can be mounted separately in the rack. The
AC_CONV_UNIT is supplied with one set of combined rack mounting brackets for 19" and ETSI racks (for
both ETSI A and B racks).
To install an AC_CONV_UNIT:
1. Identify the prescribed position of the AC_CONV_UNIT in the rack in accordance with the rack
installation plan.
2. Place the AC_CONV_UNIT in the prescribed position using the two stabilizing pins to hold it
temporarily in place, and then fasten the platform to the rack side rails with four M6 screws, washers,
and nuts.
ECI Telecom Ltd. Proprietary

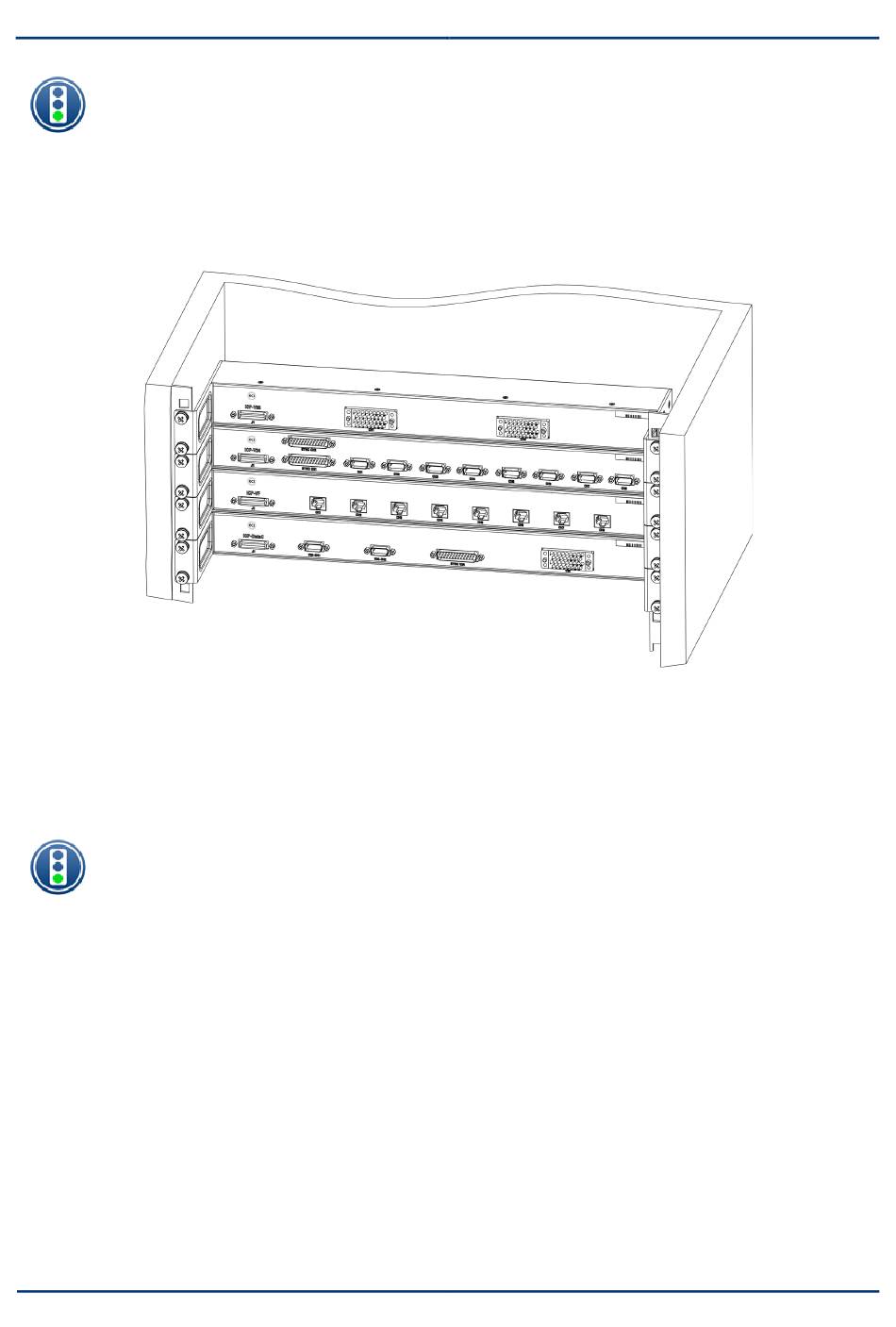

Figure 4-23: Installing SM_10E/EM_10E ICPs in the rack
