NPT-1020 Installation and Maintenance Manual

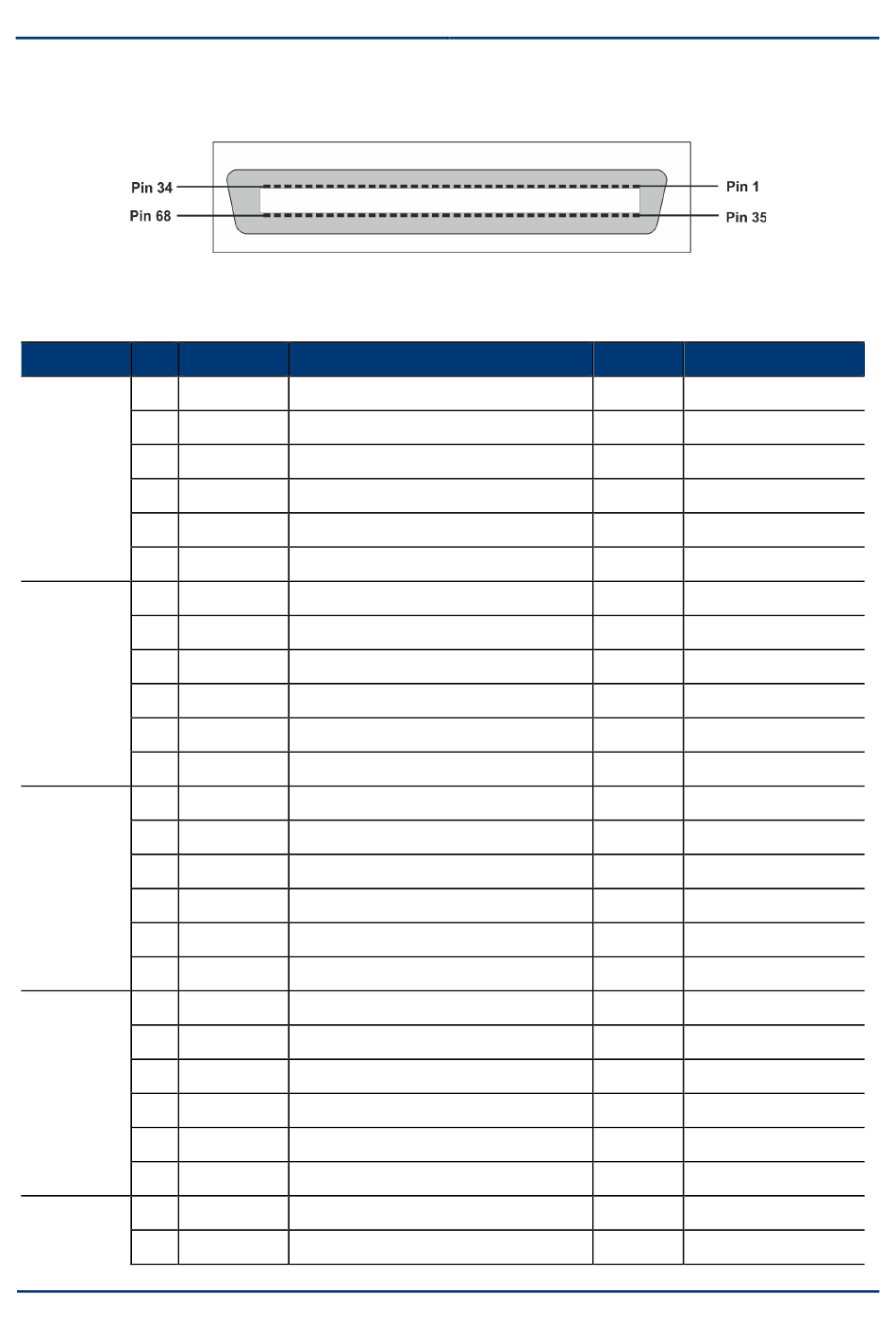

The following figure identifies the ALARM IN/OUT connector pins, as seen when looking into the connector.
Figure 8-18: RAP-4B ALARM IN/OUT connector, pin identification
Table 8-36: RAP-4B ALARM IN/OUT connector, pin assignment
Assignment Pin Designation
Platform 1 1 ALM_01NO
2 ALM_01COM
3 ALM_01NC
4 ALM_02NO
5 ALM_02COM
6 ALM_02NC
Platform 2 7 ALM_03NO
8 ALM_03COM
9 ALM_03NC
10 ALM_04NO
11 ALM_04COM
12 ALM_04NC
Platform 3 13 ALM_05NO
14 ALM_05COM
15 ALM_05NC
16 ALM_06NO
17 ALM_06COM
18 ALM_06NC
Platform 4 19 ALM_07NO
20 ALM_07COM
21 ALM_07NC
22 ALM_08NO
23 ALM_08COM
24 ALM_08NC
All platforms 25 CRIT_NC
26 CRIT_NO
ECI Telecom Ltd. Proprietary
Function
Output relay 1, normally open contact
Output relay 1, common contact
Output relay 1, normally closed contact
Output relay 2, normally open contact
Output relay 2, common contact
Output relay 2, normally closed contact
Output relay 3, normally open contact
Output relay 3, common contact
Output relay 3, normally closed contact
Output relay 4, normally open contact
Output relay 4, common contact
Output relay 4, normally closed contact
Output relay 5, normally open contact
Output relay 5, common contact
Output relay 5, normally closed contact
Output relay 6, normally open contact
Output relay 6, common contact
Output relay 6, normally closed contact
Output relay 7, normally open contact
Output relay 7, common contact
Output relay 7, normally closed contact
Output relay 8, normally open contact
Output relay 8, common contact
Output relay 8, normally closed contact
Critical alarm relay, normally closed contact
Critical alarm relay, normally open contact
Connection Data
Direction Wire color
Output Black
Output Brown
Output Red
Output Orange
Output Yellow
Output Green
Output Blue
Output Violet
Output Gray
Output White
Output Pink
Output Light Green
Output Black/White
Output Brown/White
Output Red/White
Output Orange/White
Output Green/White
Output Blue/White
Output Violet/White
Output Red/Black
Output Orange/Black
Output Yellow/Black
Output Green/Black
Output Gray/Black
Output Pink/Black
Output Pink/Green
8-44
