NPT-1020 Installation and Maintenance Manual

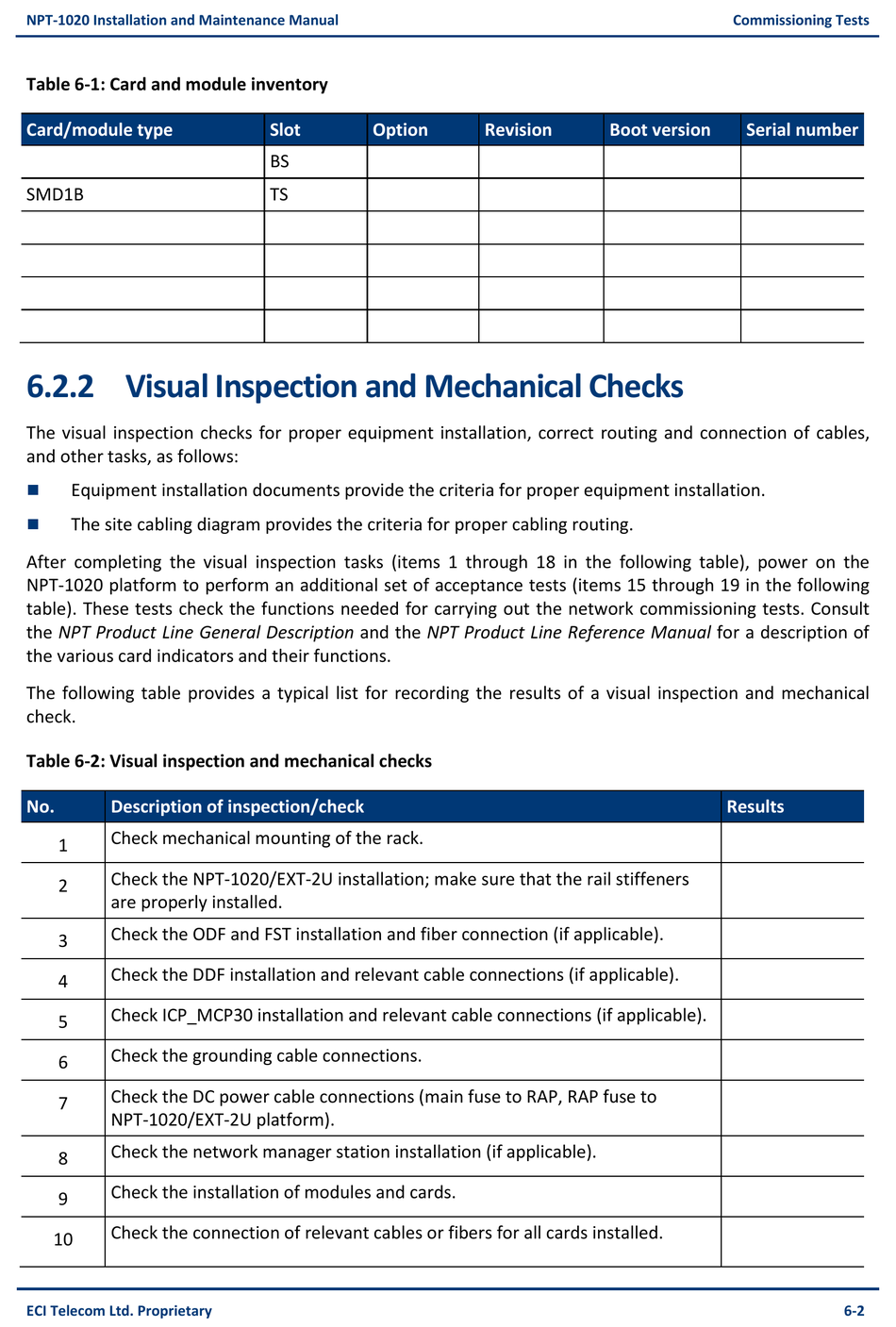

Table 6-1: Card and module inventory

Card/module type
SMD1B

6.2.2 Visual Inspection and Mechanical Checks

The visual inspection checks for proper equipment installation, correct routing and connection of cables,
and other tasks, as follows:
Equipment installation documents provide the criteria for proper equipment installation.

The site cabling diagram provides the criteria for proper cabling routing.

After completing the visual inspection tasks (items 1 through 18 in the following table), power on the
NPT-1020 platform to perform an additional set of acceptance tests (items 15 through 19 in the following
table). These tests check the functions needed for carrying out the network commissioning tests. Consult
the NPT Product Line General Description and the NPT Product Line Reference Manual for a description of
the various card indicators and their functions.
The following table provides a typical list for recording the results of a visual inspection and mechanical
check.

Table 6-2: Visual inspection and mechanical checks

No. Description of inspection/check
Check mechanical mounting of the rack.
1
Check the NPT-1020/EXT-2U installation; make sure that the rail stiffeners
2
are properly installed.
Check the ODF and FST installation and fiber connection (if applicable).
3
Check the DDF installation and relevant cable connections (if applicable).
4
Check ICP_MCP30 installation and relevant cable connections (if applicable).
5
Check the grounding cable connections.
6
Check the DC power cable connections (main fuse to RAP, RAP fuse to
7
NPT-1020/EXT-2U platform).
Check the network manager station installation (if applicable).
8
Check the installation of modules and cards.
9
Check the connection of relevant cables or fibers for all cards installed.
10
ECI Telecom Ltd. Proprietary
Slot Option
BS
TS
Revision Boot version
Commissioning Tests
Serial number
Results
6-2
