Before you start:

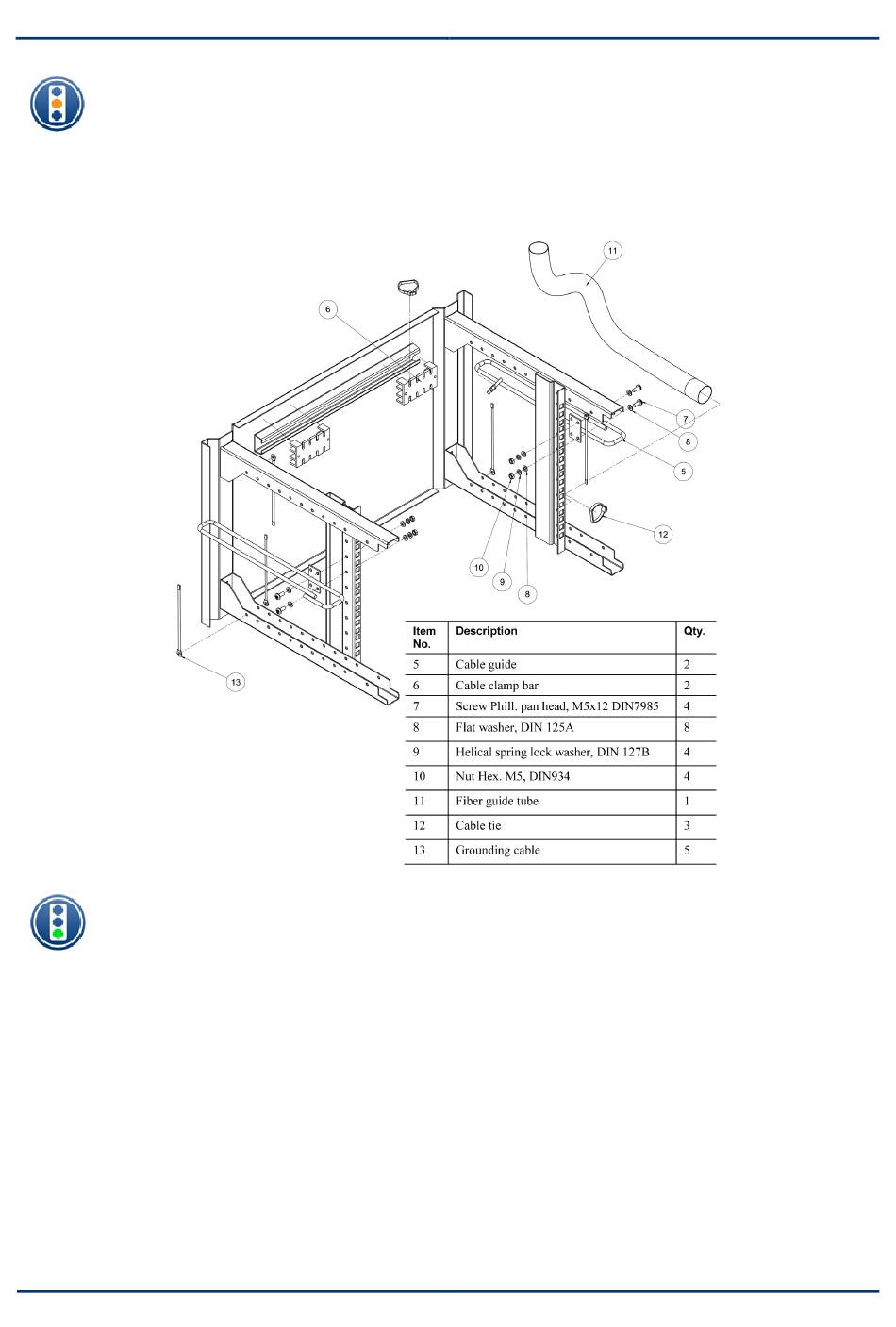

Identify the cable guide with its components according to the following figure; the cable guide has an
installation bracket attached.
To install the cable guides:
1. Align the cable guide on the side of the extrusion to an approx. height of 178 mm from the lower
support rail (see the figure
2. Attach the cable guide to the vertical extrusion with two screws, flat washers, sprig washers and nuts,
in the order shown in the figure
3. Fasten the cable guide to the extrusion.
4. Repeat Steps 1 to 3 for the second cable guide.
ECI Telecom Ltd. Proprietary

Figure 5-10: Cabling accessories

Cabling accessories).
Cabling accessories.
