NPT-1020 Installation and Maintenance Manual
To attach the brackets for ETSI installation:
1.
Unscrew the six M2.5 x 6 screws (three on each side) attaching the brackets to the DDF tray. Keep the
screws for the next steps.
2.
Rotate the bracket to the ETSI position; in this position the longer part of the bracket is attached to
the tray.
3.
Use three M2.5 x 6 screws removed in Step 1 to attach the bracket to the DDF tray.
4.
Fasten the bracket to the DDF.
5.
Repeat Steps 2 to 4 for the second bracket.
5.6.1.2 Attaching Connection Blocks
Five connection blocks are attached to the DDF tray. Two blocks are attached to each bushing pair except
for the leftmost pair, to which one block is attached.
Each block is equipped with a labeling cover that protects the contacts and helps identify the wire
connections for maintenance and repair purposes.
ECI Telecom Ltd. Proprietary

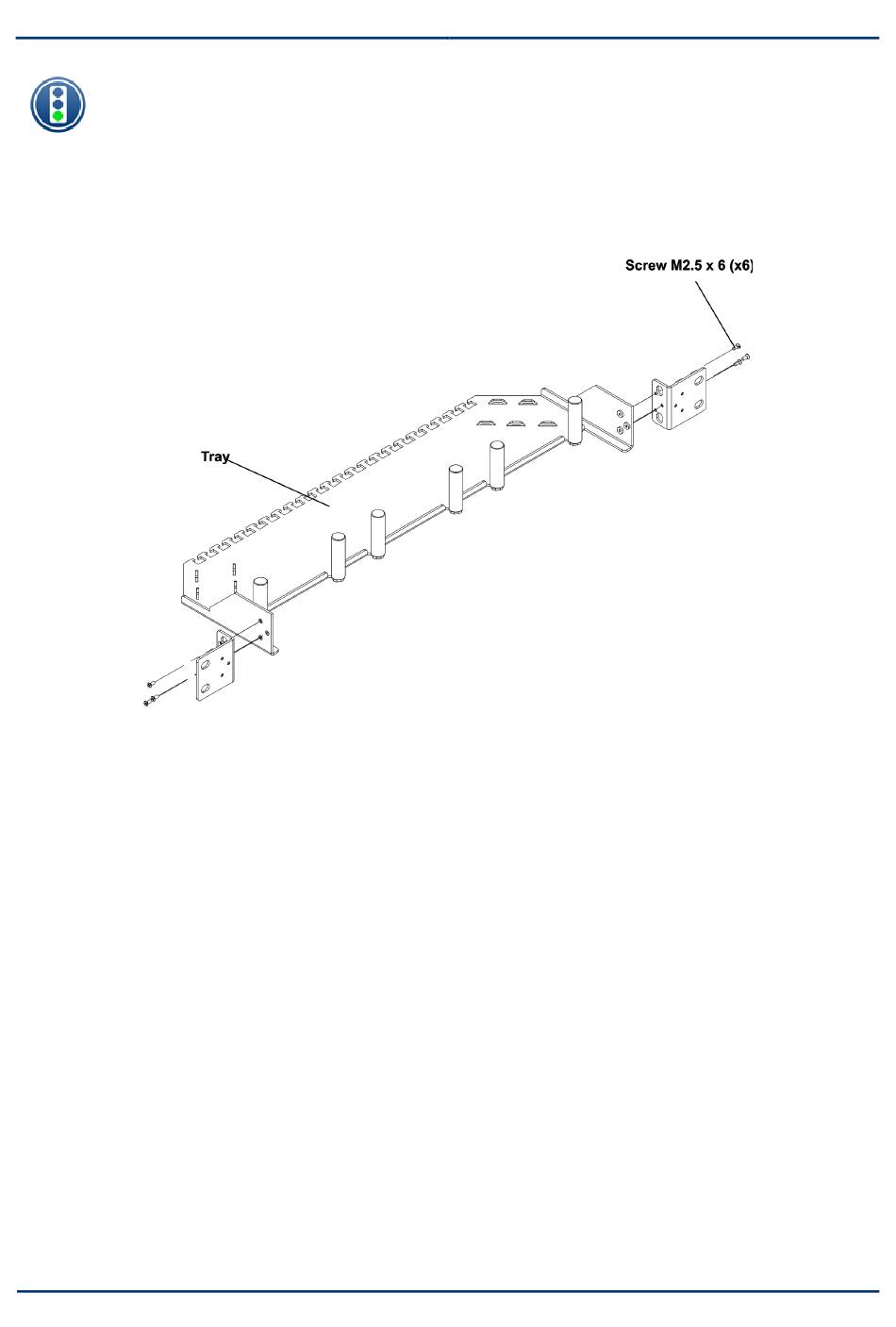

Figure 5-12: Installing the brackets for ETSI installation
NPT-1020 Wall-Mounted Installations
5-12
