NPT-1020 Wall-Mounted Installations

5.1

Overview

In addition to the regular installation of the NPT-1020 in different racks, ECI offers two options for
wall-mounted installations:

Wall-mounted cabinet


Wall-mounted frame

These options are ideal for installations in small businesses or home offices (SOHO).
The following sections provide detailed procedures for these installations.
5.2 Wall-Mounted Cabinet
The cabinet is 352 mm high, 600 mm wide, and 400 mm deep and has a transparent front door. It includes
a rear panel with four support rails to which two 19" vertical extrusions are fastened. The equipment and
cabling accessories are attached to these extrusions.
The side, top, and bottom covers can easily and quickly be removed, providing comfortable user-friendly
access to the interior for installation and management of all components.
The wall-mounted cabinet is shipped dismantled in a flat-pack packaging, saving up to 50 % of
transportation volume and facilitating delivery to the point of assembly.
ECI Telecom Ltd. Proprietary

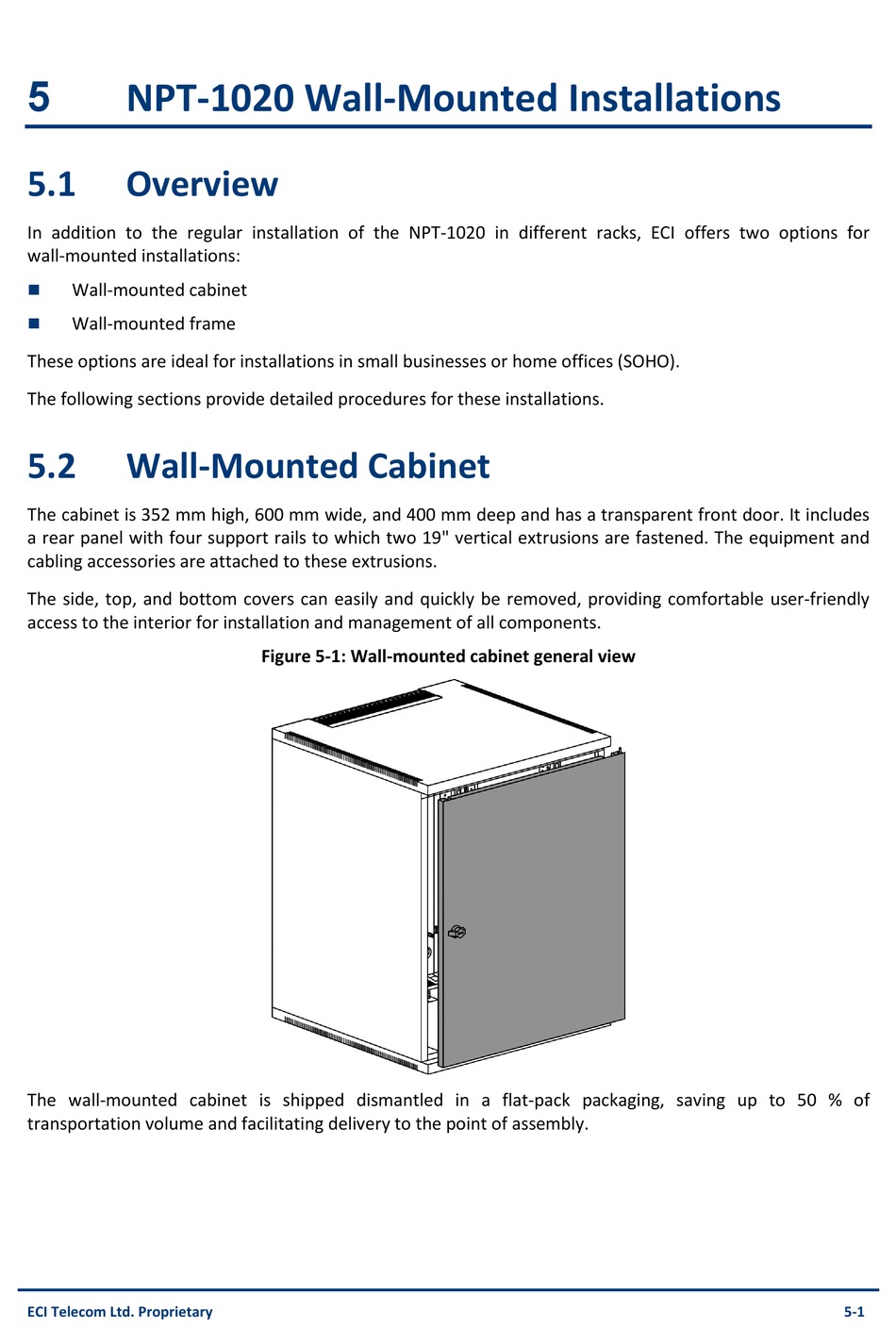

Figure 5-1: Wall-mounted cabinet general view
