NPT-1020 Installation and Maintenance Manual
To install an SFP module:
1. Check that the SFP has not been physically damaged during shipment, and that the antistatic
protection bag of the original packaging is sealed.
2. Remove the module from its antistatic protection packaging and perform a visual inspection to detect
damage during shipping. Report any problems.
3. Insert the rear end of the SFP module plug-in into the prescribed position, and push slowly backward
to mate its rear connector with the corresponding optical interface module connector until the
transceiver clicks into place. If you feel resistance before the transceiver plug-in is fully inserted,
retract the transceiver and repeat the insertion.
4. Repeat Steps 1 to 3 for other SFP modules (if required).
4.8

Installing the EXT-2U Platform in the Rack

EXT-2U is an expansion unit which can be added on top of the NPT-1020 to provide enhanced capacity and
a rich feature list. If you need more add-drop capacity and additional functionality, such as Ethernet L2 and
PCM, an EXT-2U can be added. The EXT-2U supports live insertion and can be installed at any time without
affecting the traffic running on the NPT-1020. The EXT-2U can also be installed when installing the
NPT-1020.
The EXT-2U is compact and versatile and can be used with different base units from both ECI's NPT and
BroadGate Product Lines. The type of traffic that can be delivered by the unit depends on the type of matrix
(TDM, Hybrid, or Packet only) installed in the base unit. I/O expansion cards are supported in accordance.
ECI Telecom Ltd. Proprietary

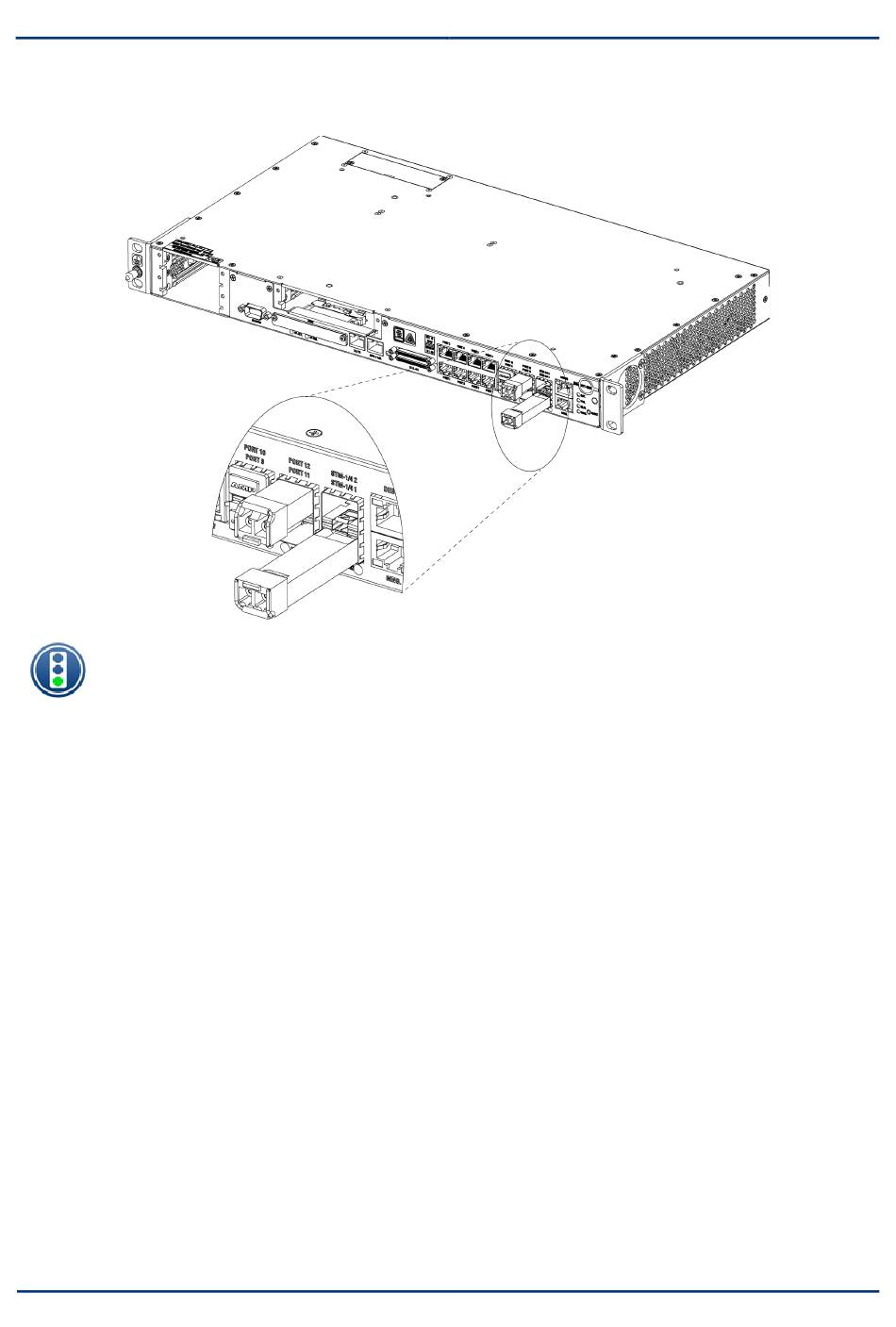

Figure 4-30: Installing an SFP in the NPT-1020

Installing Equipment
4-31
