NPT-1020 Installation and Maintenance Manual
The following figure identifies the connector pins as seen when looking into the connector. The table lists
the pin assignment for a typical connector. It also lists the color of the wire connected to the corresponding
pin in the cables offered by ECI for connecting between the tributary connector and a distribution frame.
Table 8-6: PME1_21 and MSE1_16 connector, pin assignment
Pin Name
1 ---
2 TTIP21
3 TRING21
4 TTIP20
5 TRING20
6 TTIP19
7 TRING19
8 ---
9 TTIP18
10 TRING18
11 TTIP17
12 TRING17
13 TTIP16
14 TRING16
15 ---
16 TTIP15
17 TRING15
18 TTIP14
19 TRING14
20 TTIP13
21 TRING13
22 ---
23 TTIP12
24 TRING12
25 TTIP11
26 TRING11
27 TTIP10
ECI Telecom Ltd. Proprietary

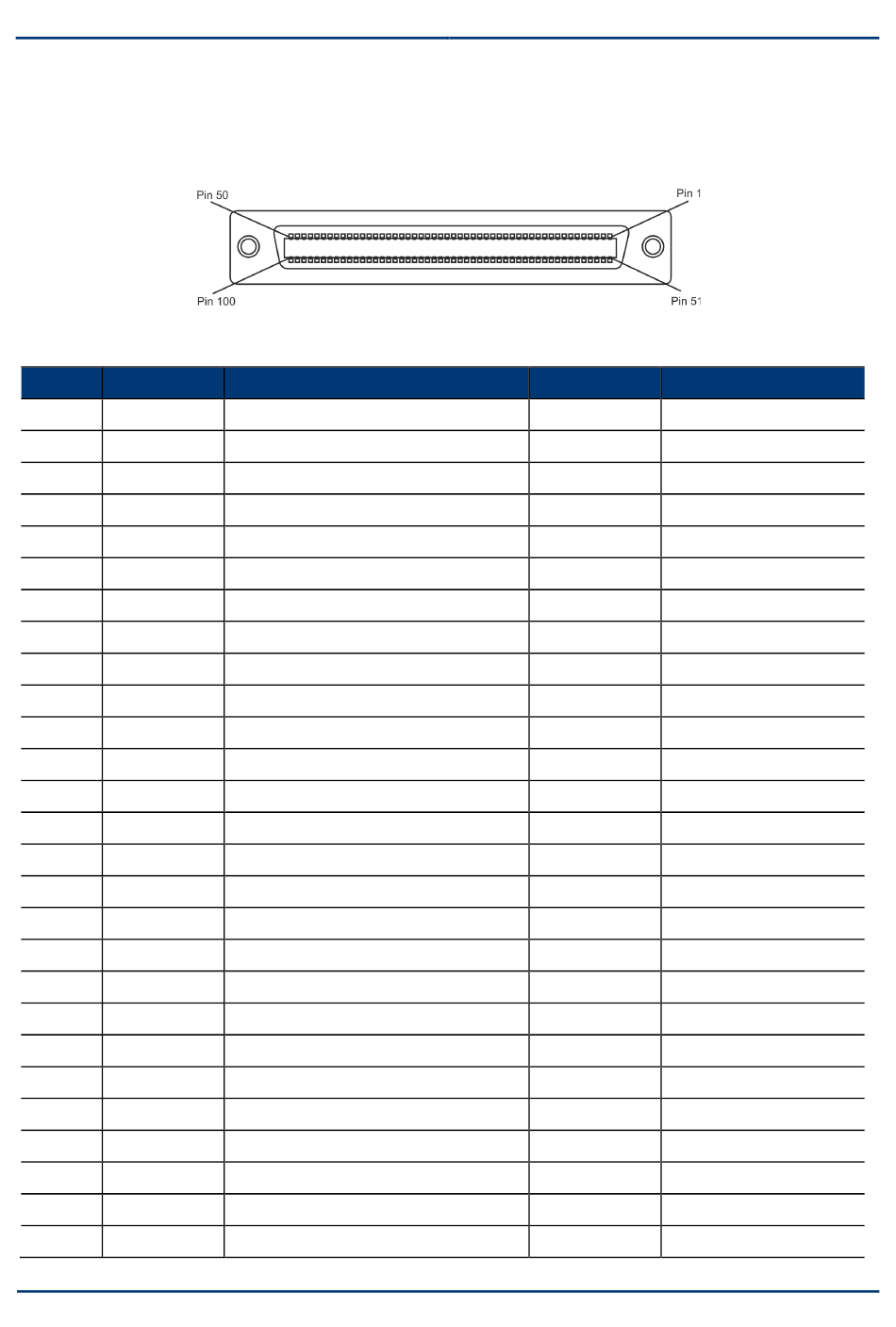

Figure 8-7: E1 connectors for PME1_21, pin identification
Function
Not connected
Transmit, tributary 21, wire A
Transmit, tributary 21, wire B
Transmit, tributary 20, wire A
Transmit, tributary 20, wire B
Transmit, tributary 19, wire A
Transmit, tributary 19, wire B
Not connected
Transmit, tributary 18, wire A
Transmit, tributary 18, wire B
Transmit, tributary 17, wire A
Transmit, tributary 17, wire B
Transmit, tributary 16, wire A
Transmit, tributary 16, wire B
Not connected
Transmit, tributary 15, wire A
Transmit, tributary 15, wire B
Transmit, tributary 14, wire A
Transmit, tributary 14, wire B
Transmit, tributary 13, wire A
Transmit, tributary 13, wire B
Not connected
Transmit, tributary 12, wire A
Transmit, tributary 12, wire B
Transmit, tributary 11, wire A
Transmit, tributary 11, wire B
Transmit, tributary 10, wire A
Direction Wire color
--- ---
Output White/Pink ring
Output Light Gray/Pink ring
--- Blue/Pink ring
--- Green/Pink ring
Output Yellow/Pink ring
Output Orange/Pink ring
--- ---
Output Red/Pink ring
Output Brown/Pink ring
Output White/Violet ring
Output Light Gray/Violet ring
Output Blue/Violet ring
Output Green/Violet ring
--- ---
Output Yellow/Violet ring
Output Orange/Violet ring
Output Red/Violet ring
Output Brown/Violet ring
Output White/Orange ring
Output Light Gray/Orange ring
--- ---
Output Violet/Orange ring
Output Blue/Orange ring
Output Brown/Gray ring
Output Brown
Output Red/Gray ring
Connection Data
8-11
