Parameter Descriptions

23-04 Occurrence

Array [10]
Option: Function:
[31] Day 22 of month
[32] Day 23 of month
[33] Day 24 of month
[34] Day 25 of month
[35] Day 26 of month
[36] Day 27 of month
[37] Day 28 of month
[38] Day 29 of month
[39] Day 30 of month
[40] Day 31 of month

23-08 Timed Actions Mode

Used to enable and disable automatic timed actions.
Option: Function:
[0] Timed Actions Auto Enable timed actions.
*
[1] Timed Actions Disable timed actions, normal
Disabled operation according to control
commands.
[2] Constant On Actions Disable timed actions. Constant On
Actions activated.
[3] Constant Off Actions Disable timed actions. Constant Off
Actions activated.

23-09 Timed Actions Reactivation

Option: Function:
[0] Disabled After an update of time/condition
•
power cycling
•
setting date
•
time
•
change of summertime
•
change of Hand Auto mode
•
change of Constant ON and OFF
set-up change all activated ON actions are
overridden to OFF actions until passing the next
time for an ON action. Any OFF actions remain
unchanged.
[1] Enabled After an update of time/condition On and OFF
*
actions are immediately set to the actual time
programming of ON and OFF actions.
See the example of a reactivation test inIllustration 3.70.
MG33MP02
Programming Guide
Timed Action
ON: RUN
OFF: STOP
Status
RUNNING
STOPPED

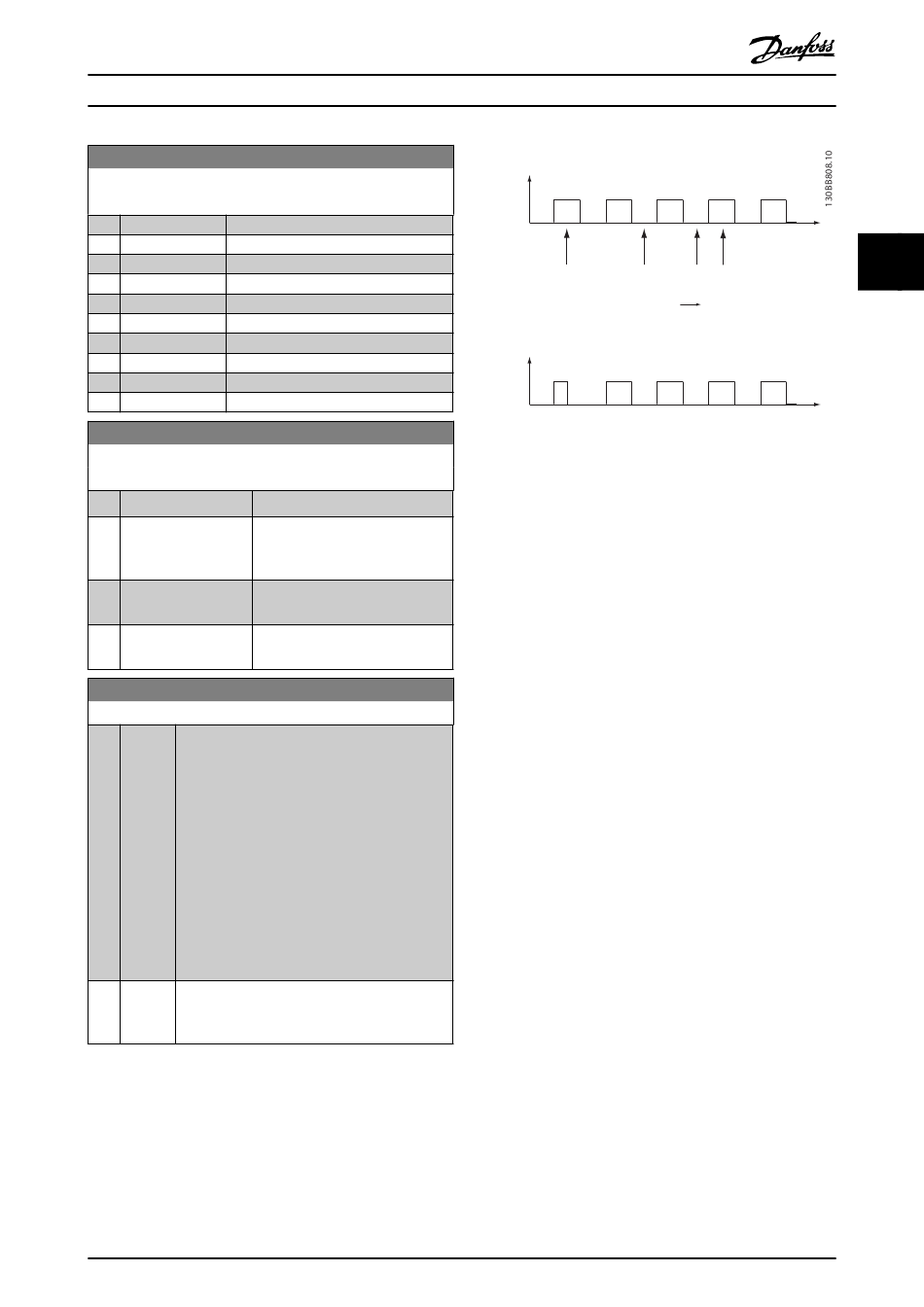

Illustration 3.70 Reactivation Test Diagram
Danfoss A/S © 10/2018 All rights reserved.
Power P23-09: Power
Power
Cycle Disable Cycle
Cycle
P23-09: P23-09:
P23-09:
Disabled Enabled
Disabled Enable
3 3
