Parameter Descriptions

4-83 Power Limit Generator Mode

Range: Function:
100.0 % [0.0 - Enter the maximum generating power
*
200.0 %] when the power limit function is active.
Related parameters: parameter 1-20 Motor
Power [kW], parameter 1-21 Motor Power
[HP].

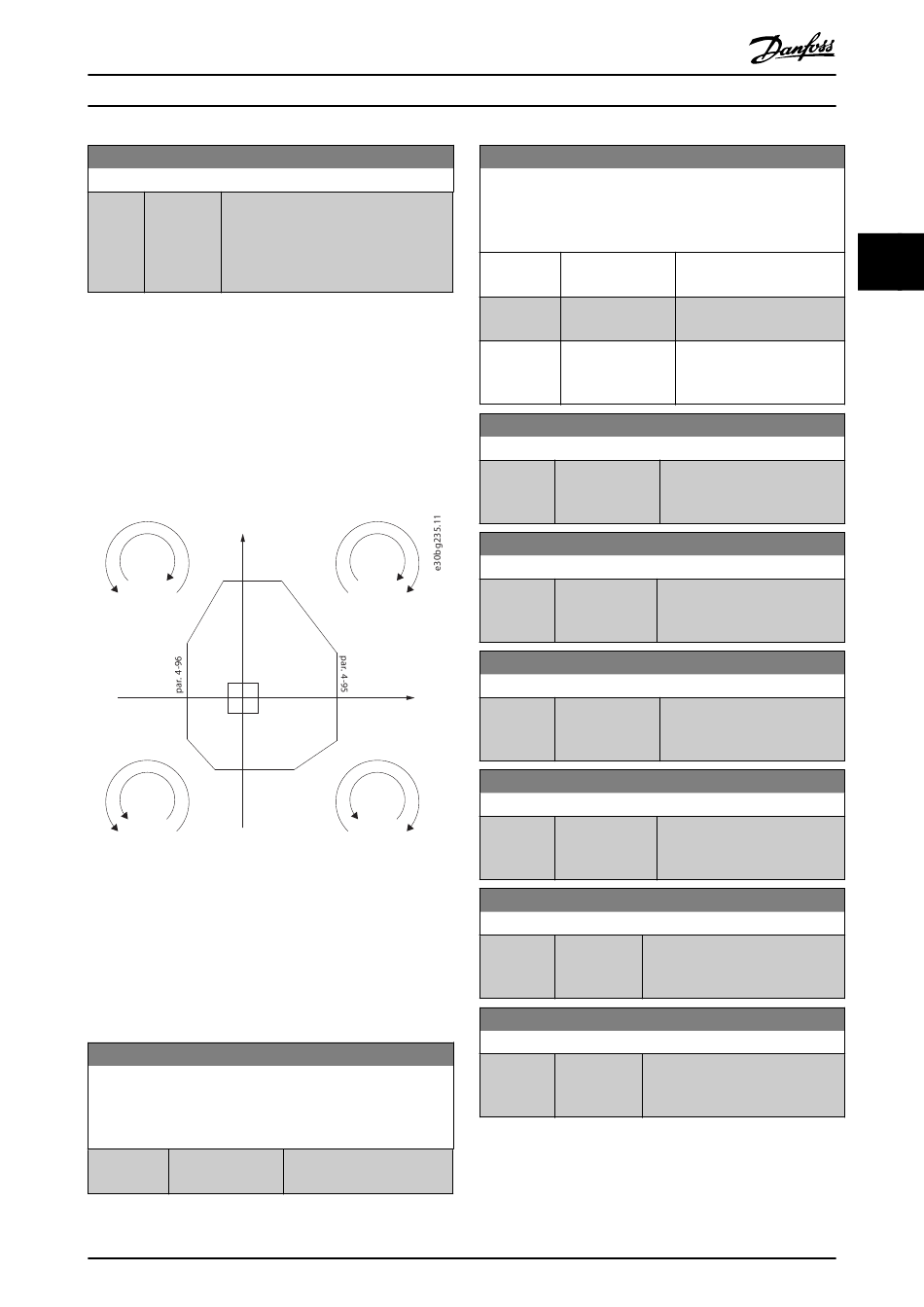

3.5.8 4-9* Directional Limits

The directional limits functionality allows to specify
different torque and speed limits for different
combinations of torque application direction and rotation
direction. For example, see Illustration 3.34. In the
illustration, quadrants 1–4 show different combinations of
rotation direction and torque application direction, and the
parameters that act in different quadrants.
n
par. 4-91,
n par. 4-92
T
Braking
2 1
3 4
par. 4-93,
par. 4-94
n
T
Driving
Illustration 3.34 Directional Limits
A speed limit value cannot exceed the value of
parameter 4-13 Motor Speed High Limit [RPM] or
parameter 4-14 Motor Speed High Limit [Hz]. A torque limit
value cannot exceed the value of parameter 4-16 Torque
Limit Motor Mode or parameter 4-17 Torque Limit Generator
Mode.

4-90 Directional Limit Mode

Select whether the directional limits are enabled. With directional
limits enabled, it is possible to specify different speed and torque
limits for clockwise and counterclockwise rotation directions.
Option:
[0] Disabled
*
MG33MP02
Programming Guide
n
T
Driving
T
n
T
Braking
Function:
Directional limits are
disabled.
Danfoss A/S © 10/2018 All rights reserved.
4-90 Directional Limit Mode
Select whether the directional limits are enabled. With directional
limits enabled, it is possible to specify different speed and torque
limits for clockwise and counterclockwise rotation directions.
Option:
[1] Speed
[2] Torque
[3] Speed and Torque
4-91 Positive Speed Limit [RPM]
Range:
Size related [ 0 - par. 4-13
*
RPM]
4-92 Positive Speed Limit [Hz]
Range:
Size related [ 0 - par. 4-14
*
Hz]
4-93 Negative Speed Limit [RPM]
Range:
Size related [ 0 - par. 4-13
*
RPM]
4-94 Negative Speed Limit [Hz]
Range:
Size related [ 0 - par. 4-14
*
Hz]
4-95 Positive Torque limit
Range: Function:
Size related [ 0 - 160.0 %] Enter the limit for the motor torque
*
when the rotation direction is
clockwise.
4-96 Negative Torque limit
Range: Function:
Size related [ 0 - 160.0 %] Enter the limit for the motor torque
*
when the rotation direction is
counterclockwise.
Function:
Directional limits are active
for the speed values.
Directional limits are active
for the torque values.
Directional limits are active
for both, torque and speed
values.
Function:
Enter the limit for the motor
speed when the rotation
direction is clockwise.
Function:
Enter the limit for the motor
speed when the rotation
direction is clockwise.
Function:
Enter the limit for the motor
speed when the rotation
direction is counterclockwise.
Function:
Enter the limit for the motor
speed when the rotation
direction is counterclockwise.
