MAIN
Batteries

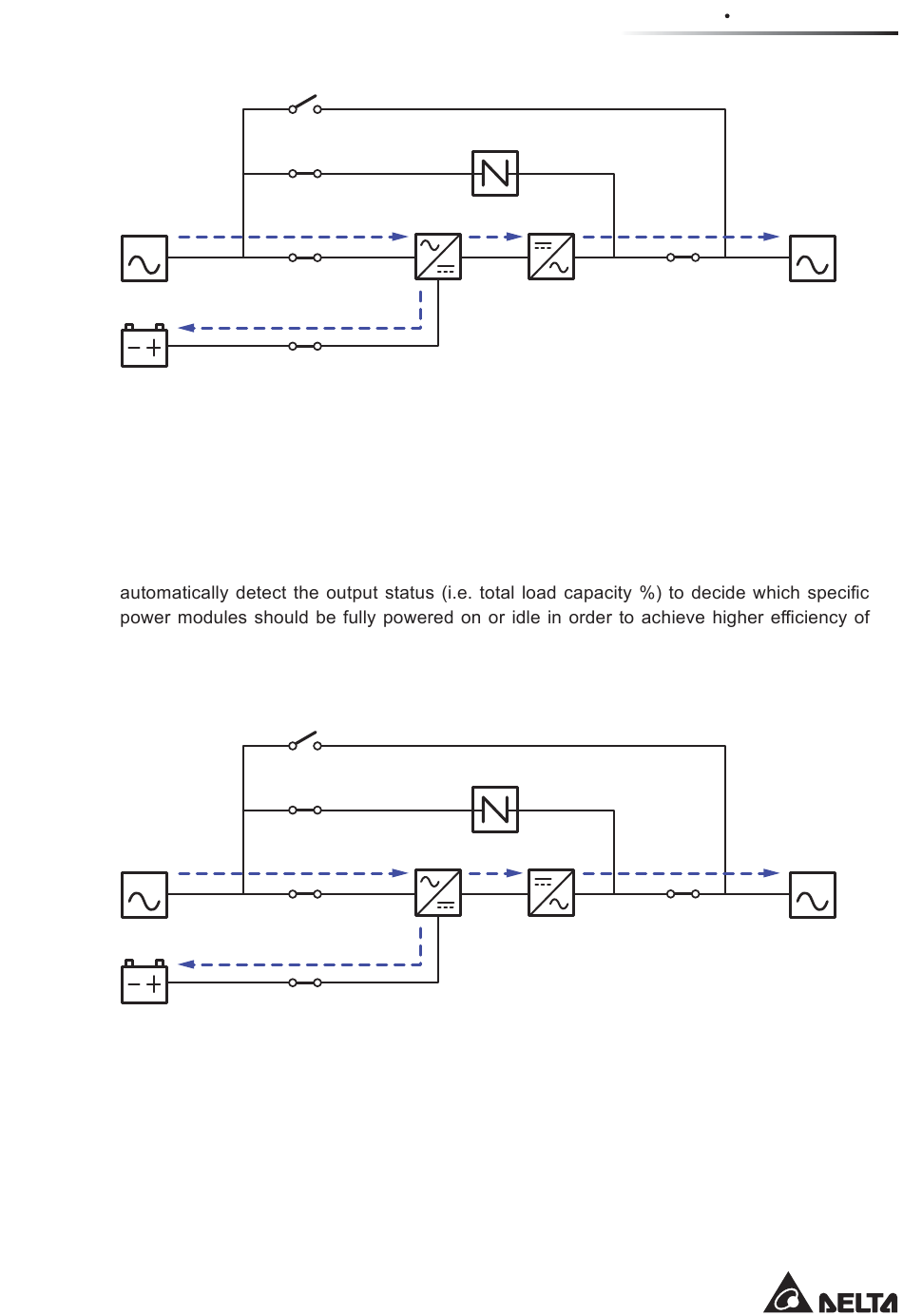

(Figure 3-6: Frequency Conversion Mode Diagram_ Single Input Single Unit)

3.1.7 Green Mode_ Single Input_ Single Unit

To activate Green mode, please refer to 6.2.7 Green Mode Start-up Procedures, 7.6 Main
Screen and 7.10.2 Mode Setting.
Green mode is the same as On-Line mode, but the difference is that the system will
the UPS. For the Green mode diagram, please see Figure 3-7. During Green mode, the
UPS's tri-color LED illuminates green and the text 'Green' appears in the upper right corner
of the screen.
MAIN
Batteries
Q3
Q2
Rectifier
Q1
Q5
Q3
Q2
Rectifier
Q1
Q5
(Figure 3-7: Green Mode Diagram_ Single Input Single Unit)
Static Switch
Inverter
Static Switch
Inverter
3-7
3 Operation Modes
LOAD
Q4
LOAD
Q4
