Options
A.2
Conventional Options
A.2.1 Reed-Solomon Codec
The modem must have the Reed-Solomon PCB installed to access this feature. The
Reed-Solomon Codec PCB is a 4.75" x 6.00" (12.07 x 15.24 cm) daughter card that is
located on the main PCB (Figure A-14).
A–60
T X R E E D -SO LO M O N
R X R E E D -SO LO M O N

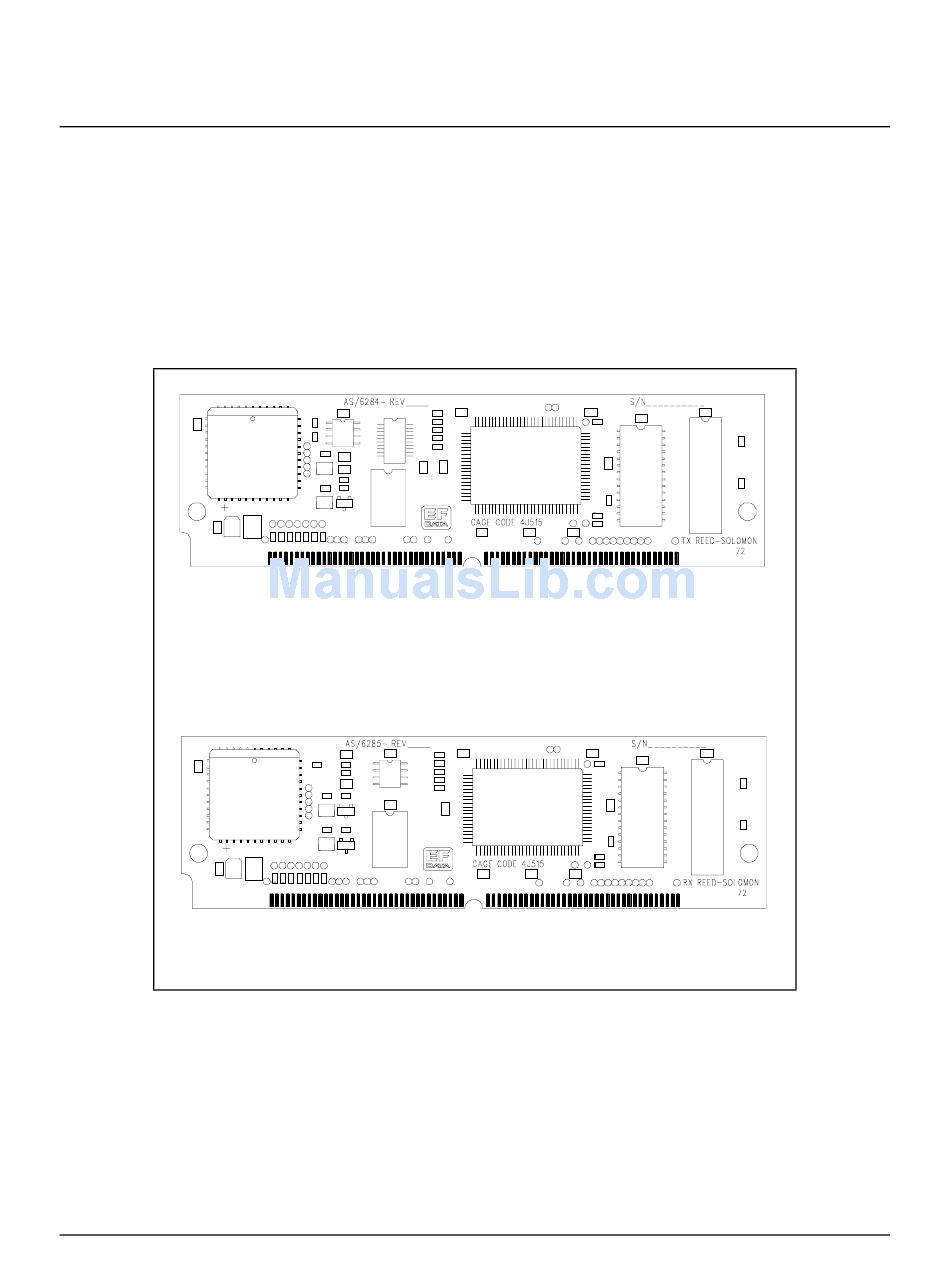

Figure A-14. Reed-Solomon PCB (AS/5304-1)
SDM-300A Satellite Modem
Rev. 4
