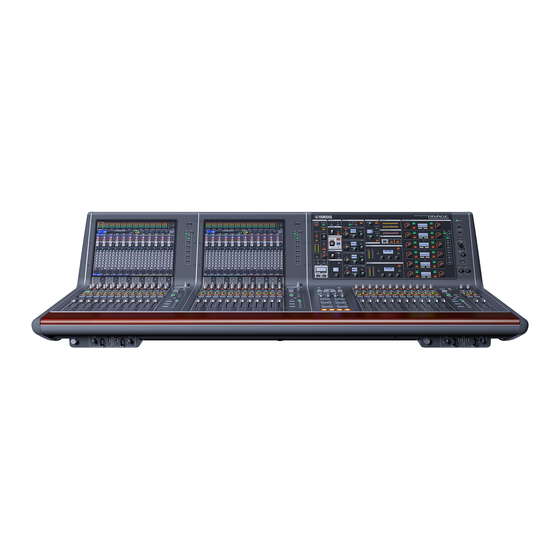

Yamaha RIVAGE PM10 Operation Manual

Digital mixing system.
Hide thumbs

Advertisement

Operation Manual
Part 1: Overview
Part 2: Operations
EN

Advertisement

Table of Contents

   Related Manuals for Yamaha RIVAGE PM10

   Summary of Contents for Yamaha RIVAGE PM10

  • Page 1 Operation Manual Part 1: Overview Part 2: Operations...
  • Page 2 ) ...Press this button to view a function tree diagram. Since an item is provided for each function screen, you can quickly access an This guide provides an overview of the RIVAGE PM10 system, and explains step by step how to set explanation for the function of interest.
  • Page 3: Table Of Contents

    Settings Files ....................45 Word Clock.....................18 Data handled by a settings file ................45 Word clock in the RIVAGE PM10 system.............. 18 About the sampling rate converter (SRC)............. 18 Conceptual Diagram of Memory..............47 RIVAGE PM10 System Function List ..............19 Scene Memory ....................
  • Page 4 CONTENTS Component Structure Component Structure The RIVAGE PM10 system uses a modular architecture, allowing you to flexibly design a system of the appropriate size and structure. The following components are included in the RIVAGE PM10 system. Control surface DSP engine...
  • Page 5: Control Surface

    • 12 x 3 bays + 2 (total 38) faders (CS-R10) 12 x 2 bays + 2 (total 26) faders (CS-R10-S) • The full-function Selected Channel section acclaimed on Yamaha digital mixers • A user interface that allows touch operation on large LCD panels Jack list •...
  • Page 6 TYPE A USB 3 (rear) RECORDING TYPE A USB D-Sub 25P (Female) Front panel VIDEO OUT DVI-D NETWORK (PC) etherCON CAT5 LAMP XLR-4-31 Type AC INLET V-Lock Type Slot list Rear panel Slot Number MY CARD SLOT RIVAGE PM10 Operation Manual...
  • Page 7: Monitor

    Bay C Selected Channel section You can connect a computer with RIVAGE PM10 Editor installed (called PM10 Editor elsewhere in this book) to a DSP engine or a control surface. If you connect it to a DSP engine, you can control the entire system without a control surface.
  • Page 8: Dsp Engine

    CONTENTS Component Structure  DSP engine (DSP-R10) DSP engine (DSP-R10) Jack list This is a 144-input, 72-mix, 36-matrix, 2-stereo DSP engine that performs all of the RIVAGE PM10 Jack Connector Number of jacks system’s audio processing such as mixing and plug-ins.
  • Page 9: I/o Rack (rpio622)

    * Support is planned in a future update. general-purpose I/O. HY card slot 1 is 256-in/out, and HY card slot 2 is 128-in/out. Slot list Slot Number RY CARD SLOT MY CARD SLOT HY CARD SLOT RIVAGE PM10 Operation Manual...
  • Page 10: Dsp Engine

    HY card slot 1 on the I/O rack is for only a TWINLANe network card. HY card slot 2 can be used as a general-purpose I/O. HY card slot 1 features 256-in/outs, and HY card slot 2 features 128-in/outs. Rear panel RIVAGE PM10 Operation Manual...
  • Page 11 • Please refer to the owner’s manual supplied with the host device for information on installing the I/O cards. • For detailed information on I/O card settings, refer to the owner’s manual for the I/O card. • For the latest information on which I/O cards can be used with the system, visit the Yamaha Pro Audio website at: http://www.yamahaproaudio.com/...
  • Page 12 TWINLANe Network  TWINLANe network Connecting a TWINLANe network card TWINLANe Network The TWINLANe network card can be used with the RIVAGE PM10 system. TWINLANe is a proprietary Yamaha network protocol for transferring multiple channels of digital TWINLANe network card...
  • Page 13 • Normal situation 400 ch • When a cable is broken 400 ch Even if a cable is severed at one point, the signal will be re-routed automatically and communication will continue without interruption. RIVAGE PM10 Operation Manual...
  • Page 14 CONTENTS I/O and Routing Structure  System-wide signal flow I/O and Routing Structure The following diagram shows the signal flow of the entire RIVAGE PM10 system. System-wide signal flow I/O Rack I/O Rack TWINLANe Network (400 ch) (RPio622) (RPio622) Inputs...
  • Page 15 *2) Specifies the number of channels that are output to the TWINLANe network (turn on/off in 16-channel *2) Specifies the number of channels that are output to the TWINLANe network (turn on/off in 16-channel units for each slot). units for each slot). RIVAGE PM10 Operation Manual...
  • Page 16 About Connections RY card RY card RY card About Connections The diagram below shows typical connections for the RIVAGE PM10 system. Equipment can be combined in various ways to construct small systems or large systems. I/O Rack I/O Rack I/O Rack...
  • Page 17 DSP engine if the power to the control surface is turned off. NOTE You can use only one instance of PM10 Editor per system. Do not connect two or more computers to the system. DSP Engine Console Network Control Surface RIVAGE PM10 Operation Manual...
  • Page 18 WORD CLOCK IN is selected The DSP engine will be the clock slave of the The input SRC converts the signal to the system clock of the RIVAGE PM10 system. TWINLANe network The DSP engine will be the clock master for...
  • Page 19 CONTENTS RIVAGE PM10 System Function List RIVAGE PM10 System Function List Click a function (blue text) to see a detailed explanation of that function. I/O Rack I/O Rack TWINLANe Network (400 ch) (RPio622) (RPio622) Inputs Outputs (HY256-TL) (HY256-TL) DSP Engine (DSP-R10)
  • Page 20 RY16-AE METER slot1 input control the sound’s “depth, space, and air. ” In the RIVAGE PM10 system, this is provided as DECODE standard on the RY16-ML-SILK and on all the OMNI INPUT channels on the rear panel of the CS-R10.
  • Page 21 PLUG-IN 1 PLUG-IN 2 PLUG-IN 3 PLUG-IN 4 PLUG-IN 1 PLUG-IN 2 PLUG-IN 3 PLUG-IN 4 original. INSERT 2 LEGACY This is the standard EQ that has been provided on Yamaha digital mixers since the PM1D and PM5D. INSERT 1 DIRECT OUT LEVEL/...
  • Page 22 DIRECT OUT The available dynamics types include: DIRECT OUT LEGACY COMP This is the standard compressor that has been provided on Yamaha CH ON CH DCA 1-24 CH FADER PRE FILTER LEVEL digital mixers since the PM1D and PM5D.
  • Page 23 If channels are paired, the level response of their balance will be nominal at center and +3 dB at far left or right. If two channels are paired, all of their parameters except for delay are linked. Library The “INPUT CHANNEL LIBRARY” lets you store and recall various input channel parameters. RIVAGE PM10 Operation Manual...
  • Page 24 1/12 octave steps, but if you need more precise adjustment, you can set it in 1/24 octave steps. Band 1 can be switched to L SHELF (Low Shelving) and band 8 can be switched to H SHELF (High Shelving). The selectable EQ types are the same as for input channels (page 21). RIVAGE PM10 Operation Manual...
  • Page 25 You can set the send point selected here to PRE or POST using the PRE button. You can select each send point on the BUS SETUP screen. POST PRE FILTER POST FADER PRE EQ POST ON PRE DYN PRE DELAY PRE FADER RIVAGE PM10 Operation Manual...
  • Page 26 GATE and COMP. Two types of compressor are provided: LEGACY COMP and COMP 260. Two sets of dynamics parameter settings (A and B) can be saved for convenient comparison. The selectable dynamics types are the same as for input channels (page 22). RIVAGE PM10 Operation Manual...
  • Page 27 GATE and COMP. Two types of compressor are provided: LEGACY COMP and COMP 260. Two sets of dynamics parameter settings (A and B) can be saved for convenient comparison. The selectable dynamics types are the same as for input channels (page 22). RIVAGE PM10 Operation Manual...
  • Page 28 You can set the send point selected here to PRE or POST using the PRE button. You can select each send point on the BUS SETUP screen. POST PRE FILTER POST FADER PRE EQ POST ON PRE DYN PRE DELAY PRE FADER RIVAGE PM10 Operation Manual...
  • Page 29 METER (HY256-TL) DELAY (MAX1000ms) GAIN TRIM OUTPUT ST OUT ST A/B PATCH (HY256-TL) MY Card Slot MY-XXX METER MATRIX OUT DELAY MATRIX (MAX1000ms) GAIN TRIM 1-36 HY Card Slot HY-XXX METER CUE OUT MONITOR MONITOR OUT RIVAGE PM10 Operation Manual...
  • Page 30 Delay caused by inserts in input channels (example) Before compensation After compensation Delay Compensation Insert1 +102 10 samples samples 10 samples 112 samples 10+102 Insert1 Insert2 56 samples 56 samples samples 112 samples 112 samples 56+56+0 RIVAGE PM10 Operation Manual...
  • Page 31 Monitor assignments and on/off switching can also be assigned to a USER DEFINED key. Monitor circuit structure This consists of three channels: L-channel, R-channel, and CENTER channel. RIVAGE PM10 Operation Manual...
  • Page 32 Allows you to delay the cue signal. You can specify up to 1000 msec. MONITOR OUT, CUE OUT, or PHONES OUT for auditioning. The RIVAGE PM10 system provides two cue outputs, CUE A and CUE B. INSERT A plug-in, GEQ, or PEQ can be inserted. This is a single insert point which is fixed at PRE EQ...
  • Page 33 [CUE] key is pressed is output, and the other channels are muted. The signal of a channel whose [CUE] key is pressed can also be monitored from the CUE OUT The RIVAGE PM10 features two oscillators that output individual sine waves with different jacks, MONITOR OUT jacks, and PHONES jack.
  • Page 34 • Talkback dimmer for MIX, MATRIX, and STEREO Temporarily attenuates the volume of each MIX, MATRIX, and STEREO bus output signal so that excessive output from these buses will not make the talkback inaudible. RIVAGE PM10 Operation Manual...
  • Page 35 DCA/Mute Groups GEQ/PEQ/Automixer The RIVAGE PM10 system provides 24 DCAs and 12 mute groups. A group name can be assigned The RIVAGE PM10 system provides 31-band GEQ, Flex15 GEQ, 8-band PEQ and Automixer.. Each to each DCA and mute group.
  • Page 36: Plug-in Type List

    Plug-in type Explanation of DSP tempo The RIVAGE PM10 system provides 49 types of plug-in, including the Rupert EQ 773 and Rupert function resources Comp 830 designed in a collaboration with Rupert Neve Designs, and the VSS4HD and NonLin 2 A 2-in/2-out reverb algorithm that provides a made by TC Electronic.
  • Page 37 Models a console EQ module that Rupert Neve Amp Simulate 1-in/2-out guitar amp simulator. – – Stereo designed in the 1970s. Rupert EQ 810 Dual Models a console EQ module that Rupert Neve – designed in the 1980s. Stereo RIVAGE PM10 Operation Manual...
  • Page 38 The RIVAGE PM10 system provides a 121-band realtime analyzer (also known as a spectrum This mastering plug-in emulates the tape analyzer). The RTA can be displayed in a dedicated RTA screen, or displayed in the GEQ/PEQ compression created by two open reel tape OpenDeck –...
  • Page 39 CONTENTS RTA (Realtime Analyzer)  Plug-in type list  RTA display screen in EQ settings RIVAGE PM10 Operation Manual...
  • Page 40 The RIVAGE PM10 system supports WAV (uncompressed PCM) and MP3 (MPEG-1 Audio Layer- * The number of channels available for recording and playback varies depending on the specifications of 3) file formats for recording and playback.
  • Page 41: Twinlane Network

    Dante network Record Playback Computer with Computer with Computer with AIC128-D card AIC128-D card AIC128-D card installed installed installed DAW software DAW software DAW software (such as Nuendo Live) (such as Nuendo Live) (such as Nuendo Live) RIVAGE PM10 Operation Manual...
  • Page 42 Input Ch 2 * Virtual Sound Check • Each channel can individually be set to ON/OFF when switching to virtual sound check. This allows a virtual sound check that mixes playback from the recorder with actual stage inputs. RIVAGE PM10 Operation Manual...
  • Page 43 The RIVAGE PM10 system can use MIDI to perform the following operations. • Program Change transmission and reception When you recall a specific scene on the RIVAGE PM10 system, a Program Change message of the corresponding number can be transmitted to an external device. Conversely, the corresponding scene can be recalled when the corresponding Program Change message is received from an external device.
  • Page 44 For each bay, there are 12 custom fader banks that allow you to combine channels regardless of their type. The RIVAGE PM10 system lets you customize the working environment to your preferences. The • BAY LINK main customizations are as follows.
  • Page 45 MIXING DATA Settings Files  Head amp settings System settings data of a system constructed with the RIVAGE PM10 can be saved on a USB flash  INPUT CH Input channel mixing data drive as a settings file. The settings file will have an extension of “.PM10ALL. ”...
  • Page 46 Dynamics library settings GEQ library settings PLUG-IN Plug-in library settings NAME Name library settings DCA NAME/ASSIGN DCA Assign library settings MUTE NAME/ASSIGN Mute Group Assign library settings USER SETUP User Setup library settings OVERLAY Overlay library settings RIVAGE PM10 Operation Manual...
  • Page 47 [UPDATE] Create New [STORE] CH. LIBRARY OVERLAY OVERLAY FILTER LIBRARY OFFSET VALUES STORE WITH OVERLAY APPLIED Actual Value (DSP&UI) Current Data NOTE For information regarding data that is not stored in scene memories, refer to page RIVAGE PM10 Operation Manual...
  • Page 48 CONTENTS Conceptual Diagram of Memory The scene memories of the RIVAGE PM10 system hold mixing data such as channel fader levels and • Recall Safe function EQ, as well as all of the following: Recall Safe is a function that protects the parameters of the current mix from being affected by a •...
  • Page 49 Recall Safe. The Isolate on/off parameter is provided on each of the channels Input Ch 1 – 144, Mix 1 – 72, Matrix 1 – 36, and Stereo A/B. RIVAGE PM10 Operation Manual...
  • Page 50 The settings of the Fade function can be made independently for each scene. On the RIVAGE PM10 system, scene numbers consist of an integer portion and a decimal portion, and can be assigned as desired. One way of organizing scenes would be to create integer-numbered ...
  • Page 51 CONTENTS OVERLAY To troubleshoot these types of level issues, the RIVAGE PM10 system now features the Overlay OVERLAY function, in addition to the conventional Global Paste function. The Global Paste function enables you to paste and write a new value onto scene data, which is useful as a “permanent”...
  • Page 52 Depending on the environment in which you use the system, discrepancies may occur in the motion of the motorized faders. You can use the Calibration function to correct these discrepancies. The RIVAGE PM10 system provides two types of fader calibration function: “Motor Drive Calibration” which automatically optimizes the fader motor movement, and “Positioning Calibration” which aligns the fader positions.
  • Page 53 Meter area ....................81 Patching the input ports..................130 Main area....................81 Patching the output ports..................131 Menu bar ....................82 Changing the name .................... 132 Channel name area ................... 83 Port-to-port ......................134 Port-to-port patching ................134 RIVAGE PM10 Operation Manual...
  • Page 54: Stereo Bus

    Patching multiple Direct Outs simultaneously ......... 186 Using the 8BandPEQ................223 DELAY......................... 187 Automixer ......................225 About delay ..................... 187 Theory of Automixer operation ..............225 Using delay....................187 Inserting Automixer into a channel ............226 Controlling the Automixer parameters............. 228 RIVAGE PM10 Operation Manual...
  • Page 55 Recording audio to a USB flash drive ............. 269 Playing back audio files from a USB flash drive........271 Saving the RIVAGE PM10 system’s settings on a USB flash drive..... 309 Editing the title list..................273 Loading a file from a USB flash drive ..............312 Multitrack recording/virtual sound check............
  • Page 56 CONTENTS FUNCTION MAP Contents (Part 2: Operations) MIDI/GPI ......................335 Setup Procedure and Basic Operation of the RIVAGE PM10 Editor... 362 About MIDI ......................335 About the RIVAGE PM10 Editor ................362 Basic MIDI Settings..................... 335 On-line monitoring/operation ................362 Using Program Changes to recall scenes ............337 Off-line editing/synchronization ................
  • Page 57 DYNAMICS LIBRARY BUS SETUP OUTPUT PLUG-IN LIBRARY MIDI / GPI DIRECT OUT GEQ LIBRARY PREFERENCES RECORDING NAME LIBRARY SEL LINK NAME DCA NAME/ASSIGN LIBRARY BAY LINK PORT TO PORT MUTE NAME/ASSIGN LIBRARY CUSTOM FADER USER SETUP LIBRARY RIVAGE PM10 Operation Manual...
  • Page 58 Touch Screen section ➔ page 64 Channel Strip section ➔ page 65 Selected Channel section ➔ page 59 UTILITY section ➔ page 62 SCENE MEMORY section ➔ page 63 USER DEFINED KEYS/KNOBS section ➔ page 63 RIVAGE PM10 Operation Manual...
  • Page 59 Switches Mute Safe on or off. The Mute Safe function protects a channel from mute operations. TO ST [A]/[B] keys Switch on or off the signal sent from the channel to stereo bus A or B. RIVAGE PM10 Operation Manual...
  • Page 60 Indicates the LPF and HPF settings. DELAY display Indicates the delay value. LPF/HPF [ON] keys Switch the LPF and HPF on or off respectively. [DELAY] knob Sets the delay value. LPF/HPF [SLOPE] keys Switch the LPF and HPF slope settings respectively. RIVAGE PM10 Operation Manual...
  • Page 61 MIX/MATRIX SENDS [1-12]/[13-24]/[25-36]/ Set parameters that are indicated on [37-48]/[49-60]/[61-72] keys the DYNAMICS display. Selects a bank for the send destination bus. DYNAMICS 1/2 display Indicates the Dynamics parameters. DYNAMICS 1/2 [ON] key Switches Dynamics on or off. RIVAGE PM10 Operation Manual...
  • Page 62 Yamaha Pro Audio website at: http://www.yamahaproaudio.com/ [SYSTEM] key Press this key to display information about the RIVAGE PM10 system on the touch screens. Press and hold down the key for two seconds or longer to shut down the control section of the console (page 78).
  • Page 63 [RECALL] key to switch Overlay on or off. the user. Enables you to recall a stored scene While Overlay is turned on, press and from scene memory. hold down the [OVERLAY] key to enter Overlay edit mode. RIVAGE PM10 Operation Manual...
  • Page 64 • Before use, be sure to remove the transparent film applied to the touch screens to protect them during transport. NOTICE Never use a sharp or pointed object such as your fingernail to operate the touch screens. Doing so may scratch the screens and render the touch screens inoperable. RIVAGE PM10 Operation Manual...
  • Page 65 [CUE] key Executes the function as assigned by Selects the channel for cue. the user. You can assign one of the following functions: • INPUT A/B • ISOLATE • ALTERNATE CUE • ENCODER PARAMETER • GC ON/OFF RIVAGE PM10 Operation Manual...
  • Page 66 (A ➝ B ➝ A&B ➝ A) [SENDS ON FADER] key Turns SENDS ON FADER mode on and off. INPUT [1-72]/[73-144] keys Enable you to select an input layer. OUTPUT [MIX]/[MATRIX] keys Enable you to select an output layer. RIVAGE PM10 Operation Manual...
  • Page 67 To put away the hanger, turn the knob clockwise to unlock it, and then push it in. LAMP jacks These four 4-pin female XLR output connectors are used to supply power to Yamaha LA1L PHONES A/B [LEVEL] knobs gooseneck lamps supplied with the unit (CS-R10: 4 jacks; CS-R10-S: 3 jacks).
  • Page 68: My Card Slot

    Use these ports to connect a USB storage device such as a flash drive, USB mouse, or USB keyboard. WORD CLOCK OUT connector This BNC connector is used to transmit word clock signal to an external device. RIVAGE PM10 Operation Manual...
  • Page 69 If the problem persists after you take the following actions, please contact your Yamaha dealer. • Turn the power to the RIVAGE PM10 system off and then on. • Make sure that the cables are connected properly.
  • Page 70 Precautions regarding using the NETWORK connector Each component in the RIVAGE PM10 system features a NETWORK connector on the rear panel. Do not connect these connectors to any unsupported devices (such as a computer you might use to update the firmware or for external control).
  • Page 71 For example, if you select LAYER [IN 1-12], you will be able to use the [SEL]1 key to control input channel 1. If you select LAYER [IN 25-36], you will be able to use the same [SEL]1 key to control input channel 25. RIVAGE PM10 Operation Manual...
  • Page 72 Selected channel concepts INPUT [1-72]/[73-144] keys Enable you to select an input layer. The RIVAGE PM10 system enables you to select a specific channel to control or for which to display mixing parameters. OUTPUT [MIX]/[MATRIX] keys Enable you to select an output layer.
  • Page 73 If you use the [FADER BANK]>[SEL] LINK function specified in the PREFERENCES window, you will be able to automatically switch to the selected channel in each bank (a channel selected most recently) while switching between fader banks (page 319). RIVAGE PM10 Operation Manual...
  • Page 74 [SEL] keys (hardware), and to set up the link between [SEL] keys and the bays. You can also specify whether the hardware [SEL] key selection will be linked with cue operations (page 318). On-screen On-screen On-screen Selected channel selected channel selected channel selected channel via hardware RIVAGE PM10 Operation Manual...
  • Page 75 • A link between SCREEN SEL and CH SEL, and the [CUE]-[SEL] LINK setting can be turned on or off on each bay independently, regardless of the Bay Link status. Press the PREFERENCES button to access the PREFERENCES popup window. RIVAGE PM10 Operation Manual...
  • Page 76 • If Bay Link mode is changed while DCA channels are being rolled out, the DCA roll-out operation will be canceled. • If the Bay Link setting is changed for a bay on which the SET BY SEL button is turned on, SET BY SEL will be turned off. RIVAGE PM10 Operation Manual...
  • Page 77 • Selection of the fader layer touch screen while continuing to press down. ■ [SYSTEM] key operations Press this key to display information about the RIVAGE PM10 system on the center touch screens. The SYSTEM CONFIG popup window (page 106) will open.
  • Page 78 Shut down (power-off procedure) On-screen user interface Before you shut down the control surface, Yamaha recommends that you store the current status to This section explains various user interface components shown in the touch screens, and how to use scene memory.
  • Page 79 The highlighted item in the middle of the list is the item that is selected for operation. Press the screen encoders located below the list to scroll the list upward or downward. NOTE You can also scroll the list up or down by using the [TOUCH AND TURN] knob. RIVAGE PM10 Operation Manual...
  • Page 80 Dialog boxes Dialog boxes similar to the following enable you to confirm operations you just performed. Press the OK button to execute the operation. The operation will be canceled if you press the CANCEL button. RIVAGE PM10 Operation Manual...
  • Page 81 For details about this screen, see page Popup Main area windows ■ OVERVIEW screen This screen shows the main parameters of 12 channels selected as a layer. Channel name area For details about this screen, see page RIVAGE PM10 Operation Manual...
  • Page 82 When you press this button, the RACK & REC screen will appear, enabling you to configure plug-ins. You can also make settings for the recorder function (USB), which allows you to record and play back audio files. RIVAGE PM10 Operation Manual...
  • Page 83 SETUP When you press this button, the SETUP screen will appear, enabling you to make basic and user-specific settings for the RIVAGE PM10 system. Press the channel name area to switch the selected channel/parameter on the screen. If you switch fader layers, the indication in this area will reflect the change in layer selection. In this PATCH way, you can access any channel on screen.
  • Page 84 Deletes and copies the string of characters that are selected (highlighted) in the text box. • PASTE button Inserts the string of characters copied by COPY or CUT at the cursor location (or overwrites the currently-selected range of characters). RIVAGE PM10 Operation Manual...
  • Page 85 • If no data is stored in buffer memory, or if the data in buffer memory is not compatible with the data in the paste destination, the PASTE button will be disabled. RIVAGE PM10 Operation Manual...
  • Page 86 Press the COMPARE button to compare the first option and the current (second) option. The first option will be applied to the system. At this time, the second option will be stored in buffer memory. RIVAGE PM10 Operation Manual...
  • Page 87 Pressing the COMPARE button repeatedly will alternate between the two options. Unlike the paste operation, you can revert to the previous setting at any time unless buffer memory has been overwritten. NOTE You can also paste the option stored in buffer memory to another appropriate paste destination. RIVAGE PM10 Operation Manual...
  • Page 88 NOTE The right column in the list shows information related to the corresponding setting data (such as the type of output channels, Dynamics or effect type used). RECALL button Recalls a preset for the currently-selected item. RIVAGE PM10 Operation Manual...
  • Page 89 CANCEL button instead of the OK button. NOTE You can change the title of the setting data after storing it by pressing on the setting data title in the list to open the TITLE EDIT popup window. RIVAGE PM10 Operation Manual...
  • Page 90 POST FADER POST ON PRE FILTER PRE EQ PRE DYN 1 to MIX 2(MATRIX 2) PRE DYN 2 R CH PRE FADER POST FADER POST ON BALANCE to MIX 3- 72(MATRIX 3- 36) (same as above ) RIVAGE PM10 Operation Manual...
  • Page 91 MATRIX1 LEVEL Select the channel pairing direction, and then press the OK button. MATRIX2 To defeat pairing, press the pair button once again. MATRIX (STEREO) to OUTPUT PATCH LEVEL OUTPUT PATCH MATRIX1 BALANCE LEVEL MATRIX2 BALANCE RIVAGE PM10 Operation Manual...
  • Page 92 CONTENTS FUNCTION MAP Basic Operations  Pairing A window will be displayed, asking you to confirm that you want to defeat pairing. Press the OK button. The pairing setting will be defeated. RIVAGE PM10 Operation Manual...
  • Page 93 NOTE • If channels are paired for stereo, the PAN knob will be replaced with the BALANCE knob. • If MIX/MATRIX channels are paired, the OUTPUT BALANCE knob will appear for the selected channel. RIVAGE PM10 Operation Manual...
  • Page 94 “RED” for sparkling ■ PATCH field energy. INPUT A/B switch buttons Switch between INPUT A and INPUT B. PATCH popup button Press this button to access the patching popup window. The button will indicate the patch setting. RIVAGE PM10 Operation Manual...
  • Page 95 Direct Out patch popup button Press this button to access the INSERT/D.OUT EQ ON/OFF button (1CH) popup window (page 181). The Direct Out Switches the EQ on or off. level value will appear to the left of the button. RIVAGE PM10 Operation Manual...
  • Page 96 This field displays the DCA or mute group to which the channel is assigned. DCA/mute group popup button Indicates the DCA and mute group to which the channel is assigned. Press this button to access the DCA/MUTE ASSIGN (1CH) popup window. RIVAGE PM10 Operation Manual...
  • Page 97 For details on the abbreviation of the dynamics processor types, refer to page 177. ON button Switches the dynamics processor on or off. Threshold Specifies the threshold. Parameters Indicate the values of parameters that vary depending on the currently-selected dynamics type. RIVAGE PM10 Operation Manual...
  • Page 98 SENDS FROM popup window. If a MATRIX channel is selected, press the button to open the SENDS FROM popup window. On with PRE On with POST Off with PRE Off with POST RIVAGE PM10 Operation Manual...
  • Page 99 Selected channel M/S indicator Appears when the M/S Decode Indicator function is enabled. Unselected channel Channel with Isolate ON Channel with Cue ON Indicating the status of patching Indicates L/R channel numbers if the channels are paired. RIVAGE PM10 Operation Manual...
  • Page 100 This field displays the delay status of the corresponding input channel or output channels. Press this abbreviated name and GATE indicators that are displayed, see (page 178). field to open the DELAY popup (12CH) popup window. DELAY ON/OFF indicator Indicates the on/off status of the delay. RIVAGE PM10 Operation Manual...
  • Page 101 A mute group (1–12) to which the channel is assigned is displayed on the third row in this field. If the channel has been temporarily removed (SAFE) from the mute group, the corresponding indicator will be highlighted. Press this field to open the DCA/MUTE ASSIGN (1CH) popup window (page 210). RIVAGE PM10 Operation Manual...
  • Page 102 (page 122). The SETUP screen enables you to set various parameters that apply to the entire RIVAGE PM10 system. Press the SETUP button on the menu bar to access the SETUP screen. The screen contains BUS SETUP popup button...
  • Page 103 Press this button to access the SAVE/LOAD popup window, in which you can save or load ■ CONSOLE LOCK button various system data sets configured on the RIVAGE PM10 system. Executes the Console Lock function. If the console password has been set, pressing this button will open the PASSWORD popup window.
  • Page 104 When the control surface detects that a new device (DSP engine, I/O rack) is connected, it RIVAGE PM10 system, and the audio channels that are assigned to the TWINLANe network. As determines whether data synchronization is needed; if data synchronization is needed, the necessary, you can also set the internal parameters of each component.
  • Page 105 Press the SYSTEM CONFIG button to access the SYSTEM CONFIG popup window. OTHER DSP button When you press this button, a popup window appears, in which you can assign the number of channels used by other DSPs. RIVAGE PM10 Operation Manual...
  • Page 106 POWER A and B (green: power on, red: power off). The device icon indicates the status of +48V MASTER (red: on; grey: off), and also the status of the device (green: normal; yellow: abnormal; red: critical error). The number of output channels for the TWINLANe network is shown below the button. RIVAGE PM10 Operation Manual...
  • Page 107 Press this button to open a popup window, in which you can switch the routing mode for HY MY SLOT (1–2) popup buttons slot 2. Press a button to open the MY CARD SELECT popup window, in which you can select a Mini- YGDAI card. RIVAGE PM10 Operation Manual...
  • Page 108 If you press a TWINLANe assignment button that is not assigned, a checkmark ( appears, indicating the assignment. Press the APPLY button to apply the channel settings to the TWINLANe network. RIVAGE PM10 Operation Manual...
  • Page 109 It also indicates the type of HY cards (MMF:HY256-TL; SMF:HY256-TL-SMF) and the total length of the cables. APPLY button When you press this button, the channel assignment number changes you made are applied to the TWINLANe network. RIVAGE PM10 Operation Manual...
  • Page 110 ....Currently assigned to the TWINLANe network Press the SYSTEM CONFIG button to access the SYSTEM CONFIG popup ....Currently assigned to the TWINLANe network, and selected for window. cancellation.....Currently not assigned to the TWINLANe network, and selected for assignment. RIVAGE PM10 Operation Manual...
  • Page 111 This function is not applicable if an MY card that does not support high sampling is specified. Switches phantom power (+48V) on or off. The I/Os for the control surface are assigned as part of the DSP engine on the RIVAGE PM10 A.GAIN knob system.
  • Page 112 Adjust the setting in 1.0 dB units by turning the knob, or adjust the setting in 0.1 dB units by turning the knob while pressing it. The current value is shown immediately below the knob. RIVAGE PM10 Operation Manual...
  • Page 113 Patch indication Indicates the channel that is patched. Level meter Shows the input level. SRC button Switches the sampling rate converter on/off for each pair of channels. Clock status indicator Indicates the status of the input signal. RIVAGE PM10 Operation Manual...
  • Page 114 If the scale is set to ms, the delay time value above the knob is not shown. PHASE button Switches the phase of the output signal. SRC button Switches the sampling rate converter on/off for each pair of channels. RIVAGE PM10 Operation Manual...
  • Page 115 Adjust the setting in 1.0 dB units by turning the knob, or adjust the setting in 0.1 dB units by turning the knob while pressing it. The current value is shown immediately Tabs below the knob. Switch the input and output display in units of eight channels. RIVAGE PM10 Operation Manual...
  • Page 116 This meter indicates the level of signals after passing through analog gain. SILK ON button Switches SILK on or off. RED/BLUE selection button Switches the character of Silk processing between the powerful BLUE and the sparkling RED. SILK [TEXTURE] knob Adjusts the TEXTURE parameter of Silk. RIVAGE PM10 Operation Manual...
  • Page 117 ■ Mounting the I/O rack Press the SETUP button on the menu bar to access the SETUP screen. Press the SYSTEM CONFIG button to access the SYSTEM CONFIG popup window. RIVAGE PM10 Operation Manual...
  • Page 118 119). If you want to add another I/O rack, repeat steps 3–4. Devices being edited offline are indicated as “VIRTUAL” in yellow. Press the I/O rack select popup button to access the I/O SELECT popup window. RIVAGE PM10 Operation Manual...
  • Page 119 When you press the button, the HY CARD SELECT popup window appears, in which you can select an HY card (page 121). Press the RY SLOT popup button to access the RY CARD SELECT popup window. RIVAGE PM10 Operation Manual...
  • Page 120 You will return to the I/O rack settings popup window. To cancel, press the CANCEL button. If you want to add another RY card, repeat steps 4–5. When you finish adding cards, press the × button to close the I/O rack settings window. RIVAGE PM10 Operation Manual...
  • Page 121 HY card select buttons Select the HY card that you want to use. BLANK button Use this button if you do not want to mount anything. Press the DELAY COMPENSATION button to open the DELAY COMPENSATION popup window. RIVAGE PM10 Operation Manual...
  • Page 122: Word Clock

    WORD CLOCK DELAY COMPENSATION popup window A TWINLANe network that features the RIVAGE PM10 system transfers not only audio and control signals, but also word clock. On a TWINLANe network, only one DSP engine can become the clock master. If two DSP engines are on the same network, one becomes the master and the other becomes a slave.
  • Page 123 RIVAGE PM10 system. If the sampling frequency is close, this status may be displayed even if not synchronized.
  • Page 124 A confirmation dialog box will appear if you attempt to change the clock source setting. To close the WORD CLOCK popup window, press the “x” symbol located in the upper right. The system will return to the SETUP screen. RIVAGE PM10 Operation Manual...
  • Page 125 If the button is on, the signals routed to the corresponding channels will link with the TO the top of the window. STEREO pan setting. Tabs Enable you to select MIX1-36, MIX37-72, or MATRIX bus. Press the BUS SETUP tab. RIVAGE PM10 Operation Manual...
  • Page 126 Press the BUS SETUP button to open the BUS SETUP popup window. This window includes several pages, which you can switch between using the tabs located at the top of the window. Press the SEND POINT (INPUT) tab. The screen contains the following items. RIVAGE PM10 Operation Manual...
  • Page 127 Button Send Point PRE FILTER Immediately before the filter PRE EQ Immediately before the EQ PRE DYN1 Immediately before DYNAMICS1 PRE DYN2 Immediately before DYNAMICS2 PRE FADER Immediately before the fader RIVAGE PM10 Operation Manual...
  • Page 128 Immediately before the filter PRE EQ Immediately before the EQ Press the SEND POINT (OUTPUT) tab. PRE DYN Immediately before DYNAMICS The screen contains the following items. PRE DELAY Immediately before DELAY PRE FADER Immediately before the fader RIVAGE PM10 Operation Manual...
  • Page 129 Enable you to select the MATRIX bus channel as the signal destination for a single channel at a time. SEND TO [<<]/[>>] buttons Enable you to select the MATRIX bus channel as the signal destination for 12 channels at a time. Use the send point select buttons to specify the send point. RIVAGE PM10 Operation Manual...
  • Page 130 If you want to patch the input ports for an I/O rack while off-line, set the DSP engine as the word clock master temporarily to assign the I/O rack to the TWINLANe network band. RIVAGE PM10 Operation Manual...
  • Page 131 Indicates the channels that will be assigned to the output port. Grid This grid lets you patch output ports (horizontal lines) to output channels (vertical columns). Currently-patched grids are indicated by white squares. Press or click a desired grid to set or disable the patch. RIVAGE PM10 Operation Manual...
  • Page 132: Changing The Name

    HIDE ICON Button display the keyboard window or icon edit window, in which you can edit the name. Press this button to hide the icon. LIBRARY button Press this button to open the NAME library window. RIVAGE PM10 Operation Manual...
  • Page 133 Press the TAB button to switch to the next channel. You can also press the ENTER button to press the keyboard switch button in the upper part of the window. close the popup window in the same way as using the “x” symbol. RIVAGE PM10 Operation Manual...
  • Page 134 Port-to-port will be displayed in red. Input components/slots/channels This section indicates the type of the input component, slot number, and channel number for the input port. The abbreviations displayed in this section have the following meaning. • M1–M8 ......I/O rack 1–8 RIVAGE PM10 Operation Manual...
  • Page 135 Monitor signals can be sent to any desired output jack or output channel. If you are monitoring The RIVAGE PM10 system features two monitor outputs (MONITOR A and MONITOR B). You through headphones, make sure that your headphones are connected to the front panel can select the monitor source and set the output level for each monitor output individually.
  • Page 136 Press this button to interrupt the monitor signal by the cue signal. If this button is on and the cue is enabled, the cue signal will be sent to the monitor output. Meters This field indicates the output level of the monitor L/R/C channels. RIVAGE PM10 Operation Manual...
  • Page 137 Indicate the monitor output destination slot or port for the L, C and R channels respectively. Press these buttons to access the OUTPUT PATCH popup window. MONITOR OUTPUT button Switches Monitor Out on or off. MONITOR FADER LEVEL knobs Adjusts the monitor fader level. RIVAGE PM10 Operation Manual...
  • Page 138 Press this button to close the popup window and return to the previous screen. STEREO B L channel and STEREO B R channel signals TALKBACK TALKBACK signal DIRECT IN1-16 Signals directly input from the external terminals RIVAGE PM10 Operation Manual...
  • Page 139 Enable you to select to which channel (L/R/C) the monitor signal is input. CLEAR ALL button Press this button to clear all selections. CLOSE button Press this button to close the popup window and return to the previous screen. RIVAGE PM10 Operation Manual...
  • Page 140 When you have selected an output port, press the CLOSE button to close the popup window. In the same way, specify the output ports for MONITOR OUT L, R, and C. NOTE If desired, you can specify output ports only for MONITOR OUT L and R to monitor through two speakers. RIVAGE PM10 Operation Manual...
  • Page 141 Press the INSERT button to access the MONITOR INSERT popup window. Press the MONITOR popup button or the meter field to open the MONITOR If effects have already been inserted, the EDIT window for the plug-ins will appear. SETTINGS popup window. RIVAGE PM10 Operation Manual...
  • Page 142 Press the MOUNT popup button to access the INSERT MOUNT window. Press the desired insert plug-in button. Press the OK button. Edit the effect parameters as desired. For details on editing the effect parameters, refer to “Controlling the parameters of a plug-in” (page 234). RIVAGE PM10 Operation Manual...
  • Page 143 The cue/solo signals of DCAs make up this group. To enable Cue/Solo for this group, in the Channel Strip section, press the [DCA] key, and The RIVAGE PM10 features two cue outputs: CUE A and CUE B. then press the desired [CUE] key.
  • Page 144 CUE MODE buttons Enable you to specify the operation mode when multiple [CUE] keys are on. • MIX CUE mode.... All selected channels will be cue-monitored. • LAST CUE mode..Only most recently selected channel will be cue-monitored. RIVAGE PM10 Operation Manual...
  • Page 145 If this button is on, the TO STEREO PAN setting will be applied to the pan setting of the & signal sent from input channels to the CUE bus. • PFL TRIM knob Specifies the monitor levels when PFL is selected. Use the screen encoder to adjust the value. RIVAGE PM10 Operation Manual...
  • Page 146 • EQ ON button Switches the EQ on or off. CUE OUT PATCH button Press this button to access the PORT SELECT popup window, in which you can select output ports to patch to the cue out L/R channels. RIVAGE PM10 Operation Manual...
  • Page 147 Cue group to which the last-cued signal belongs will be turned on, allowing only the signals of that Cue group to be monitored. However, if CUE OPERATION MODE is set to BAY and if LAST CUE is selected, the cue setting in each bay will be active individually. RIVAGE PM10 Operation Manual...
  • Page 148 • You can also assign the function of the CLEAR CUE button to a USER DEFINED key If you want to exclude certain channels or groups from Solo operations, press (page 329). the SOLO SAFE popup button to open the SOLO SAFE popup window. RIVAGE PM10 Operation Manual...
  • Page 149 To defeat Solo, press the currently-on SOLO ON/OFF button once again. NOTE If you select the LAST CUE button to switch from LAST CUE mode to MIX CUE mode (or vice versa), all previously-enabled Cue (Solo) signals will be defeated. RIVAGE PM10 Operation Manual...
  • Page 150 OSCILLATOR popup button Enables you to access the OSCILLATOR popup window, in which you can make detailed The RIVAGE PM10 features two oscillators that output individual sine waves with different oscillator settings. frequencies to any buses. Also, LPF and HPF are provided for noise output.
  • Page 151 Enables you to set the oscillator parameters. The controllers and their functions in this field vary depending on the operating mode 1. The default frequency is 1 kHz for the odd channel and 400 Hz for the even channel. Two meters (odd and even) will be displayed. RIVAGE PM10 Operation Manual...
  • Page 152 The displayed parameters will vary depending on the oscillator selected in the MODE field. To control the knobs shown in the parameter field, use the corresponding screen encoders. Level Pink noise output INTERVAL WIDTH Time The BURST NOISE button is turned on. RIVAGE PM10 Operation Manual...
  • Page 153 Lights up when +48V phantom power is supplied to the TALKBACK jack. TALKBACK LEVEL knob Adjusts the input level of the mic connected to the TALKBACK jack. TALKBACK [ON] key Switches the Talkback function on or off. RIVAGE PM10 Operation Manual...
  • Page 154 • ANALOG GAIN knob Sets the analog gain of the TALKBACK jack. Use the screen encoder to adjust the value. • TALKBACK IN level meter Indicates the level of signals after the input gain at the TALKBACK jack. RIVAGE PM10 Operation Manual...
  • Page 155 • INPUT TO TALKBACK patch button Press the button to open the INPUT PATCH popup window, in which you can patch a desired input port to talkback. The selected port name will appear on the button. RIVAGE PM10 Operation Manual...
  • Page 156 +18 dB. Keep in mind that noise may be generated when using phantom power if there is a difference between the Hot and Cold output impedance of an external device connected to the INPUT jack. RIVAGE PM10 Operation Manual...
  • Page 157 If this button is on, you’ll be able to add a bus by using the corresponding [SEL] key. CLEAR ALL button Press this button to clear all selections. CLOSE button Press this button to close the popup window and return to the previous screen. RIVAGE PM10 Operation Manual...
  • Page 158 Adjusts the output level at the PHONES output jack. • PHONES LEVEL LINK (Headphone Level Link function) You can adjust the level of the signal sent to the PHONE output jack using the MONITOR LEVEL knob. RIVAGE PM10 Operation Manual...
  • Page 159 Indicates the mount status of the currently-selected rack. If nothing is selected, the button will indicate “BLANK. ” Press this button to display the window, in which you can set the insert for the PHONES signal. INSERT ON button Switches the insert on or off. RIVAGE PM10 Operation Manual...
  • Page 160 Press the RTA popup button to access the RTA popup window. RTA popup window The RIVAGE PM10 features a real time analyzer (RTA), which provides visual feedback of the frequency spectrum of cued sources for 1/12 octaves (121 bands). The RTA accepts a single-channel signal, and enables you to switch between inputs A and B. If you select A+B MIX, the signal with higher levels will be displayed.
  • Page 161 BALLISTICS field • BALLISTICS button If this button is on, you will be able to add rate of decay to the analyzed frequency response graph. • FAST/SLOW switch button Switches the decay rate of graph rendering (FAST/SLOW). RIVAGE PM10 Operation Manual...
  • Page 162 If this button is on, you will be able to add rate of decay to the analyzed frequency response graph. graph. • FAST/SLOW switch button • FAST/SLOW switch button Switches the decay rate of graph rendering (FAST/SLOW). Switches the decay rate of graph rendering (FAST/SLOW). RIVAGE PM10 Operation Manual...
  • Page 163 This screen shows the meters for all input channels, output channels, Stereo A/B, DCA, and Cue A/ To switch the metering point, use the METERING POINT field (page 165). B simultaneously. NOTE If you press part of the cue meters when the cue is on, the cue will be canceled. RIVAGE PM10 Operation Manual...
  • Page 164 FULL SCREEN METER (INPUT) screen This screen shows the meters and faders for all input channels. FULL SCREEN METER (DCA) screen This screen shows the meters for DCA, STEREO A/B, CUE A/B, and MONITOR A/B simultaneously. RIVAGE PM10 Operation Manual...
  • Page 165 If you turn the channel [ON] key off, the corresponding fader will be grayed out. ISOLATE indicator Indicates the Isolate mode status with a red frame. NOTE Press any part of the meter area to recall the corresponding fader layer to the panel. RIVAGE PM10 Operation Manual...
  • Page 166 “BLUE” for solidity and power, and “RED” for sparkling energy. [DIGITAL GAIN] knob Sets the digital gain of the channel. GC indicator Lights up when GC (GAIN COMPENSATION) is enabled. ] (Phase) key Reverses the phase of the input signal. RIVAGE PM10 Operation Manual...
  • Page 167 Meter (channel input) This meter indicates the level after passing through GC (before D.GAIN). Meter (post digital gain) This meter indicates the level after passing through digital gain. button Switches the phase of the input signal. RIVAGE PM10 Operation Manual...
  • Page 168 When you finish making settings, press the X symbol in the upper right of the ANALOG GAIN knob in the window. SELECTED CHANNEL VIEW screen SILK [TEXTURE] knob in the SELECTED CHANNEL VIEW screen DIGITAL GAIN knob in the SELECTED CHANNEL VIEW screen RIVAGE PM10 Operation Manual...
  • Page 169 Signal level that flows on the TWINLANe network when gain compensation is on The RIVAGE PM10 features a full-parametric channel EQ (4-band for input and 8-band for output). If gain compensation is turned on, changing the analog gain will cause the signal being output to the...
  • Page 170 [ON] key Switches EQ on or off. [SHELF] key Switches the shelving filter on/off. Display Indicates the selected EQUALIZER parameter. [Q] knob Specifies the Q value. [FREQUENCY] knob Sets the frequency. [GAIN] knob Sets the gain. RIVAGE PM10 Operation Manual...
  • Page 171 LPF FREQUENCY knob Indicates the cutoff frequency of the LPF. Use the screen encoder to adjust the value. LPF type select button Enables you to set the LPF attenuation per octave to −6 dB/oct, or −12 dB/oct. RIVAGE PM10 Operation Manual...
  • Page 172 Turn on this button to switch the LOW band to a shelving type filter. HIGH SHELVING ON/OFF button Turn on this button to switch the HIGH band to a shelving type filter. BYPASS button Temporarily bypasses the EQ. RIVAGE PM10 Operation Manual...
  • Page 173 Enable you to select the channel that you want to operate. The current channel icon, channel number, channel name, and color appear on the button. EQ graph This field graphically indicates the approximate EQ/filter response. Tabs Use these tabs to select a channel that you want to view on the screen. RIVAGE PM10 Operation Manual...
  • Page 174 LEGACY COMP This is a standard compressor that has been equipped with many of DYNAMICS 1/2 IN LED Yamaha’s legacy digital mixers, such as PM1D and PM5D. Indicates the DYNAMICS input level. Comp 260 This is an analog-flavored compressor built using Yamaha’s proprietory DYNAMICS 1/2 GR LED VCM (Virtual Circuitry Modeling) technology.
  • Page 175 This orange bar graph indicates the amount of gain reduction produced by the dynamics processor. Dynamics processor type Indicates the abbreviated name of the currently-selected dynamics processor type. Threshold The horizontal line indicates the currently-specified threshold value and its approximate position in the GR meter. RIVAGE PM10 Operation Manual...
  • Page 176 • FREQUENCY knob NOTE Indicates the cutoff frequency of the filter. Use the You can copy and paste the parameters between Dynamics 1 and Dynamics 2. screen encoder to adjust the value. RIVAGE PM10 Operation Manual...
  • Page 177 Each abbreviated name means as follows: LC: LEGACY COMP C2: COMP260 GT: GATE DS: DE-ESSER EX: EXPANDER DK: DUCKING RIVAGE PM10 Operation Manual...
  • Page 178 0 dB — reduction Use the corresponding screen encoder or the [TOUCH AND TURN] knob to adjust the EQ parameters. Tabs Use these tabs to select a channel that you want to view on the screen. RIVAGE PM10 Operation Manual...
  • Page 179 INSERT 1/2 [ON] keys Press the MOUNT popup button to access the MOUNT popup window. Switch the INSERT1 and INSERT2 on or off respectively. RIVAGE PM10 Operation Manual...
  • Page 180 Press this button to access a popup window in which you can select an input port. The currently-selected port is indicated on the button. Level meter Indicates the level of the signal being output from the insert and the level of the signal being input to the insert. RIVAGE PM10 Operation Manual...
  • Page 181 Press the INSERT/DIRECT OUT field for the channel into which you want to insert: The INSERT/D.OUT popup window appears. There are two types of INSERT/D.OUT popup window: 1CH, and 12CH INSERT 1/2. Each window contains the following items. INSERT/D.OUT popup window (1CH) RIVAGE PM10 Operation Manual...
  • Page 182 Press this button to display the edit screen for the assigned plug-in. Press the INSERT block button to which you want to assign the external device: The MOUNT screen appears. Follow steps 5–11 on page 180. Follow steps 5–11 on page 180. RIVAGE PM10 Operation Manual...
  • Page 183 You can insert an external device (compressor, EQ, etc.) into a channel via on the RPio. Only the INSERT 1C for channels 1-36 supports this function. FOH area Stage area TWINLANe Console Network Assign the channels that will be used by the DSP engines to the TWINLANe network. (page 109) RIVAGE PM10 Operation Manual...
  • Page 184 Indicates the currently-selected port. If nothing is selected, the button indicates ----. Press this button to access the patch window. DIRECT OUT ON button Switches direct out on/off. The currently-specified Direct Out point is indicated in the lower part of the button. RIVAGE PM10 Operation Manual...
  • Page 185 FADER/ON/DCA settings. DIRECT OUT LEVEL knob Indicates the output level of the Direct Out. You can press this knob and then use the screen encoder or the [TOUCH AND TURN] knob to adjust the level. RIVAGE PM10 Operation Manual...
  • Page 186 Press a grid cell to patch the corresponding channel. Enables you to select the channel that you want to use for Direct Out. Channel display This area displays the channel name of each input channel that will be a patch source. RIVAGE PM10 Operation Manual...
  • Page 187 Sets the delay value. Use a [SEL] key to select the channel you want to control. Turn on the DELAY [ON] key in the Selected Channel section. Use the [DELAY] knob to adjust the DELAY value. RIVAGE PM10 Operation Manual...
  • Page 188 (always shown in unit of ms) and below the knob (shown using the currently-selected scale). Press the knob to display a popup window, in which you can set the delay time. NOTE If msec (millisecond) has been selected for the DELAY SCALE, nothing will appear above the knob. RIVAGE PM10 Operation Manual...
  • Page 189 Press this button to access the DELAY TIME popup window (page 190), in which you can set the delay time. Tabs Use these tabs to select a channel that you want to view on the screen. RIVAGE PM10 Operation Manual...
  • Page 190 The delay time is shown as the number of samples. If you change the sampling frequency on channel. Press the − button to select the previous channel. which the RIVAGE PM10 system operates, the number of samples will change accordingly. ENTER & NEXT button msec (milliseconds) Press this button to confirm the delay time setting, and then move to the next channel.
  • Page 191 Select the SEND knob of the corresponding send-destination MIX/MATRIX bus, and press it again to access the SENDS TO popup window. NOTE When MATRIX channels are selected, pressing the SEND knob again will access the SENDS FROM popup window (page 193). RIVAGE PM10 Operation Manual...
  • Page 192 Indicate the send-source channel being controlled. Press this button to select the on-screen selected channel. The current channel icon, number, and color appear on the button, and the channel name appears below the button. NOTE You can use the layer select keys to switch the send-source selection. RIVAGE PM10 Operation Manual...
  • Page 193 SEND ON button This button switches send to each bus on/off. FOLLOW setting buttons Enable you to set parameters for signals routed from input channels to the MIX/MATRIX bus so that the parameters will follow the FADER/ON/DCA settings. RIVAGE PM10 Operation Manual...
  • Page 194 MIX/MATRIX SENDS display Indicates the corresponding bus. MIX/MATRIX SENDS [MIX]/ [MATRIX] keys Switch the type of the send destination bus. MIX/MATRIX SENDS [1-12]/ [13-24]/[25-36]/[37-48]/ [49-60]/[61-72] keys Selects a bank for the send destination bus. RIVAGE PM10 Operation Manual...
  • Page 195 Use the MIX/MATRIX SENDS knobs of the Selected Channel section to adjust the send levels to the MIX/MATRIX buses. The RIVAGE PM10 system switches to SENDS ON FADER mode, and the SENDS ON NOTE FADER popup window appears. The faders in the Channel Strip section move to indicate the •...
  • Page 196 When you finish adjusting the MIX/MATRIX send levels, press the [SENDS ON FADER] key or the SENDS ON FADER button. The main area display returns to its previous state, and the RIVAGE PM10 system exits SENDS ON FADER mode and returns to normal mode.
  • Page 197 Aborts the copy operation and closes the window. Select the copy destination, and then press the EXECUTE button. The parameter is copied to the selected channel number. To abort the copy operation, press the CANCEL button instead of the EXECUTE button. RIVAGE PM10 Operation Manual...
  • Page 198 PARAMETER SET popup window. The window contains the following items. Copy source Indicates the type to copy. Select the type as needed. Copy destination select knob Selects the channel number as the copy destination. RIVAGE PM10 Operation Manual...
  • Page 199 • The signals sent to the STEREO A bus and STEREO B bus can be switched on or off individually. • The pan of the signal sent from the input channel or MIX channel to L/R of the STEREO A bus or STEREO B bus is controlled by the TO ST PAN knob. RIVAGE PM10 Operation Manual...
  • Page 200 STEREO A (L/R) bus and the signal level sent to the STEREO B (C) bus, in a range of 0–100%. To change the value, press the knob to select it, and then use the corresponding screen encoder. RIVAGE PM10 Operation Manual...
  • Page 201: Signal Flow

    In the channel strip section of the top panel, verify that the [ON] key is turned on for the STEREO channel that you want to operate, and then raise the fader to an appropriate position. Press the SIGNAL FLOW popup button to access the SIGNAL FLOW popup window. RIVAGE PM10 Operation Manual...
  • Page 202 0 dB and clipping If necessary, review the levels and the location of each insert point. The settings in this window link with the settings in the INSERT/D.OUT popup window and the DELAY popup window. RIVAGE PM10 Operation Manual...
  • Page 203 The DCA/MUTE ASSIGN window (ALL DCA tab) opens. About DCAs The RIVAGE PM10 system features 24 DCAs that enable you to control the level of multiple channels simultaneously. It includes the following features: • DCA1–24 can be used for all input channels and all output channels.
  • Page 204 The DCA/MUTE ASSIGN field of the OVERVIEW screen indicates the DCA(s) to which each channel is assigned. Indicators that are lit yellow in the upper and middle row of this field indicate the DCAs to which the corresponding channel belongs. RIVAGE PM10 Operation Manual...
  • Page 205 Use the channel select +/– buttons to select the channel that is assigned to a DCA. Press a DCA ASSIGN button(s) to select the DCA(s) to which the currently- selected channel will be assigned (multiple selections are allowed). Select the DCA(s) for other channels in the same way. RIVAGE PM10 Operation Manual...
  • Page 206 • You can also access the corresponding DCA ALL window by pressing the [SEL] key of the DCA while holding down the [SHIFT] key. • These buttons do not appear on the control surface. Use the corresponding screen encoder to scroll. RIVAGE PM10 Operation Manual...
  • Page 207 You cannot use the DCA ROLL-OUT function on multiple bays simultaneously. If you try to do so, the message “Only one DCA can be rolled out at one time” will appear near the bottom of the touch screen or external monitor screen. RIVAGE PM10 Operation Manual...
  • Page 208 About mute groups DCA/MUTE ASSIGN window (ALL MUTE) The RIVAGE PM10 system features twelve mute groups. It includes the following features: • Mute groups 1–12 can be used for all input channels and all output channels. • Both input channels and output channels can be assigned to the same group at the same time.
  • Page 209 Indicators that are lit red in the lower line of this field indicate the mute groups to which that channel belongs. DCA/MUTE ASSIGN field on the OVERVIEW screen RIVAGE PM10 Operation Manual...
  • Page 210 Use the channel select +/– buttons to select the channel you want to assign to the group. Press a DCA ASSIGN button(s) to select the mute group(s) to which the currently-selected channel will be assigned (multiple selections are allowed). Select the mute group(s) for other channels in the same way. RIVAGE PM10 Operation Manual...
  • Page 211 • PEQ settings • Dynamics settings • Delay settings • On/off, level, PRE/POST, and FOLLOW settings for signals sent to MATRIX buses • TO STEREO settings • DCA/MUTE ASSIGN settings • Fader operations • [ON] key operations RIVAGE PM10 Operation Manual...
  • Page 212 SET BY SEL button If this button is on, you will be able to select a channel by using the corresponding [SEL] key. CLOSE button Press this button to close the popup window and return to the previous screen. RIVAGE PM10 Operation Manual...
  • Page 213 To execute the copy operation, press the PASTE button. The CH DEFAULT popup window will appear. The copy operation will be executed, and the parameter settings will overwrite those of the copy destination(s). To close the CH COPY popup window, press the CLOSE button. RIVAGE PM10 Operation Manual...
  • Page 214 SET BY SEL button If this button is on, you will be able to select a channel by using the corresponding [SEL] key. CLOSE button Press this button to close the popup window and return to the previous screen. RIVAGE PM10 Operation Manual...
  • Page 215 This is a monaural 8-band PEQ. It also features four notch filters. The PEQ features a 1/12 oct (121-band) Real Time Analyzer (also called spectrum analyzer). The RIVAGE PM10 system features 31BandGEQ, Flex15GEQ, 8BandPEQ and Automixer. These NOTE can be inserted at the desired insert points.
  • Page 216 Select the channel that you want to operate. Page select knob Use the corresponding screen encoder or the [TOUCH AND TURN] knob to select a page to Press the INSERT [PLUG-INS] key to access the INSERT screen. view. RIVAGE PM10 Operation Manual...
  • Page 217 Use the INSERT 1/2 switch buttons and INSERT [A]–[D] buttons to select an insert channel and block for which you want to assign the GEQ/PEQ. Press the MOUNT popup button to access the MOUNT popup window. RIVAGE PM10 Operation Manual...
  • Page 218 Rotate the GEQ/PEQ allocation knob to specify the location for GEQ/PEQ (indicated in a pink frame). Press the OK button to allocate GEQ/PEQ. If you decide to cancel the operation, press the CANCEL button instead of the OK button. The inserted GEQ/PEQ will be displayed. RIVAGE PM10 Operation Manual...
  • Page 219 GEQ/PEQ. The INSERT/D.OUT popup window (1CH) will appear. INSERT block [A]–[D] buttons Indicate four plug-ins that have been assigned to INSERT1 and INSERT2 respectively. Press this button to display the edit screen for the assigned plug-in. RIVAGE PM10 Operation Manual...
  • Page 220 Press this button to access the GEQ LINK window, in which you can link the GEQ of paired channels. NOTE Follow steps 4–8 on page 217. The GEQ LINK button appears only for paired GEQs. FLAT button Press this button to reset the GAIN parameters of all GEQ bands to 0 dB. RIVAGE PM10 Operation Manual...
  • Page 221 Cancels the link and closes the popup window. LIBRARY button Press this button to open the GEQ library window. Press the GEQ ON/OFF button to turn the 31BandGEQ on. DEFAULT button Press this button to restore the default parameter setting. RIVAGE PM10 Operation Manual...
  • Page 222 NOTE The above operation is possible even if the Channel Strip section is locked. When you turn off the button in the FADER ASSIGN field, the faders will return to the locked state. RIVAGE PM10 Operation Manual...
  • Page 223 Switches the EQ type to PRECISE, AGGRESSIVE, SMOOTH, or LEGACY. PEQ graph Displays the parameter values for the PEQ and filters. PEQ LINK button Press this button to access the PEQ LINK window, in which you can link the PEQ of paired channels. RIVAGE PM10 Operation Manual...
  • Page 224 BYPASS button Enables you to bypass bands independently. EQ parameter setting knobs Indicate the Q, FREQUENCY, and GAIN parameters for BAND 1–8. Use the corresponding screen encoder or the [TOUCH AND TURN] knob to adjust the parameters. RIVAGE PM10 Operation Manual...
  • Page 225 This system enables an engineer to adjust the level balance as usual, even for multiple speakers. Also, while no one is speaking, the system detects the microphone input levels and automatically distributes the gain. So, the faders can be left in a raised position. RIVAGE PM10 Operation Manual...
  • Page 226 Press the GEQ RACK tab on the RACK&REC screen that displays GEQs. The GEQ RACK screen will appear. RACK MOUNT popup button Press this button to display the GEQ MOUNT popup window, in which you can select a plug- in to mount. RIVAGE PM10 Operation Manual...
  • Page 227 Shows the state of GEQ/PEQ resource usage. Press the OUTPUT popup button. In the OUTPUT PATCH popup window, select the output destination and then press the x button to close the window. Repeat steps 5–8 to insert Automixer into the desired channels. RIVAGE PM10 Operation Manual...
  • Page 228 The following example explains how the weight control works. • MUTE Press this button to fade out all channels immediately (in 0.5 seconds). RIVAGE PM10 Operation Manual...
  • Page 229 There is no automixing, and the audio signal passes through at unity gain. Use this mode for singing through a microphone. auto: Auto mixing is turned on. Use this mode for dialog. mute: The channel’s output is muted. RIVAGE PM10 Operation Manual...
  • Page 230 Plug-ins can be used by inserting them into a channel, or via send or return. The RIVAGE PM10 system provides 49 types of plug-in, including the Rupert EQ 773 and Rupert Comp 754 designed in a collaboration with Rupert Neve Designs, and the VSS4HD and NonLin 2 made by TC Electronic.
  • Page 231 MOUNT popup window, in which you can select a plug-in to mount. OUTPUT popup buttons (L/R) Press these buttons to access the OUTPUT PATCH popup window, in which you can select a signal to patch to the L/R channel. RIVAGE PM10 Operation Manual...
  • Page 232 You can view the plug-in allocation status at a glance. PLUG-IN DSP USAGE indication Rack select knob Shows the state of plug-in resource usage. Use the corresponding screen encoder or the [TOUCH AND TURN] knob to select a rack. RIVAGE PM10 Operation Manual...
  • Page 233 In the OUTPUT PATCH popup window, select the output destination and then press the x button to close the window. Rotate the plug-in allocation knob to specify the location for the plug-in (indicated in a pink frame). RIVAGE PM10 Operation Manual...
  • Page 234 LIBRARY button • Rotate the screen encoder while holding it down to fine- Press this button to open the corresponding plug-in library window. tune the parameter value. RIVAGE PM10 Operation Manual...
  • Page 235 Reverb Time Duration of time until the reverberation attenuates and stops. Higher values extend the reverberation. Initial Delay Duration of time between sound input and the start of reverberation. Higher values delay the start of reverberation. RIVAGE PM10 Operation Manual...
  • Page 236 Reverb time curve This curve represents the high-range (10kHz), mid-range (1kHz), and low-range (100Hz) reverb time. The curve changes depending on the Reverb Time, Hi Ratio, and Lo Ratio parameter values. RIVAGE PM10 Operation Manual...
  • Page 237 Mute Output button Pre Delay button Mutes the output. Adjusts the delay of the reverb input. Reverb Level button Rev Delay button Adjusts the level of the reverb tail. Adjusts the delay of the reverb tail. RIVAGE PM10 Operation Manual...
  • Page 238 Adjusts the multiple of decay for the low-mid frequency range. Hi Mid Decay button Adjusts the multiple of decay for the middle frequency range. Hi Decay button Adjusts the multiple of decay for the frequency range above Hi Xover. RIVAGE PM10 Operation Manual...
  • Page 239 Hold button Adjusts the hold time of the envelope. Release button Adjusts the release time of the envelope. Style list Selects the basic reverb style. Diffuse button Adjusts the diffusion (spread) for the selected reverb style. RIVAGE PM10 Operation Manual...
  • Page 240 Selects the type of Twist that affects the reverb. This delay effect is based on the Yamaha E1010 analog delay released in the 1970s, with a few refinements to bring it up to date for modern applications. It delivers the same deep,...
  • Page 241 Switches the tonal character. There are four types that differ in modulation amplitude and feedback amount. MIX knob Adjusts the mix balance between dry and delay sounds. SPEED knob Adjusts the modulation speed. FOOT switch Switches the effect on/off. RIVAGE PM10 Operation Manual...
  • Page 242 Adjusts the feedback amount of Phaser A. PHASER A ON/OFF switch Switches Phaser A on/off. PHASER B DEPTH knob Adjusts the modulation depth of Phaser B. PHASER B FEEDBACK knob Adjusts the feedback amount of Phaser B. RIVAGE PM10 Operation Manual...
  • Page 243 Makes fine adjustments to the tone. 6MODE and 7STAGE are valid only in the following combinations. MODE STAGE 6/8/12/16 MODE switch Switches the type of circuit structure that is modeled. The tonal character will be changed. RIVAGE PM10 Operation Manual...
  • Page 244 Switches the preset. If you switch the preset, the internal algorithm and parameters will change accordingly. Level meters Indicate the input and output levels. The OVER indicator will light up if the output level exceeds 0 dB. RIVAGE PM10 Operation Manual...
  • Page 245 LF FREQ knob Selects the frequency of the low shelving filter. MF GAIN knob Adjusts the peaking gain. MF FREQ knob Selects the peaking frequency. HF GAIN knob Adjusts the gain of the high shelving filter. RIVAGE PM10 Operation Manual...
  • Page 246 Triples the center frequency value of the LMF band (peaking). Adjusts the cutoff frequency of the high pass filter. LMF FREQ knob HPF FREQ knob Adjusts the center frequency of the LMF band (peaking). Adjusts the cutoff frequency of the low pass filter. RIVAGE PM10 Operation Manual...
  • Page 247 TRIM knob Adjusts the input gain of the effect. LF/LMF/MF/HMF/HF frequency knobs Adjust the frequency of each band. LF/LMF/MF/HMF/HF gain knobs Adjust the amount of boost or attenuation for each band. RIVAGE PM10 Operation Manual...
  • Page 248 Turning the knob toward the right (Broad) makes the band wider and also lowers the peak level. This affects only the response of the boost. HIGH FREQUENCY knob Adjusts the frequency of the high-range filter. This affects only the response of the boost. RIVAGE PM10 Operation Manual...
  • Page 249 CLEAN produces a clear, undistorted sound that is typical of digital, while emulates the changes in frequency response produced by an analog circuit. INPUT knob Adjusts the input level. Level meters Indicates the output level of the effect. RIVAGE PM10 Operation Manual...
  • Page 250 If this button is on, the sidechain signal linked to the dynamics is output to the bus (e.g., STEREO bus or MIX/MATRIX bus) to which the inserted channel is being sent. In this case, the graph shows the response of the sidechain filter. RIVAGE PM10 Operation Manual...
  • Page 251 (ABOVE) or when it falls below it (BELOW). EQ GAIN meter Indicates the gain of the dynamically changing EQ. THRESHOLD meter Indicates the level of the sidechain signal, referenced to the threshold level. Graph display Indicates the response of the equalizer. RIVAGE PM10 Operation Manual...
  • Page 252 Specifies the frequency that is controlled by the equalizer and the sidechain filter. HIGH SHELVING ON/OFF button Turn on this button to switch the HIGH band to a shelving type filter, and switch the sidechain filter from BPF to LPF. RIVAGE PM10 Operation Manual...
  • Page 253 COMP IN and LIMIT IN are off). For example if INPUT ADJUST is +5 dB, the input gain is COMPRESS GAIN knob +5 dB and the output gain is –5 dB. Adjusts the makeup gain of the compressor. This applies before the limiter stage. INPUT ADJUST can be used in the following ways. RIVAGE PM10 Operation Manual...
  • Page 254 MF ON button Toggles the sidechain’s MF band (peaking) on/off. MF FREQ x10 button Switches the sidechain’s MF band (peaking) center frequency to 10 times its value. MF FREQ knob Adjusts the sidechain’s MF band (peaking) center frequency. RIVAGE PM10 Operation Manual...
  • Page 255 Indicates the amount of gain reduction. THRESHOLD knob Adjusts the level at which the compressor begins to apply. RATIO knob Adjusts the compression ratio. If the knob is turned all the way to the right, this becomes a limiter. RIVAGE PM10 Operation Manual...
  • Page 256 Comp 369 includes a compressor and a limiter that you can use individually or in combination. The rich overtones generated by the audio input and output transformers and discrete class-A circuitry GAIN knob are modeled too, adding depth and unity to the sound. Adjusts the output gain. Stereo mount Dual mount RIVAGE PM10 Operation Manual...
  • Page 257 Adjusts the release time of the compressor. For a1 (auto 1) and a2 (auto 2), the release time changes automatically. a1: automatically changes in the range of 100 ms to 2sec. a2: automatically changes in the range of 50 ms to 5 sec. RIVAGE PM10 Operation Manual...
  • Page 258 • +4/+8 ....With the reference of the output signal level as –18 dB, a value of +4 dB or +8 dB relative to that reference is shown as 0 VU. • OFF ....The meter display is turned off. RIVAGE PM10 Operation Manual...
  • Page 259 If this switch is on, the compressor applies less to the low-frequency region, strengthening the low-frequency output. RELEASE knob Adjusts the release time of the compressor. VU meters Indicate the signal that is selected by the GR/-10/-20/OFF switches. RIVAGE PM10 Operation Manual...
  • Page 260 GR ZONE This red area changes according to the gain reduction amount for the corresponding band. CROSSOVER LINE This vertical line indicates the crossover point for the corresponding band. RIVAGE PM10 Operation Manual...
  • Page 261 Adjusts the compression ratio for the corresponding band. ATTACK Adjusts the attack time at which the compressor begins to apply for the corresponding band. RELEASE Adjusts the release time of the compressor for the corresponding band. RIVAGE PM10 Operation Manual...
  • Page 262 If you turn this switch on, when you adjust the level of the recording deck (by using the RECORD/REC LVL knob, the level of the reproduction deck (the REPRODUCE/REPR LVL] knob) will also change, maintaining the relative output level. You can change the amount of distortion without changing the output level. RIVAGE PM10 Operation Manual...
  • Page 263 The number of VU meters varies depending on the status of the VU ADJUST button. If the VU ADJUST button is turned on, the meter for one channel will be displayed. If the VU ADJUST button is turned off, the meters for two channels will be displayed. RIVAGE PM10 Operation Manual...
  • Page 264 TEMPO and NOTE parameter values. Turn SYNC ON Change NOTE → DELAY (or FREQ.) will be set In this case, the DELAY (or FREQ.) value is calculated as follows. DELAY (or FREQ.) = NOTE x 4 x (60/TEMPO) RIVAGE PM10 Operation Manual...
  • Page 265 * The NOTE parameter is calculated based on the following values. Label 1/32(3) 1/16(3) 1/16 1/8(3) Dot 1/16 1/4(3) Value 1/48 1/24 1/16 1/12 3/32 Label Dot 1/8 Dot 1/4 Dot 1/2 Whole 2x Whole Value 3/16 RIVAGE PM10 Operation Manual...
  • Page 266 If the system’s sampling rate is the same as that of the recording/playback files, the SRC will automatically be bypassed. The RIVAGE PM10 system supports WAV (uncompressed PCM) and MP3 (MPEG-1 Audio Layer- 3) file formats for recording and playback.
  • Page 267 Indicates the level of the recorder playback output signal. RECORDER INPUT popup buttons (L/R) Press these buttons to access the INPUT PATCH popup window, in which you can select signals that will be patched to the recorder’s L/R input channels. RIVAGE PM10 Operation Manual...
  • Page 268 The USB memory recorder always records and plays back in stereo. If you want to record in monaural, with the same signal for left and right, you must assign both of the recorder inputs to the same channel. RIVAGE PM10 Operation Manual...
  • Page 269 • Stop mode........Playback mode, and then playback will start from the beginning of the current song. • Playback mode......Playback-pause mode • Playback pause mode ....Playback mode, and then playback will resume from the paused point. • Recording standby mode..Recording mode RIVAGE PM10 Operation Manual...
  • Page 270 The files created by recording operations will be saved in the above SONGS folder, or in the currently-selected folder below that level. Press the REC FORMAT/RATE field in the lower right of the screen, then select the file format and sampling rate for the audio file that will be recorded. RIVAGE PM10 Operation Manual...
  • Page 271 You can play back audio files that have been saved on a USB flash drive. In addition to files that were • MP3 192 kbps recorded on the RIVAGE PM10 system, you can also play files that were copied from your computer to the USB flash drive.
  • Page 272 Indicates the file number in the title list. • The RIVAGE PM10 system can recognize a file name that is a maximum of 64 single-byte characters. If the file name is longer than this, the desired file may not play correctly.
  • Page 273 The song you selected in step 5 will begin playing. NOTE • Even if the sampling rate at which the RIVAGE PM10 system is operating differs from the sampling rate of the audio file being played, the SRC (Sampling Rate Converter) function will SONG TITLE/FILE NAME EDIT button automatically convert the rate so that the file will play back correctly.
  • Page 274 Pressing the button repeatedly will alternate between ascending and descending order. • MOVE UP/MOVE DOWN buttons Press these buttons to move the track number of the file currently-selected in the title list upward or downward by one. RIVAGE PM10 Operation Manual...
  • Page 275 Giga-bit Ethernet (GbE) network. Visit the Audinate website for more details on Dante. http://www.audinate.com/ More information on Dante is also posted on the Yamaha Pro Audio website: http://www.yamahaproaudio.com/japan/ RIVAGE PM10 Operation Manual...
  • Page 276 REC OUT ASSIGN This area indicates the number of REC OUTs assigned to each channel. PLAYBACK IN select knob Enables you to select channels used for PLAYBACK INs. CLEAR ALL button Press this button to clear all selections. RIVAGE PM10 Operation Manual...
  • Page 277 Follow the steps below to record or play back using a DAW. LED on both INPUT [A] and [B] keys light up. • Setting up the RIVAGE PM10 system Use the REC OUT select knob to display the port on the slot that will be used for To perform a virtual sound check, configure the recording patches.
  • Page 278 • For virtual sound check: Patch audio signals in such a way that they will be output from the • Specify the audio format (e.g., 96 kHz, 24-bit). computer to the Dante audio network, then routed to the channels on the RIVAGE PM10 • Specify the Dante latency. (Choose a larger value for stable multi-channel recording/playback.)
  • Page 279 For a virtual sound check, you must route recorded audio signals to the input channels on the RIVAGE PM10 system. To do so, use Dante Controller to patch the signals so that the signals will be output from the DAW software to the RIVAGE PM10 system. Using the VIRTUAL SOUND...
  • Page 280 • Channel pair settings Indicates the selected scene memory. On the RIVAGE PM10 system, scene numbers consist of an integer portion and a decimal portion, [PREVIEW] key and can be assigned as desired. One way of organizing scenes would be to create integer-numbered Turns Preview mode on or off.
  • Page 281 If you press this button while Overlay is enabled, a dialog box will appear, enabling you to store scene data including all currently-applied Overlay offset values. The current mix data on the RIVAGE PM10 system can be saved as new scene data, or overwritten onto existing scene data to update it.
  • Page 282 + [STORE] key. + [STORE] key. + [STORE] key. + [STORE] key. key. key. key. Automatically- 2.00 1.10 2.00 1.05 2.00 1.02 3.00 1.25 suggested scene numbers The same name as the current scene will be suggested. RIVAGE PM10 Operation Manual...
  • Page 283 You can also press this field to access the SCENE LIST screen, in which you can view and edit more detailed settings for the scene. Scene number Indicates the number of the currently-selected scene. Scene title Indicates the title of the currently-selected scene. RIVAGE PM10 Operation Manual...
  • Page 284 MULTI SELECT button You can select consecutive multiple scenes by turning on this button and rotating the screen encoder. Current scene select button Press this button to select the scene that was recalled or stored most recently. RIVAGE PM10 Operation Manual...
  • Page 285 UPDATE UNDO button, a dialog box will ask you to confirm the undo operation. Press the OK button if you want to execute the undo operation. NOTE The UPDATE UNDO button is available only immediately after overwrite-storing. RIVAGE PM10 Operation Manual...
  • Page 286 A dialog box will ask you to confirm the undo operation. Press the OK button if you want to execute the operation. After undoing the recall, you can press the RECALL UNDO button once again to Redo (re-execute). NOTE You can also use MIDI messages (Program Changes) to recall scenes (page 337). RIVAGE PM10 Operation Manual...
  • Page 287 Press the USER DEFINED KEYS button to access the USER DEFINED KEYS popup a function) to open the popup window. window. The USER DEFINED KEYS page enables you to assign functions to USER DEFINED keys [1]–[12]. RIVAGE PM10 Operation Manual...
  • Page 288 Confirm the status of a scene to recall, and the on/off status of Overlay, before recalling the The view of the right side of the SCENE LIST screen will change accordingly. scene. The following explanations are based on the window that appears if you select the COMMENT tab. RIVAGE PM10 Operation Manual...
  • Page 289 “About editing scene memories” (page 290). CLEAR MIX DATA popup button Press this button to access a popup window, in which you can confirm that you want to reset the current mix data to the default settings. RIVAGE PM10 Operation Manual...
  • Page 290 • You cannot delete protected scenes. • To undo a scene deletion, press the UNDO button. • If you select multiple scenes and delete them all at once, you will be unable to undo the delete operation. RIVAGE PM10 Operation Manual...
  • Page 291 To execute the duplicate operation, press the OK button. The source scene will be duplicated and saved to the scene numbers specified in step 3. If you decide to cancel the duplicate operation, press the CANCEL button instead of the OK button. RIVAGE PM10 Operation Manual...
  • Page 292 Focus setting of that scene will overwrite those of the current scene. NOTE In contrast to Focus, the RIVAGE PM10 system also features a “Recall Safe” function that enables you Press the SET popup button of the scene for which you want to make Focus to exclude specific channels and parameters from recall operations.
  • Page 293 If you want to apply the Focus function only to specific parameters, use the parameter buttons to select those parameters (multiple selections are allowed). If you want to apply the Focus function to all parameters, turn on the ALL ON button 6. RIVAGE PM10 Operation Manual...
  • Page 294 CURRENT SETTING field Here you can specify the content that will be saved by the next scene store operation. When you recall a scene, the Fade settings of that scene will overwrite those of the current scene. RIVAGE PM10 Operation Manual...
  • Page 295 Press this button to access a popup window, in which you can specify the control signal output from each GPI OUT. GPI PARAMETER display section In this section, indicators show the status of the GPI settings specified for each scene. RIVAGE PM10 Operation Manual...
  • Page 296 SCENE LIST window (COMMENT tab). Recall the scene for which you want to output GPI OUT signals. When you recall the scene, the control signals will be output to an external device connected to the GPI OUT connector. RIVAGE PM10 Operation Manual...
  • Page 297 Scroll knob You can scroll the list using the screen encoder. Press the SONG TITLE list or use the screen encoder to select a file that you want to link to a scene. RIVAGE PM10 Operation Manual...
  • Page 298 Enables you to select a channel category. Channel display Indicates the channel name. You can press the + or − button located next to the channel name to expand or collapse the channel indication for each category. RIVAGE PM10 Operation Manual...
  • Page 299 To paste with the mount status, turn on Global Paste for the PLUG-IN / GEQ ALLOCATION. SINGLE: Enables you to select a single scene. RANGE: Enables you to select consecutive scenes. MULTI: Enables you to select multiple specified scenes. RIVAGE PM10 Operation Manual...
  • Page 300 Also, during the paste operation, a STOP button will appear, which you can press to cancel the paste operation. In this case, data will be pasted up until you press the STOP button. The operation cannot be reverted. RIVAGE PM10 Operation Manual...
  • Page 301 Focus or Recall Safe will not be ALL channel Recall Safe ON button recalled. Specifies whether the Recall Safe function is applied to all channels. RIVAGE PM10 Operation Manual...
  • Page 302 • TRIGGER ......This column displays a type of trigger that executes an event. • EVENT ......This column displays a description of an event to be executed. You can use the SHOW COMMENTS button to specify whether you want to show comments for a scene. RIVAGE PM10 Operation Manual...
  • Page 303 • LIST ........Press this field so that you will be able to select a scene number from the list. • DIRECT ......Press this field so that you will be able to select a scene by entering the scene number directly into the field. RIVAGE PM10 Operation Manual...
  • Page 304 List This area displays a list of events added to the even list. The currently-selected event is displayed in lighter gray, and the event recalled most recently is displayed in darker gray. RIVAGE PM10 Operation Manual...
  • Page 305 [SHIFT] key, press the [OVERLAY] key to switch Overlay on or off. While Overlay is turned on, press and hold down the [OVERLAY] key to enter Overlay edit mode. [SHIFT] key Combine with another key to perform certain functions. RIVAGE PM10 Operation Manual...
  • Page 306 For example, assuming that the fader level is -138dB and the offset value is -10dB, when Overlay is turned on, the limiter will kick in and the resultant fader level will be -128dB. When Overlay is turned off, this changed value will not revert. RIVAGE PM10 Operation Manual...
  • Page 307 While Overlay is turned on, you can set the value between -20.00dB and +10.00dB. Select a channel or DCA and parameter to set the Overlay offset value. A selected field will be surrounded by a frame. RIVAGE PM10 Operation Manual...
  • Page 308 Panel SELECTED CHANNEL VIEW screen OVERVIEW screen Fader strip field MIX/MATRIX SENDS SEND field OVLY –5.1 field Vocal –27. In addition to these examples, the parameters affected by the Overlay setting will update the level indication. RIVAGE PM10 Operation Manual...
  • Page 309: Usb Flash Drive

    File USB flash drive All internal data of the RIVAGE PM10 system can be saved to the USB flash drive in a single SAVE/LOAD operation as a settings file. If you save a file by selecting the ALL tab, the saved file will have an extension of “.PM10ALL”.
  • Page 310 CONTENTS FUNCTION MAP File  Saving the RIVAGE PM10 system’s settings on a USB flash drive TYPE field Enables you to select a type of data to save. The displayed items on this screen vary depending on the selected tab.
  • Page 311 CONTENTS FUNCTION MAP File  Saving the RIVAGE PM10 system’s settings on a USB flash drive Button Data Type Button Data Type PLUG-IN Stereo Reverb library P STRV PLUG-IN NonLin2 library P NL2 EarlyReflections library P ER VSS4HD library P VSS4...
  • Page 312 File  Loading a file from a USB flash drive Loading a file from a USB flash drive • SETUP tab The following table lists the items you can select. Follow the steps below to load the RIVAGE PM10 system setting file (extension .PM10ALL or Button Data Type .PM10PART) from the USB flash drive into the console.
  • Page 313 This area lists the destination to which the selected data will be loaded. MULTI SELECT button Press this button to select multiple setting data items simultaneously. SELECT ALL button Press this button to select all items. RIVAGE PM10 Operation Manual...
  • Page 314 Number of data items to be deleted and to be updated Shows the total number of data items that will be deleted and data items that will be updated (overwritten) after the load operation is executed. RIVAGE PM10 Operation Manual...
  • Page 315 Indicates the file type. “ALL” or “LIB” represents a file containing the RIVAGE PM10 system’s internal settings. “BMP” represents a bitmap image file, and [DIR] represents a directory. “???” indicates an MP3 file or WAV file, or a file that the RIVAGE PM10 system does not recognize. • TIME STAMP Indicates the date and time when the file or directory was created or updated.
  • Page 316: Deleting A File

    To turn the protect setting on or off, press the READ ONLY field for the file. A protect symbol is displayed for write-protected files. These files cannot be overwritten. NOTE You cannot edit the file name or comment field of a write-protected file. RIVAGE PM10 Operation Manual...
  • Page 317 A keyboard window will appear, allowing you to enter a directory name. Enter the name of the directory you want to create, then press the MAKE button. NOTE You cannot create a directory using a directory name that already exists. RIVAGE PM10 Operation Manual...
  • Page 318 User Setup PREFERENCES You can make various settings for the RIVAGE PM10’s operating environment, such as how popup windows appear, and whether [SEL] key on/off operations will be linked. Press the SETUP button on the menu bar to access the SETUP screen.
  • Page 319 If this ON button is turned on, touching a fader will automatically select the corresponding channel via the Touch Sense function built into the channel fader. FADER TOUCH SENSITIVITY Touch sensitivity can be adjusted in five steps. Higher values provide greater touch sensitivity. RIVAGE PM10 Operation Manual...
  • Page 320 (Digital audio I/O errors could involve AES/EBU input/output of the control surface, or digital input/output of the RY slot or MY slot). MIDI I/O If this ON button is lit, an error message will appear when a MIDI transmission/reception error occurs. RIVAGE PM10 Operation Manual...
  • Page 321: Usb Mouse

    Press the CUSTOM FADER popup button to access the CUSTOM FADER BANK popup window. NOTE You can also press any custom fader bank key while holding down and pressing the [SHIFT] key to open the corresponding CUSTOM FADER BANK popup window. RIVAGE PM10 Operation Manual...
  • Page 322 COPY button Copies the selected bank setting. PASTE button Paste the copied setting to the selected bank. CLOSE button Press this button to close the popup window and return to the previous screen. RIVAGE PM10 Operation Manual...
  • Page 323: User Defined Keys

    Indicate the function assigned to the USER DEFINED knobs. USER DEFINED KNOBS [1]/[2]/[3]/[4] Control the functions as assigned by the user. From the list, select desired channels. When you finish selecting the channels, press the CLOSE button. RIVAGE PM10 Operation Manual...
  • Page 324 If nothing is assigned to the button, an indication of “NO ASSIGN” is shown. Press the button corresponding to the USER DEFINED knob to which you want to assign a function. The system displays a popup window, in which you can assign a function to the USER DEFINED knob. RIVAGE PM10 Operation Manual...
  • Page 325 STEREO AL, STEREO AR, STEREO BL, — STEREO BR CH1–144, MIX 1–72, MATRIX 1–36, OUTGAIN STEREO AL, STEREO AR, STEREO BL, — STEREO BR CH1–144, MIX 1–72, MATRIX 1–36, KNEE STEREO AL, STEREO AR, STEREO BL, — STEREO BR RIVAGE PM10 Operation Manual...
  • Page 326 STEREO AR, STEREO BL, STEREO BR CH1–144, MIX 1–72, MATRIX 1–36, HPF FREQ STEREO AL, STEREO AR, STEREO BL, — STEREO BR FILTER CH1–144, MIX 1–72, MATRIX 1–36, LPF FREQ STEREO AL, STEREO AR, STEREO BL, — STEREO BR RIVAGE PM10 Operation Manual...
  • Page 327 UP []/DOWN [] keys Enable you to select the function that you want to control using the channel strip encoder. Press the USER DEFINED KNOBS button to open the USER DEFINED KNOBS popup window. RIVAGE PM10 Operation Manual...
  • Page 328 • DYNAMICS1 THRESHOLD • DYNAMICS2 THRESHOLD • DELAY • SILK TEXTURE Press the OK button to close the CH STRIP ENCODERS popup window. Use the UP []/DOWN [] keys on the top panel to select the function. RIVAGE PM10 Operation Manual...
  • Page 329 Select the bank ([A], [B], [C], or [D]) for the USER DEFINED knobs or USER DEFINED keys. USER DEFINED KEYS displays Indicate the functions assigned to the USER DEFINED keys. USER DEFINED KEYS [1]–[12] Control the functions as assigned by the user. RIVAGE PM10 Operation Manual...
  • Page 330 If nothing is assigned to the button, an indication of “NO ASSIGN” is shown. Press the button corresponding to the USER DEFINED key to which you want to assign a function. The system displays a popup window, in which you can assign a function to the USER DEFINED key. RIVAGE PM10 Operation Manual...
  • Page 331 Selects the group of bands (in the the Console Shutdown function has GEQ FREQ GEQ EDIT screen) that will be been assigned. BANK controlled by the faders in the BAY L, BAY R, BAY C Channel Strip section. RIVAGE PM10 Operation Manual...
  • Page 332 BAY L, BAY R, BAY C “SEL” Alternatively, displays the window that was bookmarked most recently, and reverts to the previous Selected Channel status. (Press the key and release it within two seconds.) RIVAGE PM10 Operation Manual...
  • Page 333 Recalls the scene associated with the INC RECALL next scene number. Recalls the scene associated with the SCENE DEC RECALL previous scene number. Hold down this key and press the DIRECT RECALL (SCENE) [SEL] key to switch it on/off. RIVAGE PM10 Operation Manual...
  • Page 334 While holding down this key, TALK GROUP 1–8 press an output channel [SEL] key to switch the assignment on/off. TAP TEMPO TEMPO 1–4 Sets the tap tempo. * This function cannot be assigned to USER DEFINED keys in PM10 Editor. RIVAGE PM10 Operation Manual...
  • Page 335 Basic MIDI Settings MIDI/GPI You can select the type of MIDI messages the RIVAGE PM10 system will transmit and receive. You can also select the MIDI port that will be used. This chapter explains how to transmit MIDI messages from an external device to the RIVAGE PM10 system to control its parameters, and how to send out MIDI messages from the RIVAGE PM10 Press the SETUP button on the menu bar to access the SETUP screen.
  • Page 336 PROGRAM CHANGE MODE field Enables you to select the Program Change transmit/receive mode. • SINGLE ......If this button is on, Program Changes will be transmitted and received on a single MIDI channel (Single mode). RIVAGE PM10 Operation Manual...
  • Page 337 MIDI SETUP popup window. The RIVAGE PM10 system enables you assign a specific scene to be recalled to each Program Change number, so that when a scene is recalled on the RIVAGE PM10 system, a Program Change NOTE message of the corresponding number will be transmitted to an external device.
  • Page 338 PROGRAM CHANGE field When you recall a specified scene on the RIVAGE PM10 system, the Program Change of the Switches Program Change transmission and reception on or off. This setting is linked with the corresponding MIDI channel and program number in the list will be transmitted.
  • Page 339 Rx channel, the scene assigned to that bank number and program number in the list will be recalled. When you recall a specific scene on the RIVAGE PM10 system, Bank Select and Program Change messages for the bank number and program number assigned to that scene will be transmitted on the Tx channel.
  • Page 340 MIDI PROGRAM CHANGE popup window. on/off operations, etc. on the RIVAGE PM10 system. This capability can be used to record fader and key operations on a MIDI sequencer or other external device, and play back the data later.
  • Page 341 Press this knob to scroll the list upward or downward using the screen encoder. For details on the operations that can be assigned to Control Changes, refer to the data list. CLEAR ALL button Press this button to clear all parameter assignments on the list. RIVAGE PM10 Operation Manual...
  • Page 342 • You can also press the desired parameter in the field to select it. changes performed on the RIVAGE PM10 system can send control signals to an external device. • You can press a field to highlight the item you want to select, and then turn one of the screen encoders to select a parameter.
  • Page 343 Lighting external LED indicators via GPI OUT1 CS-R10 You can use the GPI IN ports of the GPI connector to control the parameters of the RIVAGE PM10 system from an external device. For example, you could use an external switch to turn the RIVAGE PM10 system’s Talkback on/off, operate the Tap Tempo function, or switch scenes.
  • Page 344 Repeat steps 5 through 8 to specify functions and parameters for other ports. NOTE ....(High active) Active when the input signal is high level. Settings in the GPI screen are common to all scenes. They can be saved as SETUP data. RIVAGE PM10 Operation Manual...
  • Page 345 The GPI OUT ports of the GPI OUT connector enable you to control an external device by ....(High active) Open when the GPI OUT port is active. performing operations on the RIVAGE PM10 system. GPI OUT SETUP popup button Connect an external device to the GPI connector on the control surface.
  • Page 346 DEFINED KEY 12 becomes active In each field, select the desired function or parameter. When you finish making settings, press the OK button. Repeat steps 5 through 8 to specify functions and parameters for other ports. RIVAGE PM10 Operation Manual...
  • Page 347 If this button is on, you will be able to add a channel by using the corresponding [SEL] key. For each GPI OUT port, specify the channel that will cause the external device to operate, and also specify the type of operation. RIVAGE PM10 Operation Manual...
  • Page 348: Firmware Updates

    (parameter) will match. NOTE An alarm message will appear if a problem is detected in the fader settings while the RIVAGE PM10 system is starting up. Press the SETUP button on the menu bar to access the SETUP screen.
  • Page 349 Press the START button to perform calibration again. If the MOTOR DRIVE calibration tab is selected: For the specified faders in the Channel Strip section and Master section, the motorized fader movement will be automatically calibrated. RIVAGE PM10 Operation Manual...
  • Page 350 1 −∞ dB (all the way down) 2 −20 dB 3 0 dB 4 +10 dB (all the way up) After you adjust the fader position, press the [NEXT] button. The process will proceed to the next fader position. RIVAGE PM10 Operation Manual...
  • Page 351 Press the FINISH button. The calibration values will be saved in internal memory. Press the TOUCH CALIB tab. The TOUCH SCREEN CALIBRATION screen will appear, enabling you to calibrate the touch screen panels. RIVAGE PM10 Operation Manual...
  • Page 352 You can select multiple items to be initialized as required by the desired initialization method. A dialog box will ask you to confirm the Initialization operation. Press the INITIALIZE THIS CONSOLE button. RIVAGE PM10 Operation Manual...
  • Page 353 Press the SETUP button on the menu bar to access the SETUP screen. Press the MAINTENANCE button to access the MAINTENANCE popup window. This window includes several pages, which you can switch between using the tabs located at the top of the window. RIVAGE PM10 Operation Manual...
  • Page 354 The system log enables you to identify and read about problems that occurred during operation of the RIVAGE PM10 system, and related information. You can also store system log data to a USB flash drive as text data. System log data is useful for analysis and troubleshooting of problems and malfunctions.
  • Page 355 NOTE If you want to store the files using RIVAGE PM10 Editor, they will be stored in the storage location specified on the SAVE/LOAD screen. If the specified storage location is not valid, the EXPORT LOGS TO STORAGE button will be disabled. If you do not have an Administrator account for a computer running PM10 Editor, you will be unable to store files in the root directory on the C drive.
  • Page 356 Press the SYSTEM LOG tab to access the SYSTEM LOG page. If the RIVAGE PM10 system experiences a software problem during operation, it will dump (store) the system status at that point in the internal memory of the control surface.
  • Page 357 You can select from the following display formats. • Date MM/DD/YYYY (Month/Day/Year) DD/MM/YYYY (Day/Month/Year) YYYY/MM/DD (Year/Month/Day) • Time 24-Hour (hours shown in the range of 0–23) 12-Hour (hours shown in the range of AM0–AM11 and PM0–PM11) RIVAGE PM10 Operation Manual...
  • Page 358 The date, time, and display format you specified will be finalized, and the popup window will close. If you press the CANCEL button or the “x” symbol instead of the OK button, your changes will be discarded and the popup window will close. RIVAGE PM10 Operation Manual...
  • Page 359 LCDs, channel name displays, and lamps in a single operation. You can also assign this BANK A–D buttons. parameter to a USER DEFINED key, and press that key to switch among banks A–D. You can save four different brightness settings in banks A–D, and switch among them rapidly if desired. RIVAGE PM10 Operation Manual...
  • Page 360 The CONSOLE LOCK screen will appear, the Console Lock function will be enabled, and all controllers (excluding the MONITOR A/B knobs, TALKBACK LEVEL knob, PHONES A/B LEVEL knobs, and brightness control knob) will become inoperable. Press the CONSOLE LOCK button to access the PASSWORD popup window. RIVAGE PM10 Operation Manual...
  • Page 361 USB flash drive. For a procedure on loading a file from a USB flash drive, refer to “Loading a file from a USB flash drive” (page 312). NOTE Only BMP, JPEG, or PNG image files can be loaded. RIVAGE PM10 Operation Manual...
  • Page 362 CONTENTS FUNCTION MAP Setup Procedure and Basic Operation of the RIVAGE PM10 Editor  About the RIVAGE PM10 Editor On-line monitoring/operation Setup Procedure and Basic Operation of the RIVAGE PM10 Editor Connect a computer (that has PM10 Editor installed) to the DSP engine using an Ethernet cable.
  • Page 363 Exit the application. Press the SYNC button. Parameter settings on the RIVAGE PM10 system will be copied to PM10 Editor. Once data synchronization is completed, the line indicating synchronization is displayed in green. Edit the mixing data. RIVAGE PM10 Operation Manual...
  • Page 364 This is a menu for file operations. Press the SYNC button. Exit Parameter settings in PM10 Editor will be copied to the RIVAGE PM10 system. Once data Exits PM10 Editor. synchronization is completed, the line indicating synchronization will be displayed in green.
  • Page 365 CONTENTS FUNCTION MAP Setup Procedure and Basic Operation of the RIVAGE PM10 Editor  About the screens ■ View menu About the screens The screens of PM10 Editor are identical to those on the control surface. However, parts that you cannot control in PM10 Editor are hidden, as shown below.
  • Page 366 CONTENTS FUNCTION MAP Setup Procedure and Basic Operation of the RIVAGE PM10 Editor  About the screens CONTROLS USER DEFINED KEYS screen You can perform panel operation of the control surface from PM10 Editor. Press the METER button to display a pull-down menu, and then select CONTROLS to display one of the CONTROLS screen.
  • Page 367 CONTENTS FUNCTION MAP Setup Procedure and Basic Operation of the RIVAGE PM10 Editor  Operating the faders in the METER screen (Full Screen) Operating the faders in the METER screen Saving and loading a file (Full Screen) In PM10 Editor, you can specify a directory to/from which to save or load a file.
  • Page 368 CONTENTS FUNCTION MAP Setup Procedure and Basic Operation of the RIVAGE PM10 Editor  PM10 Editor shortcut keys PM10 Editor shortcut keys Initializing PM10 Editor Procedure Key operation Press [SETUP] ➔ [MAINTENANCE] ➔ [INITIALIZATION] tabs to access the INITIALIZATION page.
  • Page 369 An internal error occurred on the console. Connections inside the Console local I/O model type conflict! operating panel may be faulty. Please contact your Yamaha Cannot paste! The character string in the copy buffer is too long to be pasted.
  • Page 370 An internal error occurred in the console. Communications inside Internal error! Couldn’t access the file The specified directory or file does not exist. the operation panel may be faulty. Please contact your Yamaha (PANELxx_COMMUNICATION_ERR) dealer. Couldn’t delete file The system failed to delete the file.
  • Page 371 XX. For information on the maximum number of Total MY slot power capability exceeded! was detected. MY cards that can be used, please visit the Yamaha Pro Audio Remove cards from unit XX website at: The page cannot be displayed because the same page is already http://www.yamahaproaudio.com/...
  • Page 372: Word Clock

    You have entered an incorrect password to unlock the console. The system word clock is inappropriate. Supply an appropriate Wrong word clock! word clock. XX parameters are reset to their default values. XX parameters set to default (“XX” represents the type, such as “EQ,”or “Dynamics1.”) RIVAGE PM10 Operation Manual...
  • Page 373 Touch Sense ............ 319 DAW ..............277 Oscillator............150 Head amp..........60, 99, 166 TWINLANe network ........106 DCA..............203 OVERLAY ..........51, 305 HPF..............96 DCA Roll-out ...........207 OVERVIEW screen ......... 99 HPF indicator........... 94 Delay..............187 Delay scale ..........190 Delay Compensation........121 RIVAGE PM10 Operation Manual...
  • Page 374 CONTENTS FUNCTION MAP Index USB flash drive..........309 USB flash drive format........62 USB keyboard ..........321 USB mouse ............321 USER DEFINED KEYS .........329 USER DEFINED KNOBS......323 VARI ..............125 Virtual sound check ........275 WAV ..............266 Word clock ............122 RIVAGE PM10 Operation Manual...
  • Page 375 Yamaha Pro Audio global website http://www.yamahaproaudio.com/ Yamaha Downloads http://download.yamaha.com/ Manual Development Group © 2015 Yamaha Corporation Published 06/2017 IP-D0...

Comments to this Manuals

Symbols: 0
Latest comments:
