Operation Manual
Part 1: Overview
EN

Advertisement

Table of Contents

   Related Manuals for Yamaha rivage pm10

   Summary of Contents for Yamaha rivage pm10

  • Page 1 Operation Manual Part 1: Overview...
  • Page 2 ) ......Press this button to access the “Frequently Asked Questions (Q&A)” page of the Yamaha Pro Audio site. This guide provides an overview of the RIVAGE PM10 system, and explains step by step how to set up the system from connecting devices to producing sound.
  • Page 3: Table Of Contents

    Conceptual Diagram of Memory..............43 About Connections ..................14 Scene memory ....................45 Word Clock.....................15 Word clock in the RIVAGE PM10 system.............. 15 Other Convenient Functions ................. 46 About the sampling rate converter (SRC)............. 15 Maintenance Functions ................. 46 RIVAGE PM10 System Function List ..............16 Initialization ......................
  • Page 4: Component Structure

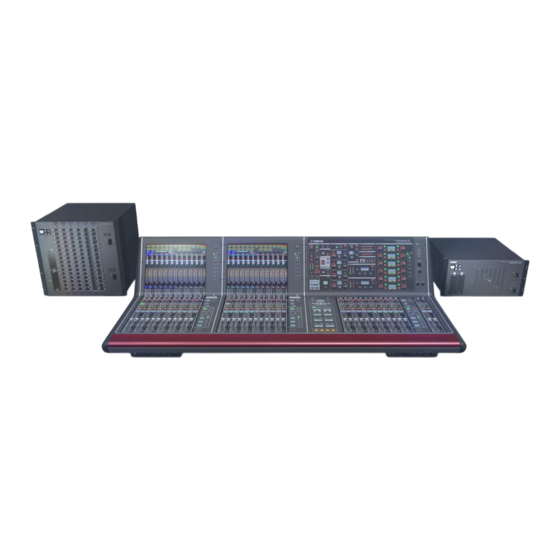

    CONTENTS Component Structure Component Structure The RIVAGE PM10 system uses a modular architecture, allowing you to flexibly design a system of the appropriate size and structure. The following components are included in the RIVAGE PM10 system. Control surface DSP engine...
  • Page 5 The following functionality is provided. • 12 x 3 bays + 2 (total 38) faders • The full-function Selected Channel section acclaimed on Yamaha digital mixers • A user interface that allows touch operation on large LCD panels • Audio input/output connectors for connecting outboard gear or CD players (local I/O), and...
  • Page 6: Control Surface (cs-r10)

    A channel strip section of 12 faders together with their touch screen section is called a “bay. ” The control surface (CS-R10) has three bays (L/C/R), each of which can be operated independently. Bay L Bay C Selected Channel section Bay R RIVAGE PM10 Operation Manual...
  • Page 7: Dsp Engine

    CONTENTS Component Structure  DSP engine (DSP-R10) DSP engine (DSP-R10) Jack list This is a 144-input, 72-mix, 36-matrix, 2-stereo DSP engine that performs all of the RIVAGE PM10 Jack Connector Number of jacks system’s audio processing such as mixing and plug-ins.
  • Page 8: Twinlane Network

    WORD CLOCK IN WORD CLOCK OUT NETWORK etherCON CAT5 FAULT OUTPUT Euroblock 3P AC INLET V-Lock Type * Support is planned in a future update. Slot list Slot Number RY CARD SLOT MY CARD SLOT HY CARD SLOT RIVAGE PM10 Operation Manual...
  • Page 9 • Please refer to the owner’s manual supplied with the host device for information on installing the I/O cards. • For detailed information on I/O card settings, refer to the owner’s manual for the I/O card. • For the latest information on which I/O cards can be used with the system, visit the Yamaha Pro Audio website at: http://www.yamahaproaudio.com/...
  • Page 10 TWINLANe Network  TWINLANe network Connecting a TWINLANe network card TWINLANe Network The HY256-TL TWINLANe network card can be used with the RIVAGE PM10 system. TWINLANe is a proprietary Yamaha network protocol for transferring multiple channels of digital TWINLANe network card HY256-TL audio and control signals simultaneously over a single cable.
  • Page 11 • Normal situation 400 ch • When a cable is broken 400 ch Even if a cable is severed at one point, the signal will be re-routed automatically and communication will continue without interruption. RIVAGE PM10 Operation Manual...
  • Page 12: System-wide Signal Flow

    CONTENTS I/O and Routing Structure  System-wide signal flow I/O and Routing Structure The following diagram shows the signal flow of the entire RIVAGE PM10 system. System-wide signal flow I/O Rack I/O Rack TWINLANe Network (400 ch) (RPio622) (RPio622) Inputs...
  • Page 13 *1) All input signals (total 128 channels) of the RY slots and MY slots are always split for output to the HY SLOT 2 output. The signal immediately after gain compensation is output. *2) Specifies the number of channels that are output to the TWINLANe network (turn on/off in 16-channel units for each slot). RIVAGE PM10 Operation Manual...
  • Page 14 CONTENTS About Connections RY card RY card About Connections The diagram below shows typical connections for the RIVAGE PM10 system. Equipment can be combined in various ways to construct small systems or large systems. I/O Rack I/O Rack RPio622 RPio622 •...
  • Page 15: Word Clock

    WORD CLOCK IN is selected The DSP engine will be the clock slave of the The input SRC converts the signal to the system clock of the RIVAGE PM10 system. TWINLANe network The DSP engine will be the clock master for...
  • Page 16 CONTENTS RIVAGE PM10 System Function List RIVAGE PM10 System Function List Click a function (blue text) to see a detailed explanation of that function. I/O Rack I/O Rack TWINLANe Network (400 ch) (RPio622) (RPio622) Inputs Outputs (HY256-TL) (HY256-TL) DSP Engine (DSP-R10)
  • Page 17: I/o Unit Section

    Rupert Neve Designs’ “Silk” processing that allows you to freely RY16-AE METER slot1 control the sound’s “depth, space, and air. ” In the RIVAGE PM10 system, this is provided as input DECODE standard on the RY16-ML-SILK and on all the OMNI INPUT channels on the rear panel of the CS-R10.
  • Page 18: Mixing Engine Section

    PLUG-IN 1 PLUG-IN 2 PLUG-IN 3 PLUG-IN 4 PLUG-IN 1 PLUG-IN 2 PLUG-IN 3 PLUG-IN 4 original. INSERT 2 LEGACY This is the standard EQ that has been provided on Yamaha digital mixers since the PM1D and PM5D. INSERT 1 DIRECT OUT LEVEL/...
  • Page 19 DIRECT OUT The available dynamics types include: DIRECT OUT LEGACY COMP This is the standard compressor that has been provided on Yamaha PRE FILTER LEVEL digital mixers since the PM1D and PM5D. PRE EQ...
  • Page 20 If channels are paired, the level response of their balance will be nominal at center and +3 dB at far left or right. If two channels are paired, all of their parameters except for delay are linked. Library The “INPUT CHANNEL LIBRARY” lets you store and recall various input channel parameters. RIVAGE PM10 Operation Manual...
  • Page 21: Output Channels

    1/12 octave steps, but if you need more precise adjustment, you can set it in 1/24 octave steps. Band 1 can be switched to L SHELF (Low Shelving) and band 8 can be switched to H SHELF (High Shelving). The selectable EQ types are the same as for input channels (page 18). RIVAGE PM10 Operation Manual...
  • Page 22 MIX buses can be either the FIXED type whose send level is fixed or the VARI type whose send level is variable; you can switch each odd/even-numbered pair to either type. Library The “OUTPUT CHANNEL LIBRARY” lets you store and recall various output channel parameters. RIVAGE PM10 Operation Manual...
  • Page 23: Matrix Bus

    GATE and COMP. Two types of compressor are provided: LEGACY COMP and COMP 260. Two sets of dynamics parameter settings (A and B) can be saved for convenient comparison. The selectable dynamics types are the same as for input channels (page 19). RIVAGE PM10 Operation Manual...
  • Page 24: Stereo Bus

    GATE and COMP. Two types of compressor are provided: LEGACY COMP and COMP 260. Two sets of dynamics parameter settings (A and B) can be saved for convenient comparison. The selectable dynamics types are the same as for input channels (page 19). RIVAGE PM10 Operation Manual...
  • Page 25 STEREO B can be set to MONO. If it is set to MONO, the same signal is sent to L and R of STEREO This is also used as the CENTER channel of LCR. If it is set to MONO, the same signal is sent to L and R of STEREO B. RIVAGE PM10 Operation Manual...
  • Page 26: I/o Unit Section

    MIX 1-72 RY16-AE METER DELAY (MAX1000ms) GAIN TRIM OUTPUT ST OUT ST A/B PATCH MY Card Slot MY-XXX METER MATRIX OUT DELAY MATRIX (MAX1000ms) GAIN TRIM 1-36 HY Card Slot HY-XXX METER CUE OUT MONITOR MONITOR OUT RIVAGE PM10 Operation Manual...
  • Page 27: Delay Compensation

    Delay caused by inserts in input channels (example) Before compensation After compensation Delay Compensation Insert1 10 samples samples 10 samples 104 samples 10+94 Insert1 Insert2 52 samples 52 samples samples 104 samples 104 samples 52+52+0 RIVAGE PM10 Operation Manual...
  • Page 28 Monitor assignments and on/off switching can also be assigned to a USER DEFINED key. Monitor circuit structure This consists of three channels: L-channel, R-channel, and CENTER channel. RIVAGE PM10 Operation Manual...
  • Page 29 Allows you to delay the cue signal. You can specify up to 1000 msec. MONITOR OUT, CUE OUT, or PHONES OUT for auditioning. The RIVAGE PM10 system provides two cue outputs, CUE A and CUE B. INSERT A plug-in, GEQ, or PEQ can be inserted. This is a single insert point which is fixed at PRE EQ...
  • Page 30 [CUE] key is pressed is output, and the other channels are muted. The signal of a channel whose [CUE] key is pressed can also be monitored from the CUE OUT The RIVAGE PM10 features two oscillators that output individual sine waves with different jacks, MONITOR OUT jacks, and PHONES jack.
  • Page 31 • Talkback dimmer for MIX, MATRIX, and STEREO Temporarily attenuates the volume of each MIX, MATRIX, and STEREO bus output signal so that excessive output from these buses will not make the talkback inaudible. RIVAGE PM10 Operation Manual...
  • Page 32: Mute Groups

    DCA/Mute Groups GEQ/PEQ The RIVAGE PM10 system provides 24 DCAs and 12 mute groups. A group name can be assigned The RIVAGE PM10 system provides 31-band GEQ, Flex15 GEQ, and 8-band PEQ. Each type can be to each DCA and mute group.
  • Page 33 Plug-in type Explanation number tempo The RIVAGE PM10 system provides 43 types of plug-in, including the Rupert EQ 773 and Rupert usable* function Comp 830 designed in a collaboration with Rupert Neve Designs, and the VSS4HD and NonLin 2 A 2-in/2-out reverb algorithm that provides a –...
  • Page 34 Stereo reverb effect by the TC Electronic. As a – gate reverb that uses an envelope filter and does NonLin 2 not require a trigger, this can be used in a variety of creative applications. RIVAGE PM10 Operation Manual...
  • Page 35  RTA display screen in EQ settings RTA (Realtime Analyzer) The RIVAGE PM10 system provides a 121-band realtime analyzer (also known as a spectrum analyzer). The RTA can be displayed in a dedicated RTA screen, or displayed in the GEQ/PEQ settings screen or EQ settings screen.
  • Page 36 The RIVAGE PM10 system supports WAV (uncompressed PCM) and MP3 (MPEG-1 Audio Layer- * The number of channels available for recording and playback varies depending on the specifications of 3) file formats for recording and playback.
  • Page 37: During Recording

    Dante network Record Playback Computer with Computer with Computer with AIC128-D card AIC128-D card AIC128-D card installed installed installed DAW software DAW software DAW software (such as Nuendo Live) (such as Nuendo Live) (such as Nuendo Live) RIVAGE PM10 Operation Manual...
  • Page 38 • Each channel can individually be set to SAFE when switching to virtual sound check. This allows a virtual sound check that mixes playback from the recorder with actual stage inputs. • The virtual sound check patching that you specify can be saved in the “Recording Patch Library. ” RIVAGE PM10 Operation Manual...
  • Page 39 The RIVAGE PM10 system can use MIDI to perform the following operations. • Program Change transmission and reception When you recall a specific scene on the RIVAGE PM10 system, a Program Change message of the corresponding number can be transmitted to an external device. Conversely, the corresponding scene can be recalled when the corresponding Program Change message is received from an external device.
  • Page 40 For each bay, there are 12 custom fader banks that allow you to combine channels regardless of their type. The RIVAGE PM10 system lets you customize the working environment to your preferences. The main customizations are as follows. • USER DEFINED KEYS You can assign functions to the top panel USER DEFINED keys, and use them to execute those functions.
  • Page 41 MIXING DATA Settings Files  Head amp settings System settings data of a system constructed with the RIVAGE PM10 can be saved on a USB flash  INPUT CH Input channel mixing data drive as a settings file. The settings file will have an extension of “.PM10ALL. ”...
  • Page 42 Patch library settings FADE TIME Fade time library settings FOCUS Focus library settings RECALL SAFE Recall safe library settings DIRECT OUT Direct out library settings DCA library settings MUTE GROUP Mute group library settings INSERT INSERT library settings RIVAGE PM10 Operation Manual...
  • Page 43 LIBRARY RECALL SAFE FOCUS LIBRARY FILTER LIBRARY INPUT, MIX (ST), MATRIX, NAME LIBRARY STORE/UPDATE STORE Current MIX Data Overwrite  [UPDATE] INPUT, MIX (ST), MATRIX, Create New  [STORE] DIRECT OUT, RECORDING PATCH LIBRARY CH. LIBRARY RIVAGE PM10 Operation Manual...
  • Page 44 CONTENTS Conceptual Diagram of Memory The scene memories of the RIVAGE PM10 system hold mixing data such as channel fader levels and In other words, only channels/parameters that are in Focus and are not in Recall Safe will be EQ, as well as all of the following: recalled.
  • Page 45: Scene Memory

    The settings of the Fade function can be made independently for each scene. On the RIVAGE PM10 system, scene numbers consist of an integer portion and a decimal portion, and can be assigned as desired. One way of organizing scenes would be to create integer-numbered ...
  • Page 46: Other Convenient Functions

    You can temporarily prohibit console surface operation in order to prevent unwanted operation. RIVAGE PM10 system provides two types of fader calibration function: “Motor Drive Calibration” This setting completely disables operations of the panel and touch screen, so that controls cannot be which automatically optimizes the fader motor movement, and “Positioning Calibration”...
  • Page 47 Yamaha Pro Audio global website: http://www.yamahaproaudio.com/ Yamaha Downloads http://download.yamaha.com/ Manual Development Department © 2015 Yamaha Corporation Published 09/2015 MW-A0...
