6.2 Second paper cassette

Packaging contents:

1. Optional paper cassette ...................................1
2. Second cassette back cover ............................1
3. Screws ............................................................5
4. Paper size label ...............................................1

Installation

1. Turn the machine off and unplug the power cord.

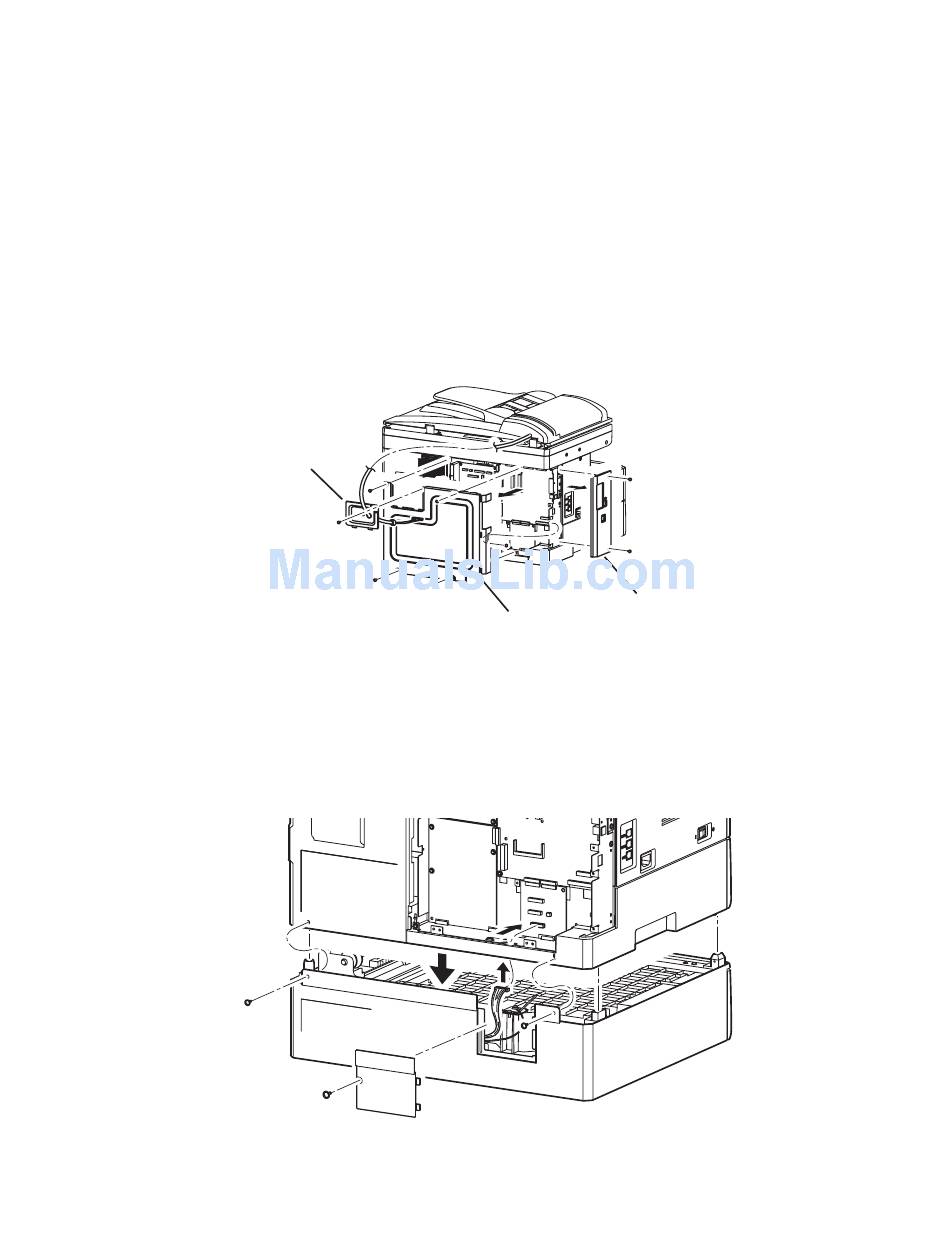

2. Remove the covers.
1) Remove the connect cover screw and the cover.
2) Unplug the harness that is going through the connect cover.
3) Remove the two screws and the option cover.
4) Remove the five screws and the shield cover.
Connect cover
3. Set the machine on top of the optional cassette.
Note: Make sure the machine is lined-up with the second cassette before you attempt to set the
machine down.
4. Slide the harness through the machine and attach the connector (P93).
5. Connect the backside of the machine using two screws.
6. Attach the backside of the second cassette using one screw.
Option cover
Shield cover
