THERMISTOR/ THERMO

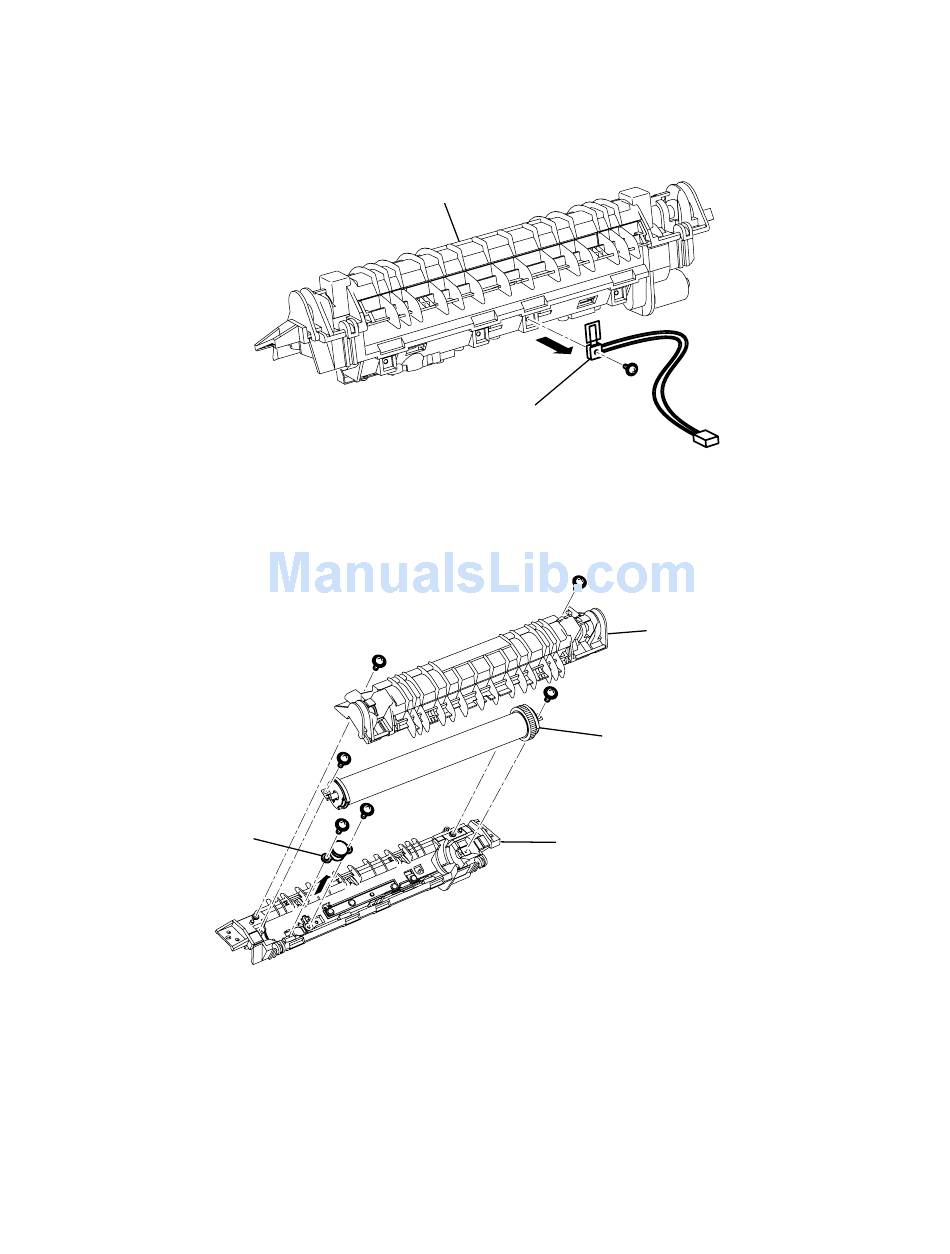

1) Open the Cover jam access.
2) Remove the Printer fuser. (See page 5-52)
3) Remove the Sensor thermo mounting screw, and then remove the Thermistor.
4) Remove two Frame fuser outer mounting screws, and then remove the Frame fuser outer.
5) Remove two Roller heat mounting screws, and then remove the Roller heat.
6) Remove two Thermo mounting screws, and then remove the THERMO.
Thermo
Printer fuser
Sensor thermo
Frame fuser inner
5-53 5-53
Frame fuser outer
Roller heat
