PCB INVERTER (MFX-1330)

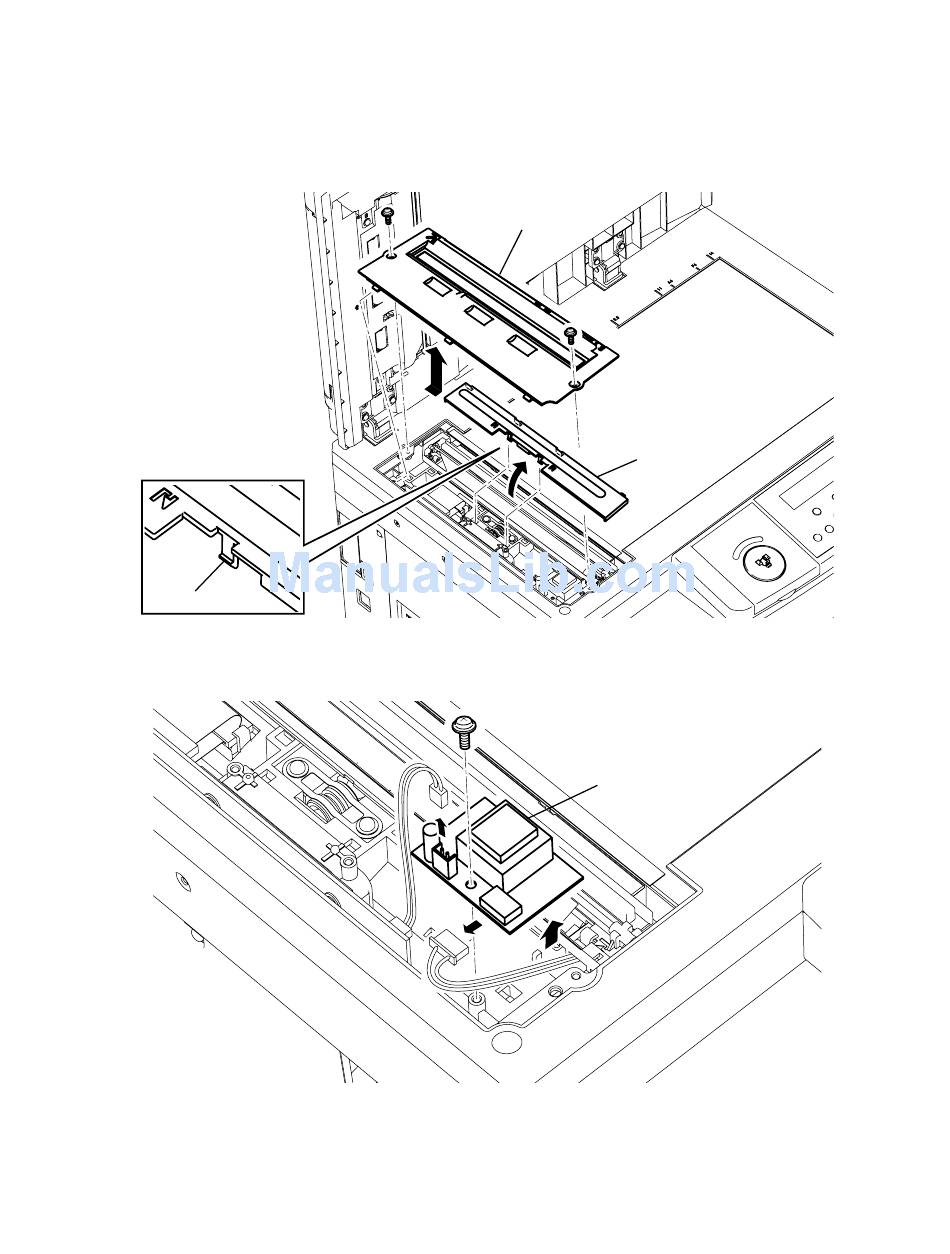

1) Open the Cover platen.
2) Remove two Cover contact mounting screws, then release three locking tabs, and then remove the Cover
contact.
3) Remove two Cover lens locking snap fits, and four locking tabs, and then remove the Cover lens.
Snap fit
4) Remove the PCB INVERTER mounting screw, then disconnect two connectors and two locking tabs, and
then the PCB INVERTER.
Cover contact
CN1
CN2
5-17 5-17
Cover lens
PCB INVERTER
