5.3.14 Cleaning the MIRRORS A, B and C

For MFX-1330
1) Remove the Cover contact. (See page 5-17)
2) Lift the front of the Frame scanner and remove the Cover lens and Case lamp.
For F-300
1) Remove the Cover ADF base. (See page 5-7)
2) Remove the Cover top PPF. (See page 5-13)
3) Remove the Cover lens.

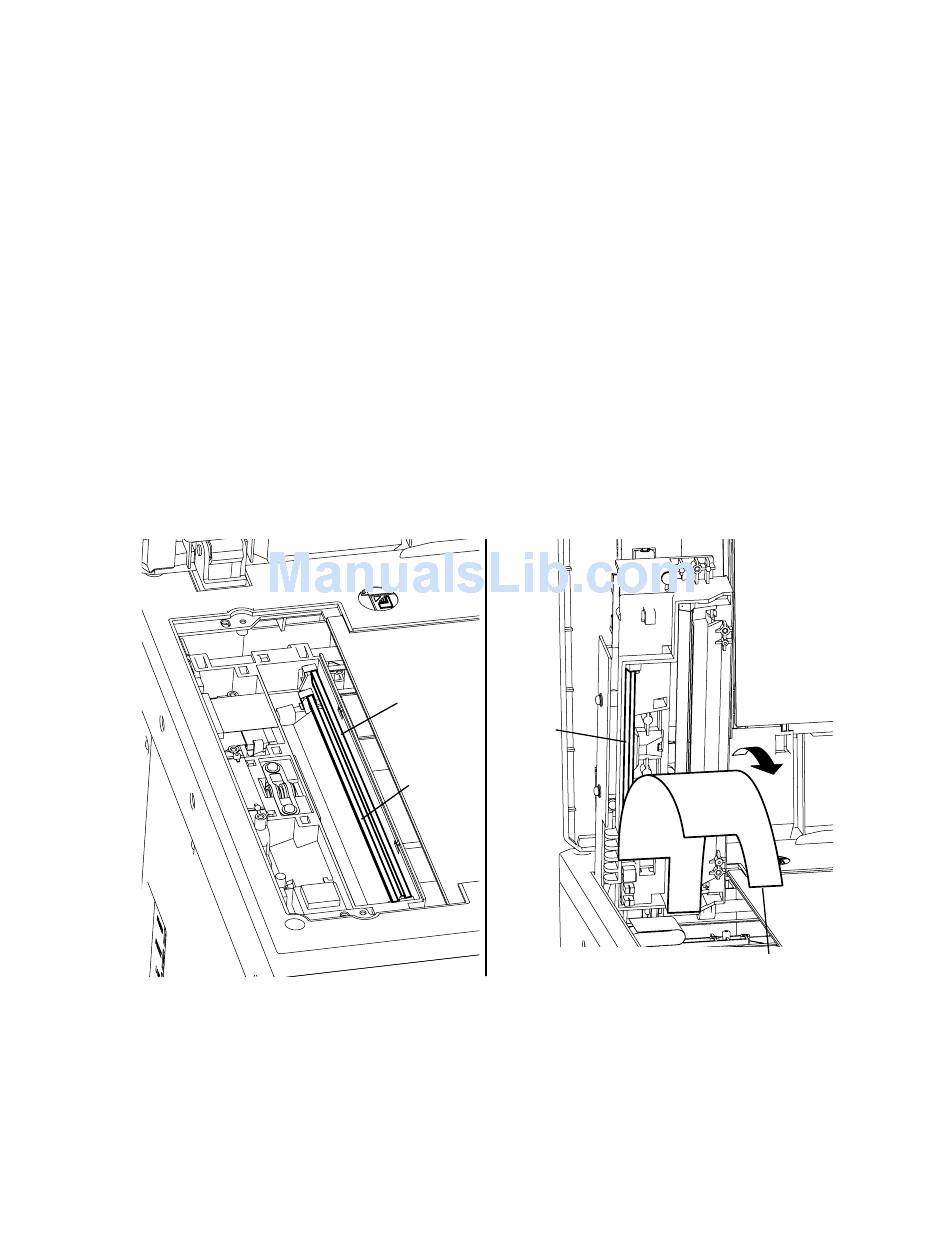

Now the mirrors A and C are accessible.
1) Clean mirrors A and C.
2) Peel the Cover scanner off the back of the Frame scanner.
3) Now the mirrors B are accessible. Clean mirrors.
Mirror A
Mirror B
Mirror C
5-84 5-84
Cover scanner
