SENSOR TRAYS

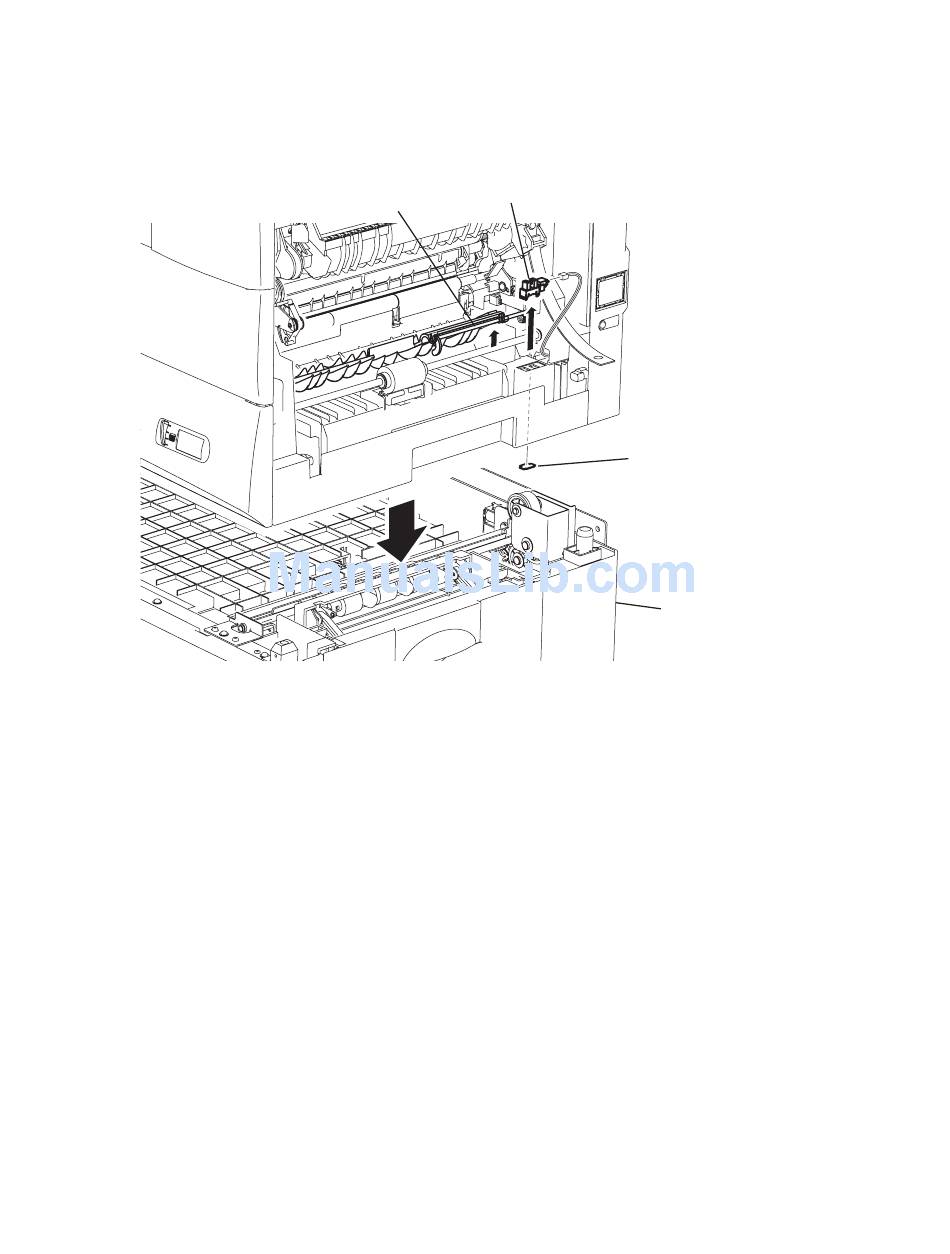

1) Remove the Cover jam access.
2) Separate the Chassis cassette 2nd from the body, and remove the Sensor stopper from behind.
3) Remove the Sensor TRAYS while pulling up the Feeler MP.
TRAYS
Feeler MP
5-49 5-49
Sensor stopper
Chassis cassette 2nd
