PCB PANEL 1

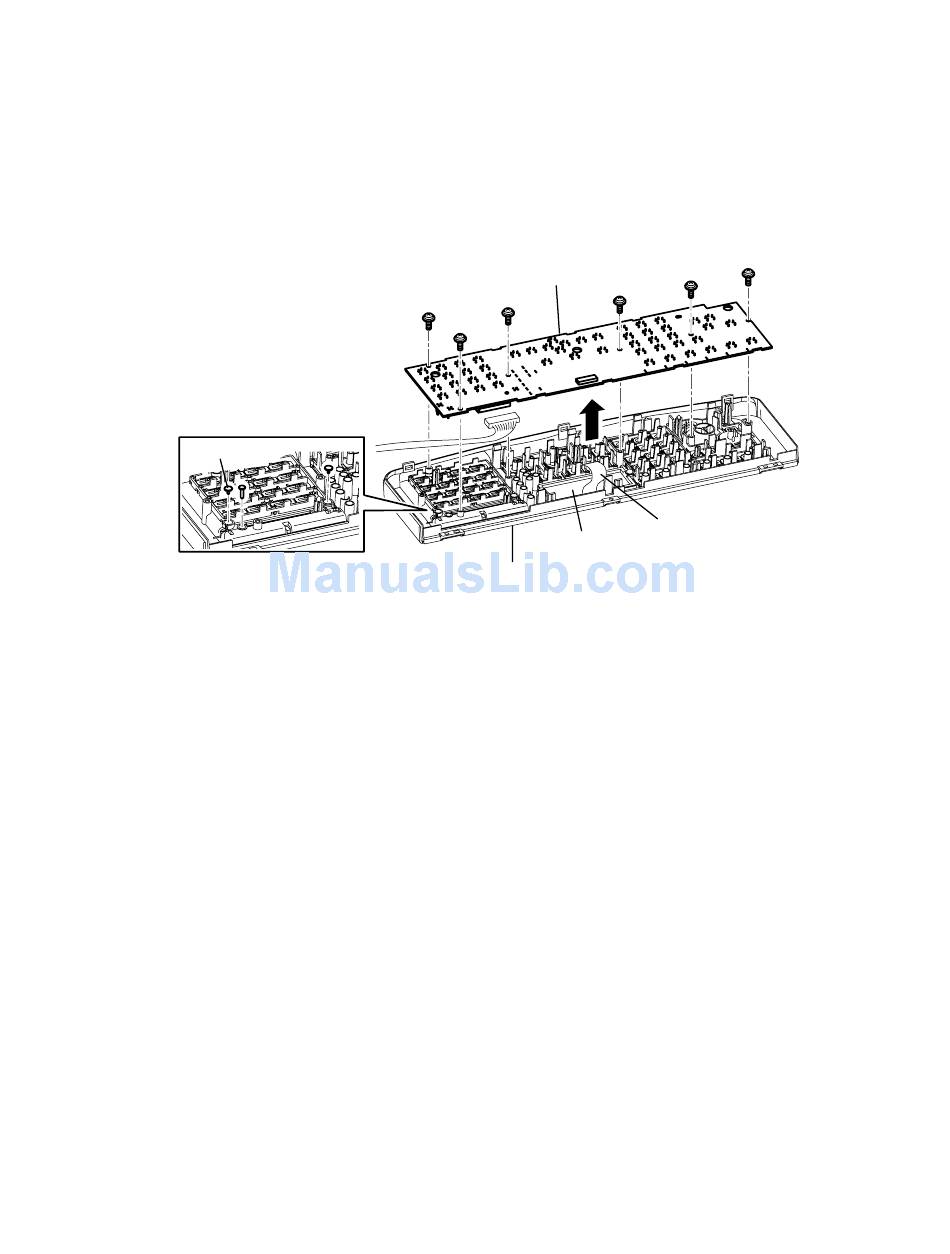

1) Remove the Cover platen (MFX-1330) or Cover ADF base (F-300). (See page 5-7)
2) Remove the Cover panel.
3) Remove six PCB PANEL 1 mounting screws, and then release eight locking tabs.
4) Disconnect the connector on the PCB PANEL 1.
5) Disconnect the Film harness of the LCD, and then remove the PCB PANEL 1.
NOTE: After removing the PCB PANEL 1, do not turn over the Cover panel. Otherwise the Pin sensor may fall off.
Pin sensor
( See page 5-13)
H H
Cover panel
5-16 5-16
PCB PANEL 1
P50
Film harness
LCD
