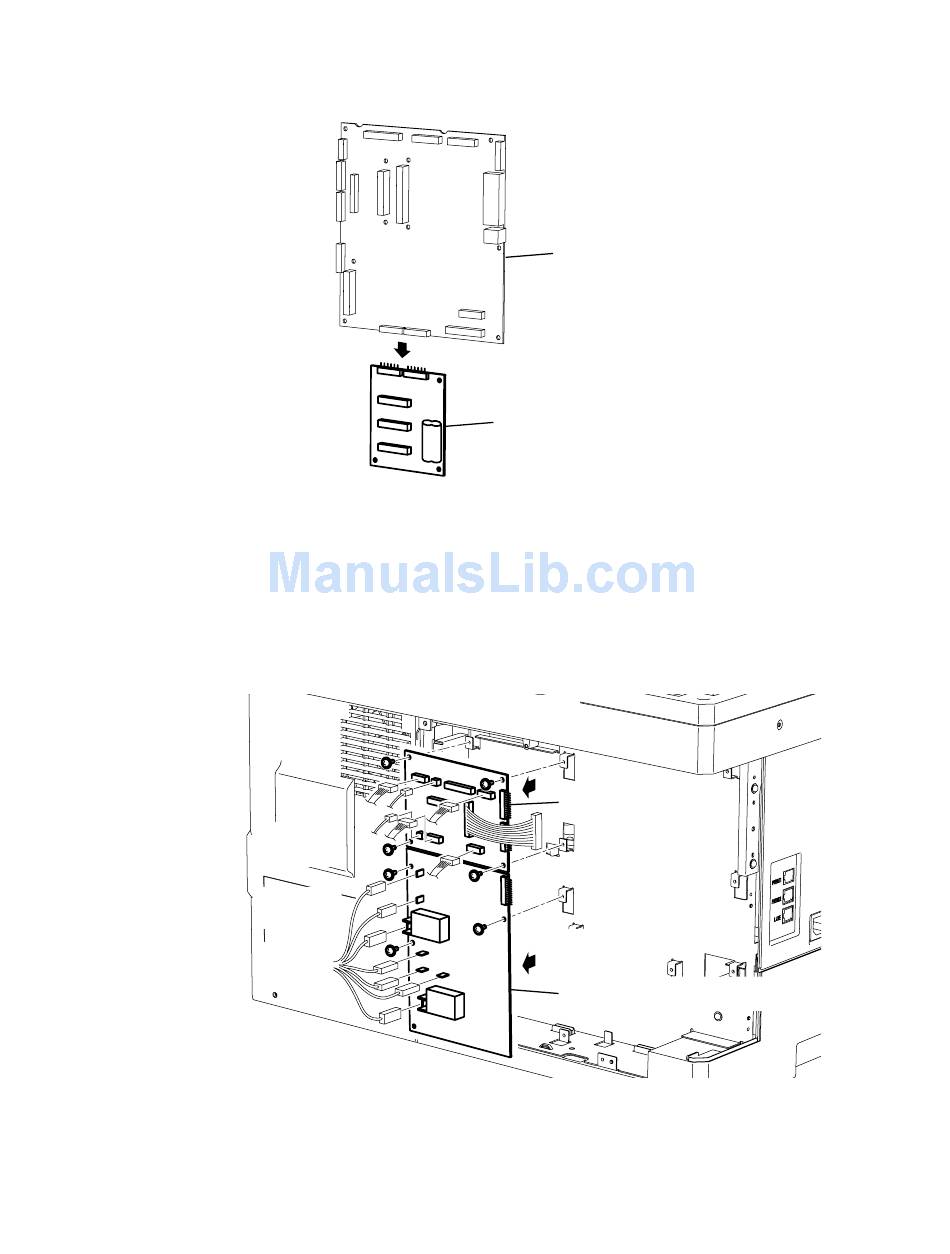

PCB CONNECT B

1) Remove the PCB MAIN.
2) Separate the PCB CONNECT B.

PCB CONNECT A / POWER-SUPPLY

1) Remove the PCB MAIN.
2) Disconnect seven connectors on the PCB CONNECT A.
3) Remove four PCB CONNECT A mounting screws, and then remove the PCB CONNECT A.
4) Disconnect seven connectors on the POWER-SUPPLY.
5) Remove three POWER-SUPPLY mounting screw, and then remove the POWER-SUPPLY.
( See page 5-20)
H H H H
( See page 5-20)
H H H H H H
5-21 5-21
PCB MAIN
PCB CONNECT B
PCB CONNECT A
POWER-SUPPLY
