Muratec MFX-1330 Field Engineering Manual page 249

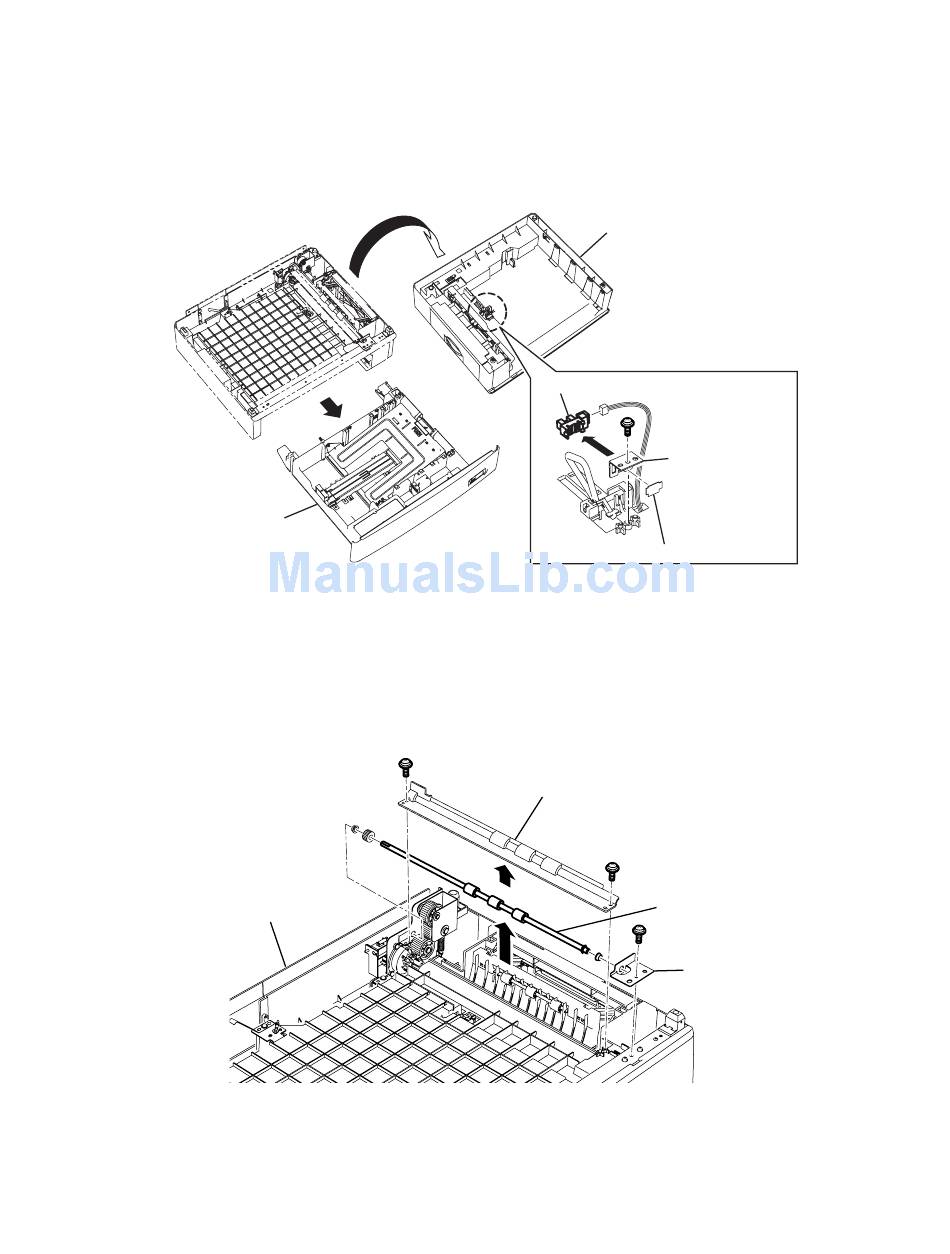

SENSOR PES2
1) Separate the Chassis cassette 2nd from the Main frame.
2) Pull out the Cassette 2nd.
3) Turn over the Chassis cassette 2nd.
4) Remove the Bracket sensor mounting screw, and then remove the Bracket sensor.
5) Remove the Sensor stopper and connector, and then remove the Sensor PES2.
Cassette 2nd
ROLLER FEED 2ND (2nd CST)
1) Separate the Chassis cassette 2nd from the Main frame.
2) Remove two Guide paper 2nd CST mounting screws, and then remove the Guide paper 2nd CST.
3) Remove the Plate frame F mounting screw, and then remove the Plate frame F.
4) Remove the ROLLER FEED 2ND.
Chassis cassette 2nd
Chassis cassette 2nd
PES2
Sensor stopper
Guide paper 2nd CST
5-59 5-59
Bracket sensor
Roller feed 2nd
Plate frame F
