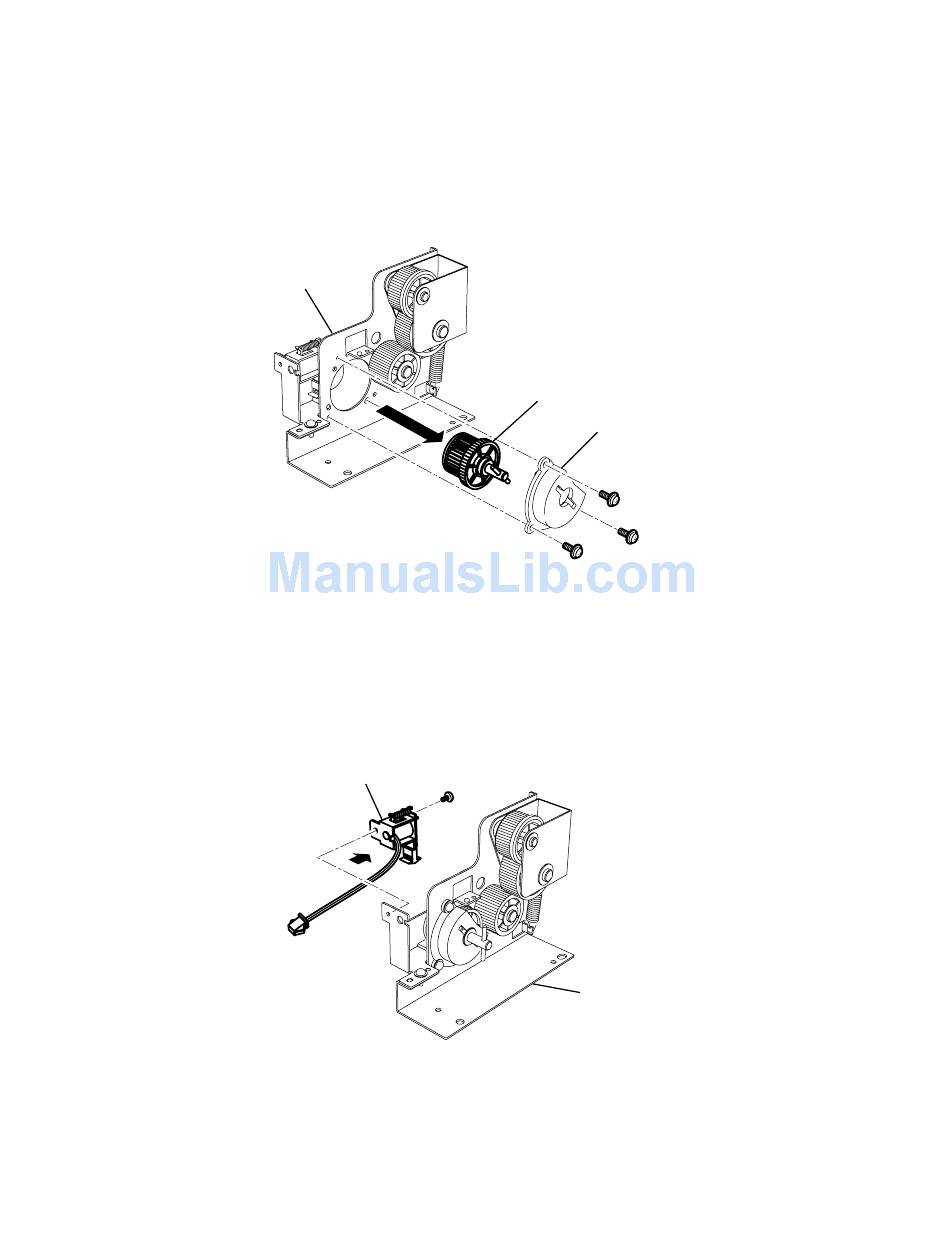

SPRING CLUTCH (2nd CST)

1) Separate the Chassis cassette 2nd from the Main frame.
2) Pull out the Cassette 2nd.
3) Remove the Roller feed 2ND. (See page 5-59)
4) Remove the Plate frame B. (See page 5-60)
5) Remove three Holder gear 2ND mounting screws, and then remove the Holder gear 2ND.
6) Remove the SPRING CLUTCH.
Plate frame B

SOLENOID (2nd CST)

1) Separate the Chassis cassette 2nd from the Main frame.
2) Pull out the Cassette 2nd.
3) Remove the Roller feed 2ND. (See page 5-59)
4) Remove the Plate frame B. (See page 5-60)
5) Remove the Solenoid mounting screw, and then remove the SOLENOID.
Solenoid
5-62 5-62
Spring clutch
Holder gear 2ND
Plate frame B
