6.7 Second paper cassette

Packaging contents:

(1) Second cassette
(2) Two screws

Installation

1. Turn off your fax machine.

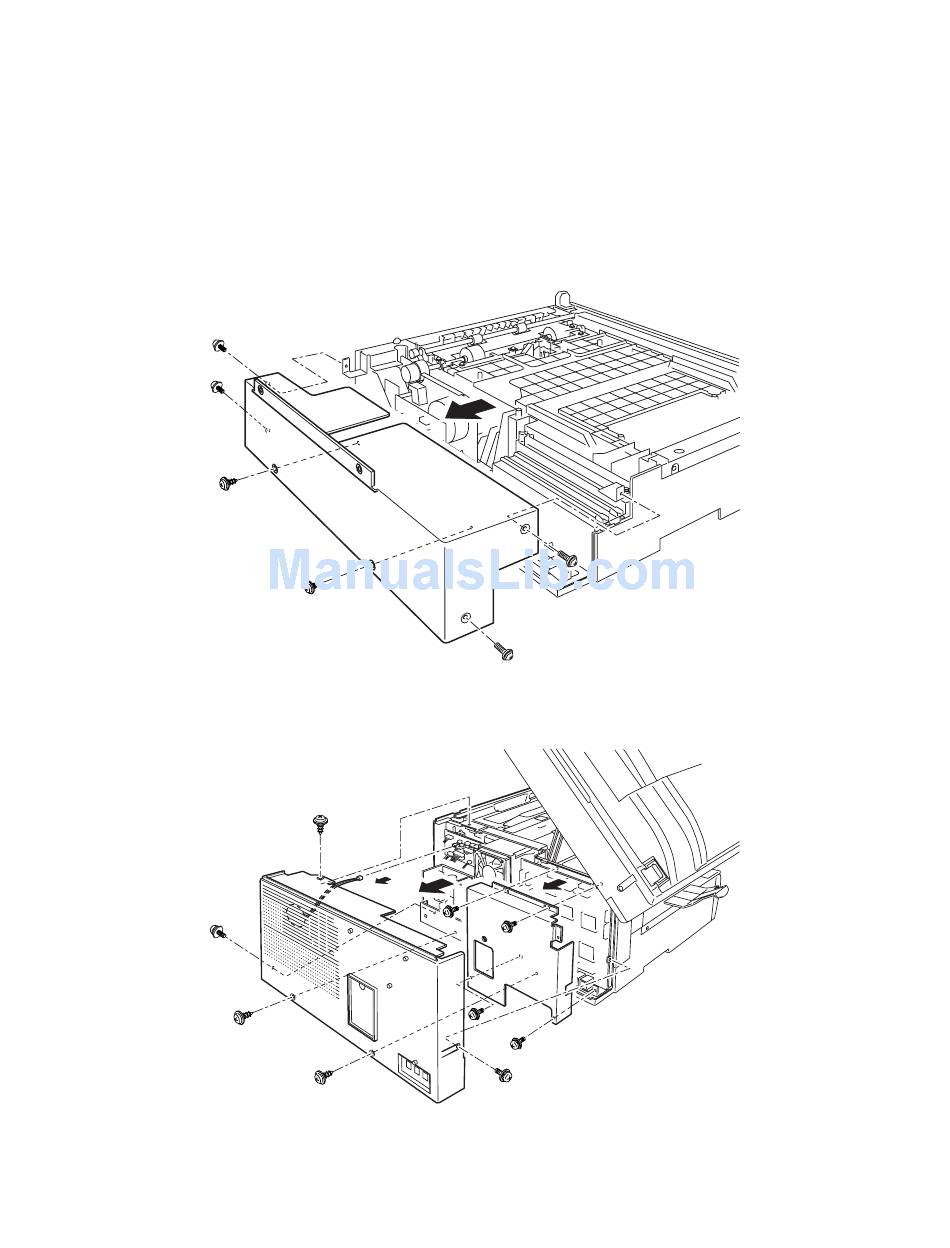

2. Remove six mounting screws holding the rear cover of the second cassette in place. Then remove the
rear cover of the second cassette.
3. Open the top cover. Remove five mounting screws holding the rear cover of the fax machine in place.
Disconnect the speaker connector, and then remove the rear cover of the fax machine.
4. Remove four mounting screws holding the shield plate in place. Then remove the shield plate.
6-22
