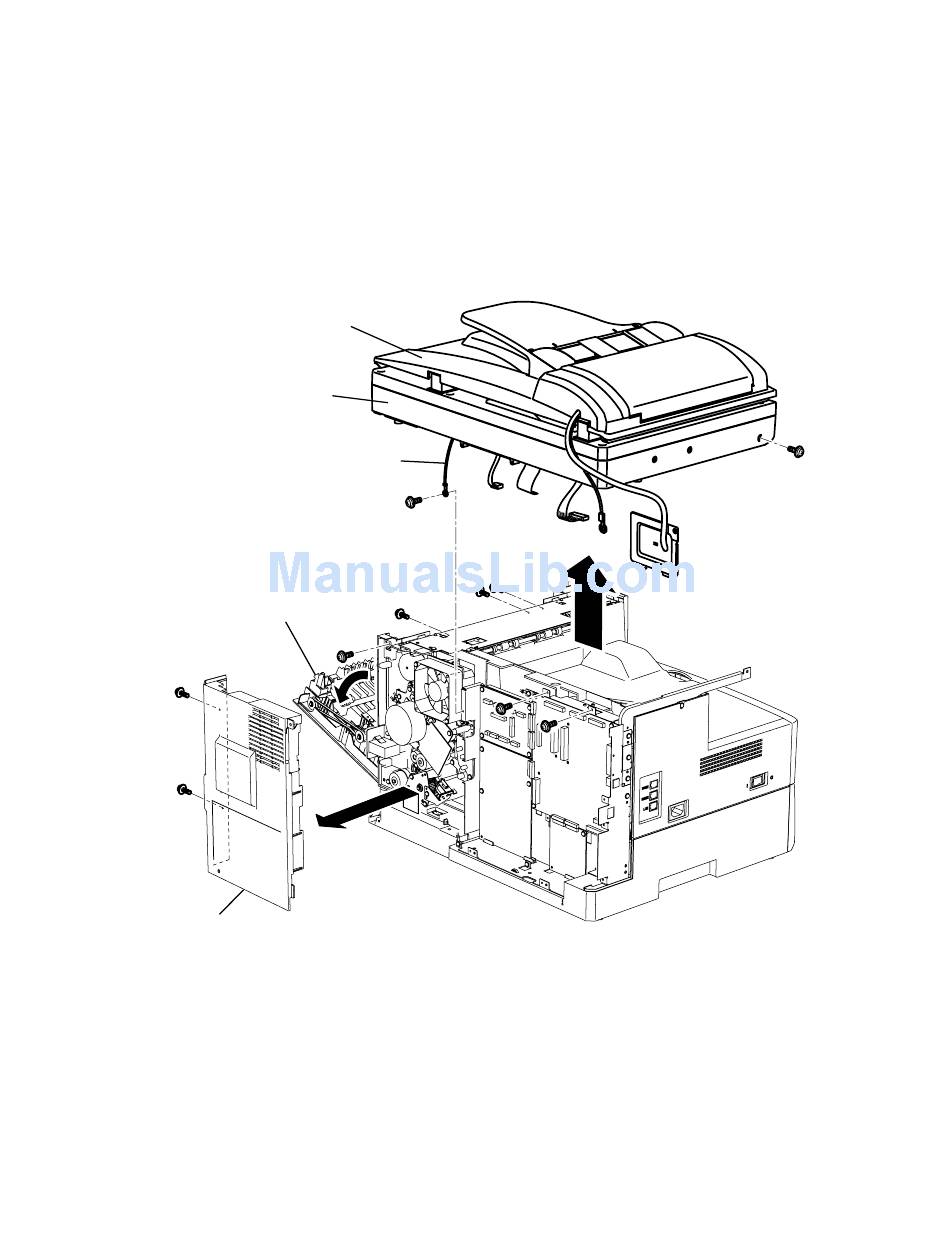

CHASSIS FBS

1) Remove the Cover connect.
2) Remove the Cover option.
3) Remove the Cover shield.
4) Remove two Cover back mounting screws, and then remove Cover back.
5) Open the Cover jam access.
6) Disconnect three connectors and remove the Ground wire.
7) Remove seven Chassis FBS mounting screws, and then remove the CHASSIS FBS.
Cover platen
Chassis FBS
Cover jam access
Cover back
( See page 5-6)
H H H H H H H H
( See page 5-20)
H H H H H H H H H H
( See page 5-20)
H H H H H H H H H H H H
Ground wire
5-32 5-32
