SPRING CLUTCH

1) Remove the Cover option.
2) Remove the Cover shield.
3) Remove the Cover back.
4) Remove two Ground wire mounting screw, and then remove the Ground wire.
5) Remove three Stay pickup mounting screw, and then remove the stay pickup.
6) Remove the SPRING CLUTCH.
( See page 5-20)
H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H
( See page 5-20)
H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H
( See page 5-32)
H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H

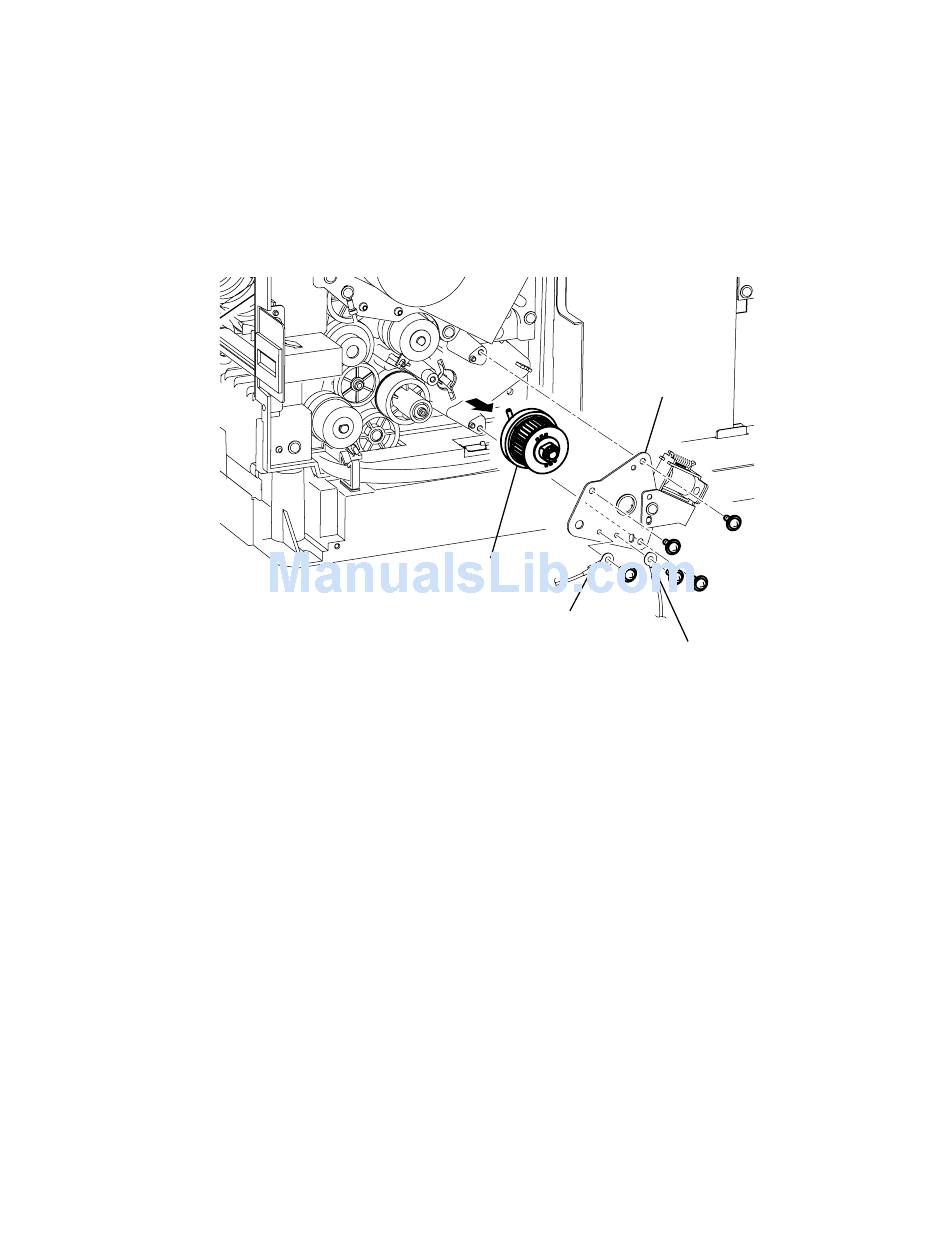

Spring clutch
5-44 5-44
Stay pickup
Ground wire
Ground wire
