6.3 Page Counter

The mechanical counter shows the total number of pages the machine prints.
Note: This device counts up to 999,999 pages. If more pages are printed, the counter resets to zero and
begins counting the new pages from that point.

Packaging contents:

1. Mechanical counter .........................................1
2. Relay cable .....................................................1
3. Screw ..............................................................1

Installation

1. Turn the machine off and unplug the power cord.

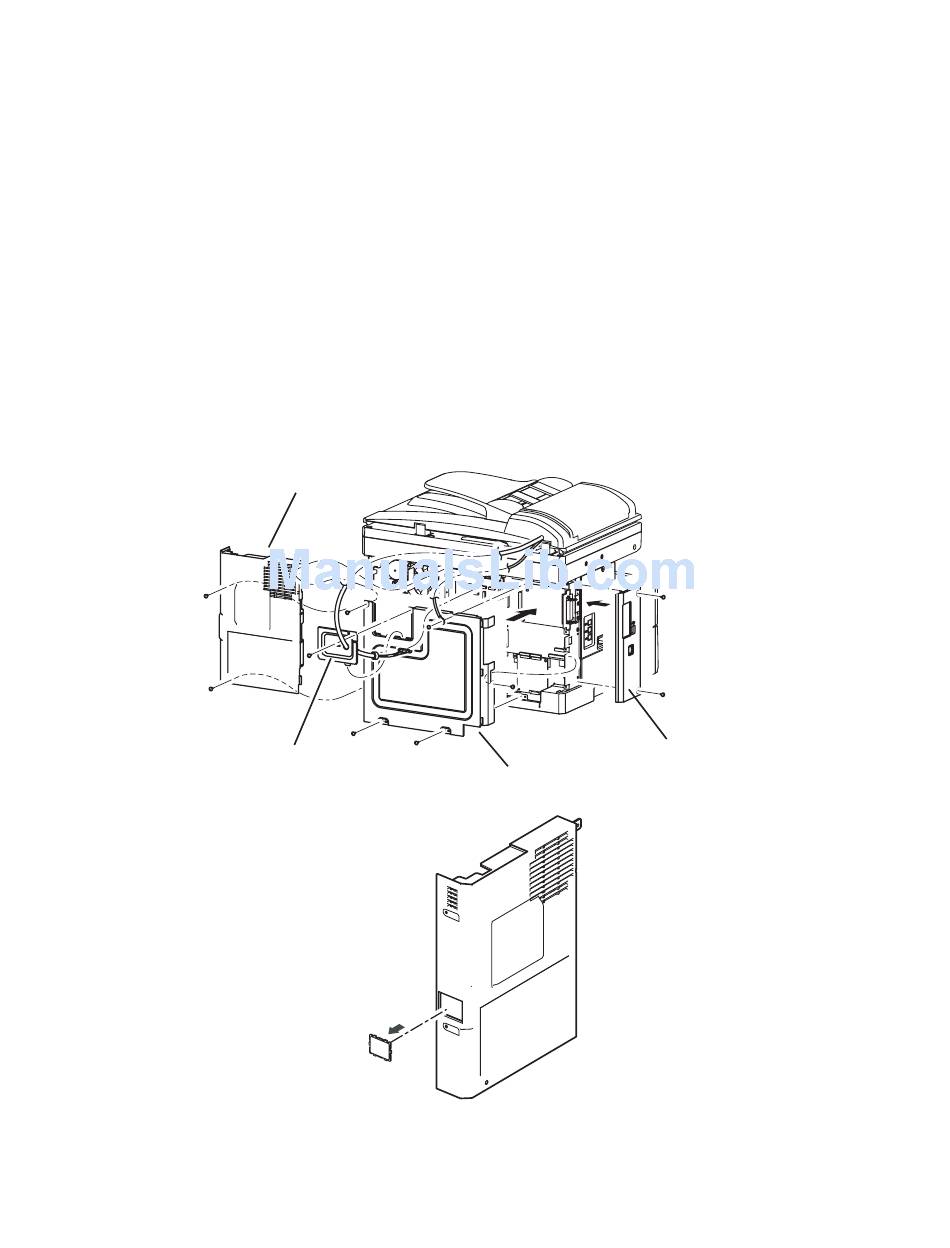

2. Remove the covers.
1) Remove the connect cover screw and the cover.
2) Unplug the harness that is going through the connect cover.
3) Remove the two screws and the option cover.
4) Remove the five screws and the shield cover.
5) Remove the two screws and the back cover.
Back cover
Connect cover
3. Gently punch out the panel on the back cover.
Option cover
Shield cover
6-5
