FBS MOTOR (MFX-1330 only)

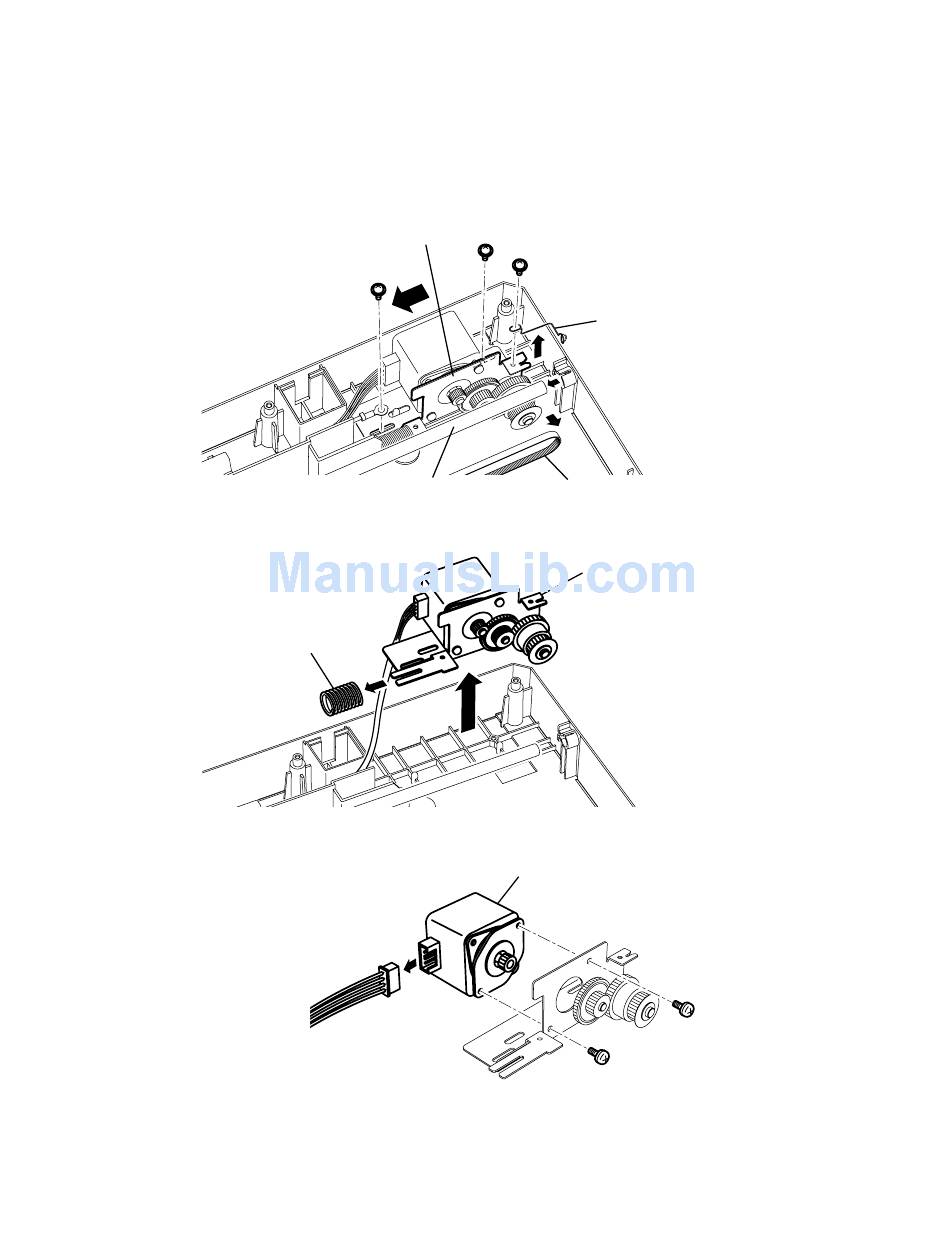

1) Remove the Cover platen.
2) Remove the Cover top.
3) Remove three Bracket motor FBS mounting screws.
4) Remove the Shaft guide, and then remove the spring C FG.
5) Slide the Bracket motor FBS, and then remove the belt.
6) Remove the Spring C tension, and then remove the Bracket motor FBS.
Spring C Tension
7) Remove two FBS motor mounting screw and disconnect the harness, and then remove the FBS MOTOR.
( See page 5-7)
H H H H H H H H H H H H H H H H H H H H H H H H H H
( See page 5-13)
H H H H H H H H H H H H H H H H H H H H H H H H H H H H
Bracket motor FBS
Shaft guide
P83
Spring C FG
Belt
Bracket motor FBS
FBS Motor
5-40 5-40
